Company That Manufacture Plastic Pipe Fitting Injection Mould/Cross-Tube/Collapsible Core

Name

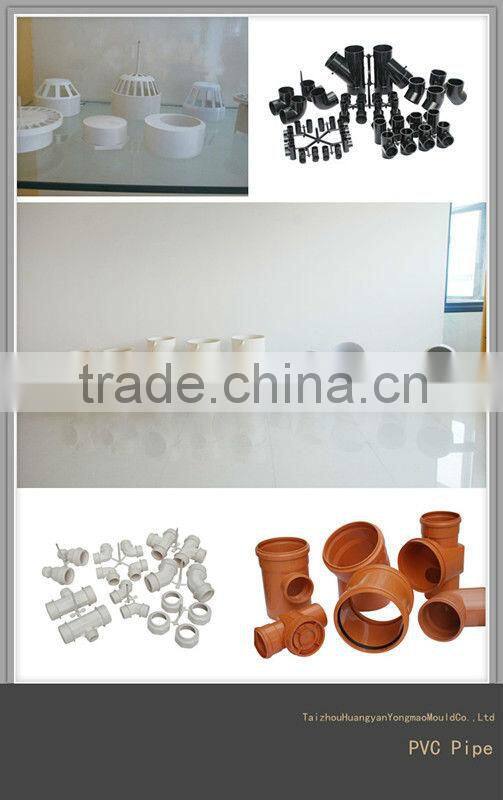

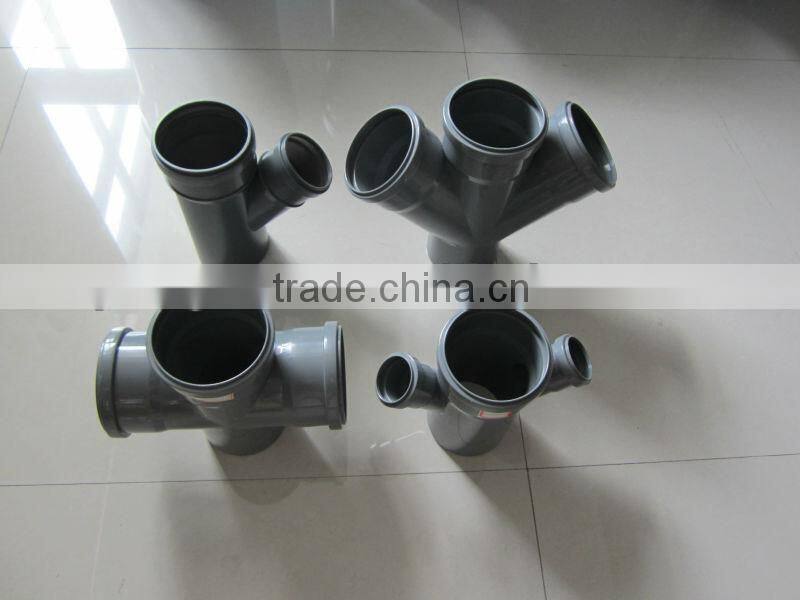

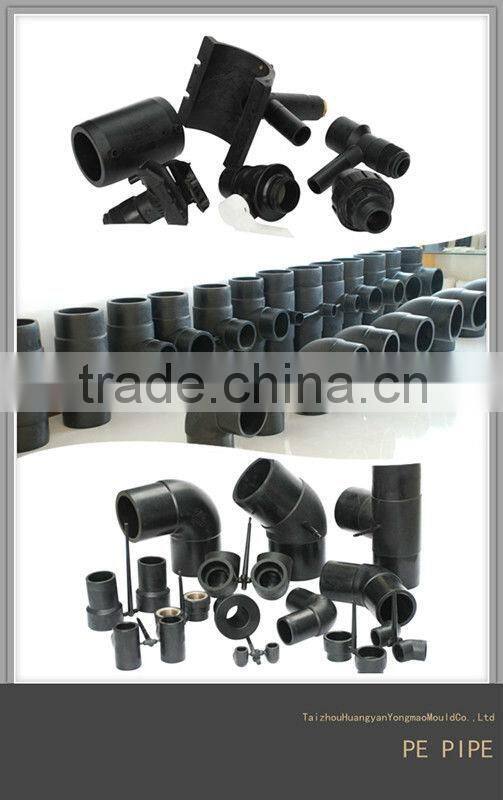

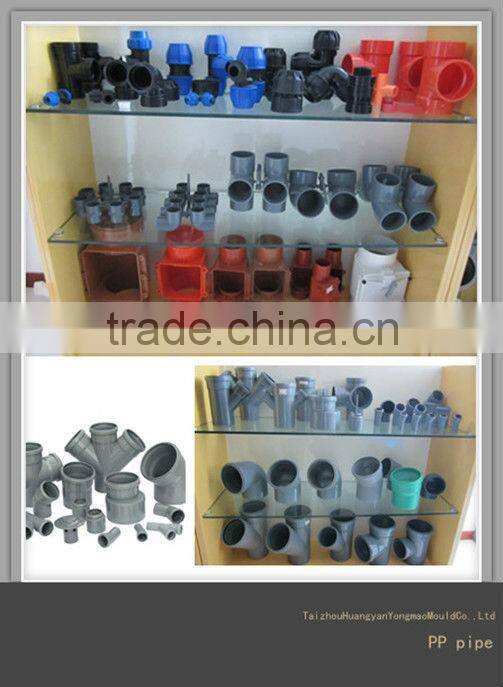

Pipe fitting mould

mould material

P20,H718,45#,2316…etc

Plastic material

PVC,PPR,PP.PE,ABS,POM,PPCR…etc

Steel of Cavity & Core

DIN1.2316/DIN1.2738/DIN1.2344 /M300/718/P20..etc

Steel of Mouldbase

S50C.LkM standard,HASCO,DME etc.

Nos of Cavity

1-n, or Customized

Hardness of Cavity & Core

42-45HRC

Hardness of Wear Parts

42-48HRC

Core pulling system

Motor /oil cylinder/ stripping plate, angel pin…etc

Mould Accessories

DME/HASCO Standard …

Cooling system

In core baffle cooling and in cavity plate chain drilling type cooling

Surface finish

Diamond polish,

Molding  life

500,000-1,200,000shots

Runner

Cold or Hot

1.Sample/Drawing

We need your detail require clearly.

2.Negotiation

Material,cavity,price,delivery time,payment term ,etc.

          ↓

3.Place order

According your own design or choice our design.

          ↓

4.Mould design

We will communicate&Exchange the opinion with you during making drawing

          ↓

5.Tooling mould

After customer approves the mould design will start making mould.

          ↓

6.Mould process

Provide photos for customer show them tooling process

          ↓

7.Sample confirm

Send you sample for conform it ,if not satisfied by customer.we modify mould .

          ↓

8.Delivery mould

Delivery mould after customer approve sample and arrange shipment.
