PP push-fit mould/ collapsible core mould

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Any port in China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YONGMAO
Shaping Mode	Plastic Injection Mould	Product Material	Steel
Product	Other, Mould for PP fittings

Product Description

Specifications

We produce PP collapsible core fitting moulds cover a large range from 25mm to 450mm.

Our mould will be adapted to the machine specified by customer and the capacity has
to match with the required shot weight, clamping force and mould space. The mould
design draft should be sent to customers for acceptance.

Features:

1)Use of high quality steel

2) Application: all types of plastic fitting moulds for sewage, drainage water, gas, electrical conduits and rain water gutter system

3) High quality, competitive price, good after-sales service

Mouldbase: Standardization
Use, whenever possible metric standards like LKM for all the mould components. (including guide
bushing, guide pin, ejector pin and so on)
2.2 Moudbase surface finishing
All plates should be painted with automotive paint blue or green to protect against the corrosion.
2.3. Cores & cavities
The cores, cavities and inserts made of stainless steel, hardened and tempered up to 45-48 HRC.
Surface finish: Mirror Finish-Diamond Polished
2.4 Core wedge blocks to be manufactured from P20 local steel and heat treatment by gas nitriding.
Wedge blocks need to be located in deep pockets to prevent movement.
2.5. Steel hardness in general:
It is good practice and necessary to have a difference of several points HRC hardness between
sliding steel mould parts to prevent pick up between the steel parts. For example any P20 core slides
or wear plates should be gas nitride.
(Steel material and final hardness certificate will be supplied with the molds)

Type of fitting	Mould for PP pipe fitting

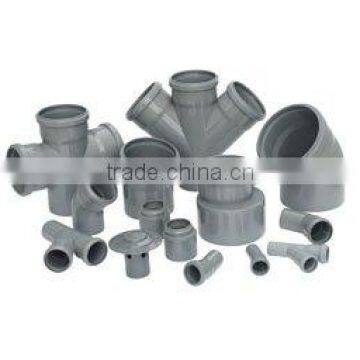

Description of goods (mold name)	PP collapsible fitting moulds (Elbow, coupler, tee, single Y, reducer)
No.of cavities	Multi-cavities
Steel for Mold base	Standardization DIN 1.1730
Steel for Core,cavity	Werkstoff - DIN1.2738 with Nitraded treatment
Mold components	HASCO/DME Standard spare parts
Core pulling system	Hydraulic cylinder/cam system
Mould life	1,000,000 shots
Runner type	Cold runner/hot runner, tunnel gate
Fitting standard	EN1451, DIN 19531
Working mode	Automatic mode, sprue separated from product during ejection
