Company That Manufacture Plastic PVC Injection Mould/Collapsible Core

Name

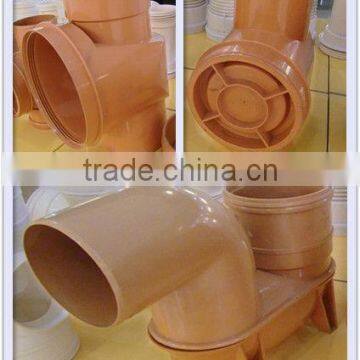

Pipe fitting mould

mould material

P20,H718,45#,2316…etc

Plastic material

PVC,PPR,PP.PE,ABS,POM,PPCR…etc

Steel of Cavity & Core

DIN1.2316/DIN1.2738/DIN1.2344 /M300/718/P20..etc

Steel of Mouldbase

S50C.LkM standard,HASCO,DME etc.

Nos of Cavity

1-n, or Customized

Hardness of Cavity & Core

42-45HRC

Hardness of Wear Parts

42-48HRC

Core pulling system

Motor /oil cylinder/ stripping plate, angel pin…etc

Mould Accessories

DME/HASCO Standard …

Cooling system

In core baffle cooling and in cavity plate chain drilling type cooling

Surface finish

Diamond polish,

Molding  life

500,000-1,200,000shots

Runner

Cold or Hot

1.Sample/Drawing

We need your detail require clearly.

2.Negotiation

Material,cavity,price,delivery time,payment term ,etc.

3.Place Order

According your own design or choice our design.

4.Mould Design

We will communicate&Exchange the opinion with you during making drawing

5.Tooling Mould

After customer approves the mould design will start making mould.

6.Mould Process

Provide photos for customer show them tooling process

7.Sample Confirm

Send you sample for conform it ,if not satisfied by customer.we modify mould .

8.Delivery Mould

Delivery mould after customer approve sample and arrange shipment.
