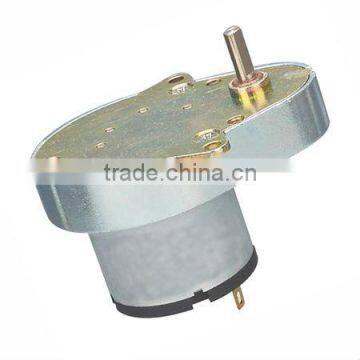

Low Current Electric DC Pear-shaped Gear Motor
US$ 5 - 15
/ Piece
100 Pieces(Min. Order)
- Shanghai; Ningbo
- T/T Credit Card
You May Like
-
42JB30K/35ZY60 6V 12V 24V Micro DC Spur Gear Motor
-
Micro DC Spur Gear Motor
-
3V 6V DC Micro Parallel Shaft Gear Motor
-
56JX234G1230/60ZY125-2420 IP55 24V 12V Low Rpm High Torque Electric DC Planetary Gear Motor
-
96ZY-2410/120JX705G3273 High Torque 12V, 24V DC Gear Motor for Swimming Pool Cover
-
80ZY/92JX 12V 24V Customized High Torque Electric DC Motor With Planetary Gearbox
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYD MOTOR;DONGZHENG MOTOR | |
| Model Number | Pear-shaped dc gear motor | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Motion Control, Universal | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, ISO9001 | Type | Gear Motor | |
| Torque | Up to 2.0N.m | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Other, Totally Enclosed, Enclosed | |
| Speed(RPM) | 1-999rpm | Output Power | Less than 5W | |
| Voltage(V) | 12V, 24V DC |
Product Description
Reduction ratio | 81.3 | 81.3 | 81.3 | 179 | 179 | 179 |
Length ( L ) mm | 41 | 41 | 41 | 24 | 24 | 24 |
Voltage VDC | 12 | 24 | 24 | 12 | 12 | 24 |
No-load speed RPM | 40 | 40 | 60 | 30 | 40 | 40 |
Rated speed RPM | 28 | 28 | 42 | 21 | 28 | 28 |
Rated torque kg.cm | 4.3 | 10.2 | 10.1 | 5.1 | 3.1 | 1.0 |
Rated Current A | 0.52 | 0.50 | 0.62 | 0.32 | 0.35 | 0.38 |
