S275 Europe quality standard & Big inventory Steel H-Beams
- 5000 Ton / Tons per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Grade | Q345B | |
| Technique | Other, Hot Rolled, Hot rolled | Thickness | 5~34mm | |
| Application | steel structure, Steel structure | Length | Less than 12m | |
| Standard | EN | Flange Width | 50~300mm | |
| Flange Thickness | 7~34mm | Web Width | 100~900mm | |
| Web Thickness | 5~18mm | Brand Name | Canglong | |
| Model Number | CLJTSHB0543 |
Product Description
Specifications
steel h-beams1.Good quality
2.ISO9001:2008
3.Low cost
4.Shrot delivery time
STEEL H BEAMS
| h(mm) | b(mm) | t1(mm) | t2(mm) | Theoretic Weight(kg/m) | |||
| Chinese Standard | Japanese Standard | ||||||
| 100 | 100 | 6 | 8 | 17.2 | 16.9 | ||
| 125 | 125 | 6.5 | 9 | 23.8 | 23.6 | ||
| 148 | 100 | 6 | 9 | 21.4 | 21.1 | ||
| 150 | 75 | 5 | 7 | 14.3 | 14 | ||
| 150 | 150 | 7 | 10 | 31.9 | 31.1 | ||
| 175 | 90 | 5 | 8 | 18.2 | 18 | ||
| 175 | 175 | 7.5 | 11 | 40.3 | 40.4 | ||
| 194 | 150 | 6 | 9 | 31.2 | 29.9 | ||
| 198 | 99 | 4.5 | 7 | 18.5 | 17.8 | ||
| 200 | 100 | 5.5 | 8 | 21.7 | 20.9 | ||
| 200 | 200 | 8 | 12 | 50.5 | 49.9 | ||
| 200 | 204 | 12 | 12 | 56.7 | 56.2 | ||
| 244 | 175 | 7 | 11 | 44.1 | 43.6 | ||
| 248 | 124 | 5 | 8 | 25.8 | 25.1 | ||
| 250 | 125 | 6 | 9 | 29.7 | 29 | ||
| 250 | 250 | 9 | 14 | 72.4 | 71.8 | ||
| 250 | 255 | 14 | 14 | 82.2 | 81.6 | ||
| 294 | 200 | 8 | 12 | 57.3 | 55.8 | ||
| 294 | 302 | 12 | 12 | 85 | 83.4 | ||
| 298 | 149 | 5.5 | 8 | 32.6 | 32 | ||
| 298 | 201 | 9 | 14 | 65.9 | 64.4 | ||
| 300 | 150 | 6.5 | 9 | 37.3 | 36.7 | ||
| 300 | 300 | 10 | 15 | 94.5 | 93 | ||
| 300 | 305 | 15 | 15 | 106 | 105 | ||
| 338 | 351 | 13 | 13 | 106 | |||
| 340 | 250 | 9 | 14 | 79.7 | 78.1 | ||
| 344 | 348 | 10 | 16 | 115 | 113 | ||
| 344 | 354 | 16 | 16 | 131 | |||
| 346 | 174 | 6 | 9 | 41.8 | 41.2 | ||
| 350 | 175 | 7 | 11 | 50 | 49.4 | ||
| 350 | 350 | 12 | 19 | 137 | 135 | ||
| 350 | 357 | 19 | 19 | 156 | |||
| 388 | 402 | 15 | 15 | 141 | 140 | ||
| 390 | 300 | 10 | 16 | 107 | 105 | ||
| 394 | 398 | 11 | 18 | 147 | 147 | ||
| 394 | 405 | 18 | 18 | 169 | |||
| 396 | 199 | 7 | 11 | 56.7 | 56.1 | ||
| 400 | 200 | 8 | 13 | 66 | 65.4 | ||
| 400 | 150 | 8 | 13 | 55.8 | 55.2 | ||
| 400 | 400 | 13 | 21 | 172 | 172 | ||
| 400 | 408 | 21 | 21 | 197 | |||
| 414 | 405 | 18 | 28 | 233 | 232 | ||
| 414 | 202 | 10 | 20 | 94.5 | 93.9 | ||
| 428 | 407 | 20 | 35 | 284 | 283 | ||
| 440 | 300 | 11 | 18 | 124 | 121 | ||
| 446 | 199 | 8 | 12 | 66.7 | 65.1 | ||
| 450 | 200 | 9 | 14 | 76.5 | 74.9 | ||
| 470 | 202 | 11 | 24 | 115.2 | |||
| 482 | 300 | 11 | 15 | 115 | 111 | ||
| 488 | 300 | 11 | 18 | 129 | 125 | ||
| 496 | 199 | 9 | 14 | 79.5 | 77.9 | ||
| 500 | 200 | 10 | 16 | 89.6 | 88.2 | ||
| 510 | 206 | 16 | 21 | 129 | |||
| 512 | 202 | 12 | 22 | 114 | |||
| 506 | 201 | 11 | 19 | 103 | 102 | ||
| 582 | 300 | 12 | 17 | 137 | 133 | ||
| 588 | 300 | 12 | 20 | 151 | 147 | ||
| 594 | 302 | 14 | 23 | 175 | 170 | ||
| 596 | 199 | 10 | 15 | 95.1 | 92.5 | ||
| 600 | 200 | 11 | 17 | 106 | 103 | ||
| 600 | 304 | 16 | 26 | 198 | 194 | ||
| 606 | 201 | 12 | 20 | 120 | 118 | ||
| 692 | 300 | 13 | 20 | 166 | 163 | ||
| 700 | 300 | 13 | 24 | 185 | 182 | ||
The Features and Advantages:
--- If bear the same press, then the H Beam can save 10%-15% material.
--- You can have more designs of the rooms if you use H Beam than concrete.
--- The H Beam is light than the concrete, so it is easy to carry and cut the cost.
--- The Building will be more stable, if it is built by H Beam, especially the places where earthquake usually happened.
--- The H Beam is environmentally friendly and reduce the Nuisance dusts.
--- The H Beam can save the real working time, because it is easy to carry and can be used in any weather

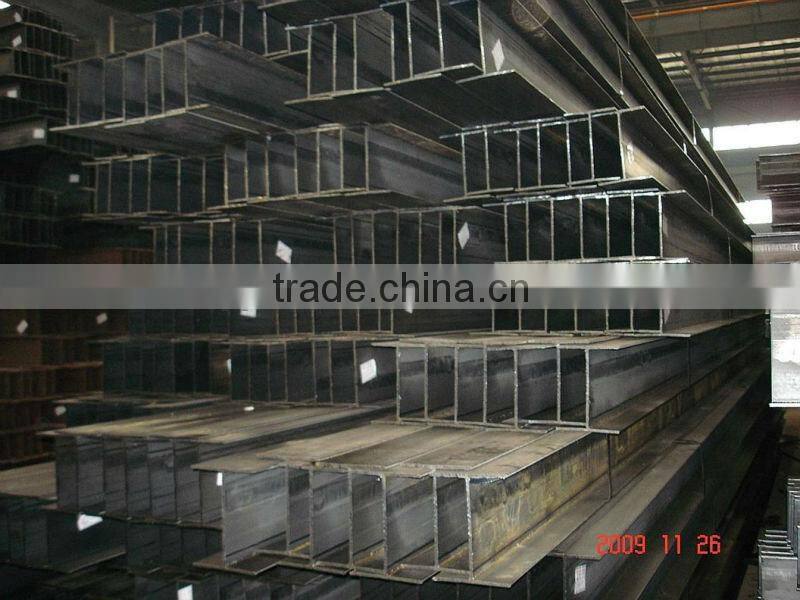

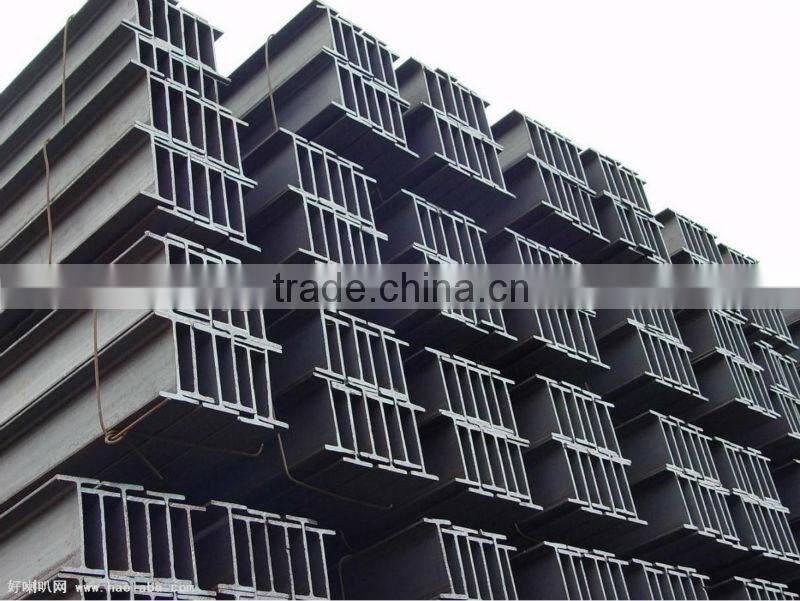

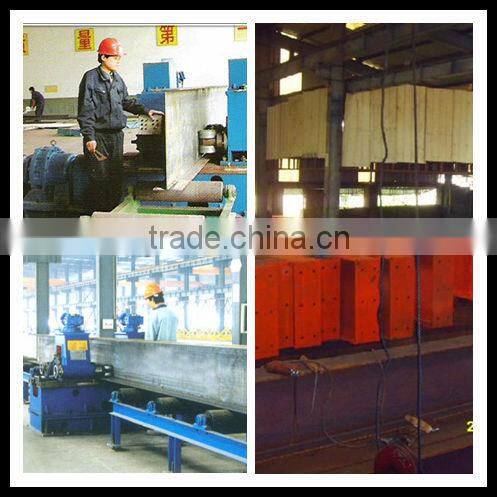

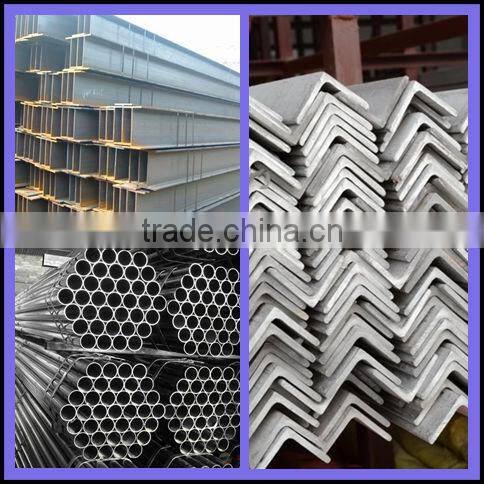

PRODUCT PICTURES
