Home > Products > New Products > handheld tour guide system two way radios

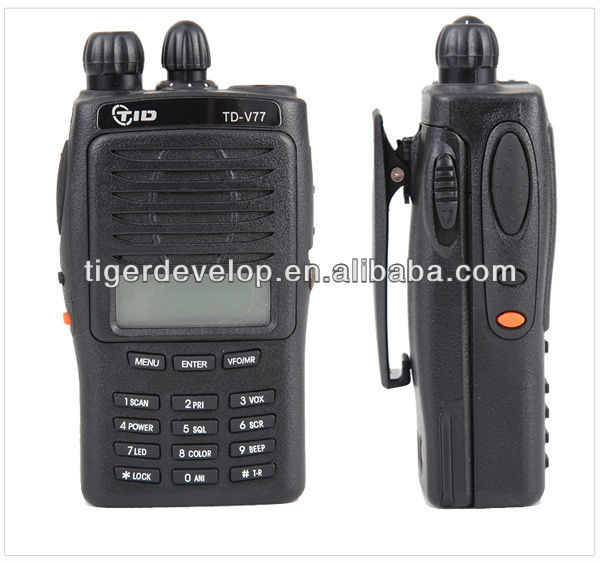

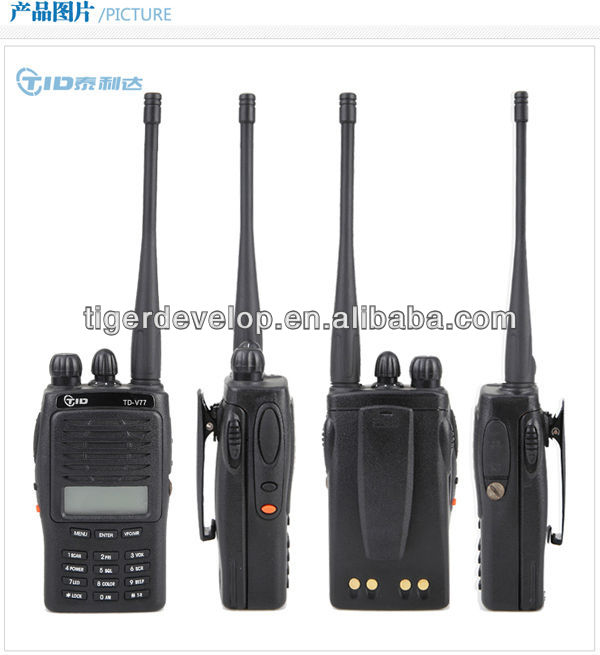

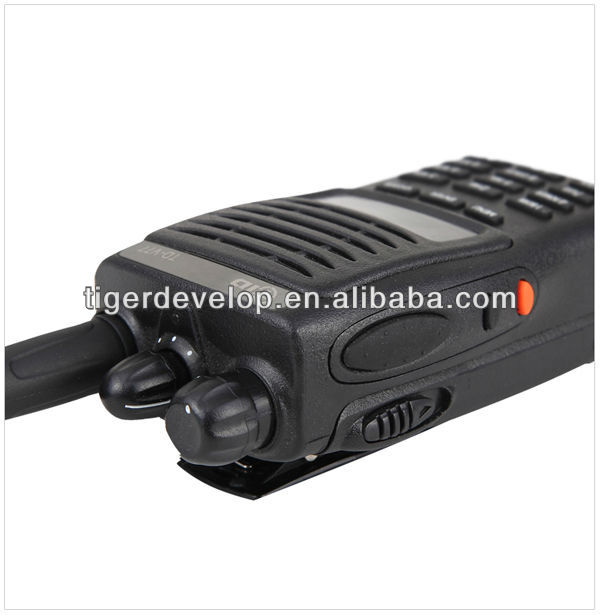

handheld tour guide system two way radios
- 100000 Piece / Pieces per Month
- guangzhou xiamen dubai hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | TID | |
| Model Number | TD-V77 | Type | Handheld | |
| Dimensions | 115*60*32%28without antenna%29 | Frequency Range | 136-174Mhz ,245-246MHz,400-470MHz,445MHz-520MHz | |
| Storage Channel | 128 channels by voice annunciation | Talk Range | 5km under empty environment |
Product Description
Specifications
tour guide system two way radiosTri-color backlight adjustable
Multi & priority channel sca
handheld tour guide system two way radios
- Tri-color backlight adjustable uhf long range two way radio
- scrambler function (optional)
- Multi and priority channel scan function
- Emergency alert
- low battery alarm
- high / low power control
- channel name setting
- TOT(Time-out-timer)
- BCL(Busy channel lock)
- 12.5 /25KHz band selectable
- VOX Function
- Group calls
- DTMF code
Main Features
- Tri-color backlight adjustable
- scrambler function (optional)
- ANI code
- Multi and priority channel scan function
- Emergency alert
- low battery alarm
- high / low power control
- channel name setting
- TOT(Time-out-timer)
- BCL(Busy channel lock)
- PC programmable
- 12.5 /25KHz band selectable
- 50 CTCSS /104 DCS
- VOX Function
- Group calls
- DTMF code

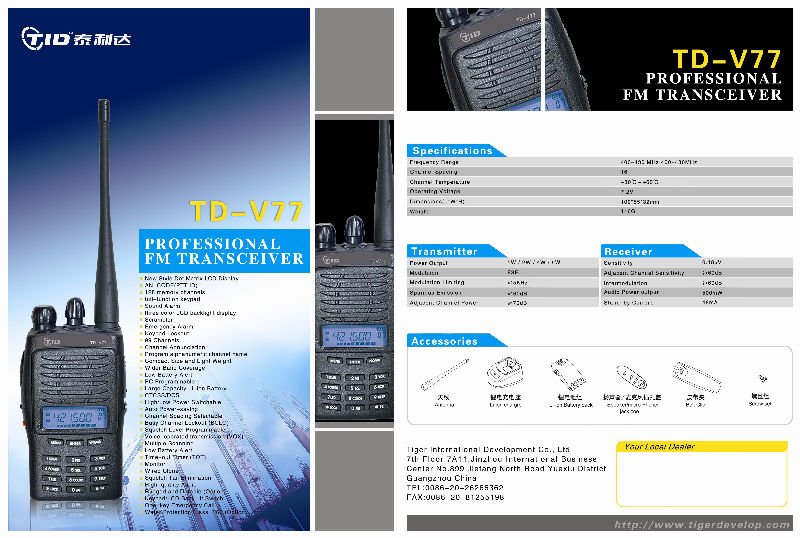

1). Specification of Profesional FM transceiver vhf uhf two way radio ( TD-V77)
| 1). Frequency Range | 136-174Mhz ,245-246MHz,400-470MHz,445MHz-520MHz |
| 2). Channel Capacity | 128 |
| 3). Channel Spacing | 5,10,12.5,20,25,30,50KHz optional |
| 4). Operation Voltage | DC7.2V Li-ion |
| 5).Mode of operation | simplex or semi-duplex |
| 6).Antenna impedance | 50Ω |
| 7).Operating Temperature | -20~50 °c |
| 8). Dimension(H*W*D)(Without Antenna) | 115*60*32MM |
| 9). Weight(With Antenna & Battery) | 210g |
2).Accessories
| 1).Battery Pack | 1 set |
| 2.Antenna | 1 set |
| 3).Charger | 1 set |
| 4).AC Adapter | 1 set |
| 5).Belt Clip | 1 set |
| 6).Hand strap | 1 set |
3).Transmitter
| 1). RF power output | ≤5W |
| 2). Current | ≤1.6A |
| 3). Maximum deviation | ≤5KHz |
| 4). Frequency stablity | ≥±2.5ppm |
| 5). Spruious radiation | ≤7.5 μW |
| 6). Modulation charter | 1dB~3dB |
| 7).Modulation distortion | ≤5% |
| 8).Occupied bandwidth | ≥60dB |
4).Receiver
| 1). RF sensitivity | 0.2μV |
| 2). Audio distortion | ≤10% |
| 3). Audio power | ≥500Mv |
| 4). Selectivity | ≥65dB |
| 5. Co-channel suppression | ≥-8dB |
| 6).Adjacent channel selectivity | ≥60dB |
| 7).Intermediation response | ≥60dB |
| 8).Spurious response | ≥55dB |
| 9).Blocking | ≥85dB |
5). Payment Terms
1. 100% T/T Advance
2. Western Union
3. Sample by paypal
6).Shipping Terms
1. EX-works Guangzhou
2. EX-works Hongkong
3. EX-works Xiamen
4. EX-works Dubai
7).Shipping Method
The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…
8).Lead time:
Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.
9).Packaging :
Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box) .
