Home > Products > TID two way radio > UHF TD-V58 Quality Gurantee Amature Ham Radio 2 Way Radios
UHF TD-V58 Quality Gurantee Amature Ham Radio 2 Way Radios
- Guangzhou Xiamen Dubai Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | TID | |
| Model Number | TD-V58 | Type | Handheld | |
| Dimensions | 98.3*57*28mm | Frequency Range | 136-174MHz 400-470MHz | |
| Storage Channel | 128 | Talk Range | 5KM |
Product Description
UHF TD-V58 quality gurantee amature ham radio 2 way radios
- DTMF Encode&Decode
- Voice Compander/Scramber
- Wide/Narrow Band Selectable
TD-V58 walkie talkie Main function:
- 128 Channels, 1200mAh Li-ion battery
- DTMF Encode&Decode
- Voice Compander/Scramber
- Wide/Narrow Band Selectable
- PTT ID
- Buit-in FM radio Feature
- Time-out Timer (TOT)
- 1750HZ tone
- 51CTCSS/214DCS
- High/Low Power Switchable
- Auto Power-saving
- Channel Spacing Selectable
- Busy Channel Lockout (BCLO)
1). Specification of UHF TD-V58 quality gurantee amature ham radio 2 way radios ( TD-V58)
| 1). Frequency Range | VHF:136-174Mhz ,UHF:400-470MHz ,450-520MHz |
| 2). Channel Capacity | 128 |
| 3). Channel Spacing | 12.5 / 25.0KHz |
| 4). Operation Voltage | DC7.4V Li-ion |
| 5). Battery Capacity | 1200mAh(Li-ion) |
| 6). Battery life(5-5-90 Duty cycle) | about 10 hours |
| 7).Frequency stability | ±2.5ppm |
| 8).Operating Temperature | -20~+60 °c |
| 9). Antenna Impedance | 50 Ω |
| 10). Dimension(H*W*D)(Without Antenna) | 98.3*57.7*28mm |
| 11). Weight(With Antenna & Battery) | 220g |

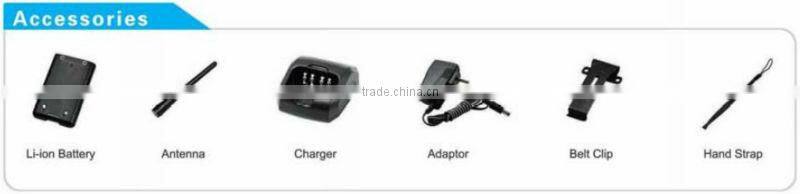

2).Accessories
| 1).Battery Pack | 1 set |
| 2.Antenna | 1 set |
| 3).Charger | 1 set |
| 4).AC Adapter | 1 set |
| 5).Belt Clip | 1 set |
| 6).Hand strap | 1 set |
3).Transmitter
| 1). RF power output | UHF:4.0W/1.0W ,VHF:5.0W/1.0W |
| 2). Modulation tpe | F3E |
| 3). Spurious and harmonics | -36dBm<1GHz ,-30dBm>1GHz |
| 4). FM Noise | 40 /45dB |
| 5). Audio Distortion | ≤5% |
| 6). Modulation Respose | 1 to-3dB |
4).Receiver
| 1). RF sensitivity | ≤0.30 /0.20μV |
| 2). Adjacent channel selectivity | 60 / 65dB |
| 3). Intermodulation | 65dB |
| 4). Spurious response rejection | 70dB |
| 5. S/N | 40/45dB |
| 6). Audio power output | 500mW |
| 7). Audio distortion | ≤5% |
5).Payment Terms
1. 100% T/T Advance
2. 100% Western Union Advance
3. 100% Pay pal Advance
6).Shipping Terms
1. EX-works Guangzhou
2. EX-works Hongkong
3. EX-works Xiamen
4. EX-works Dubai
7).Shipping Method
The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…
8).Lead time:
Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.
9).Packaging :

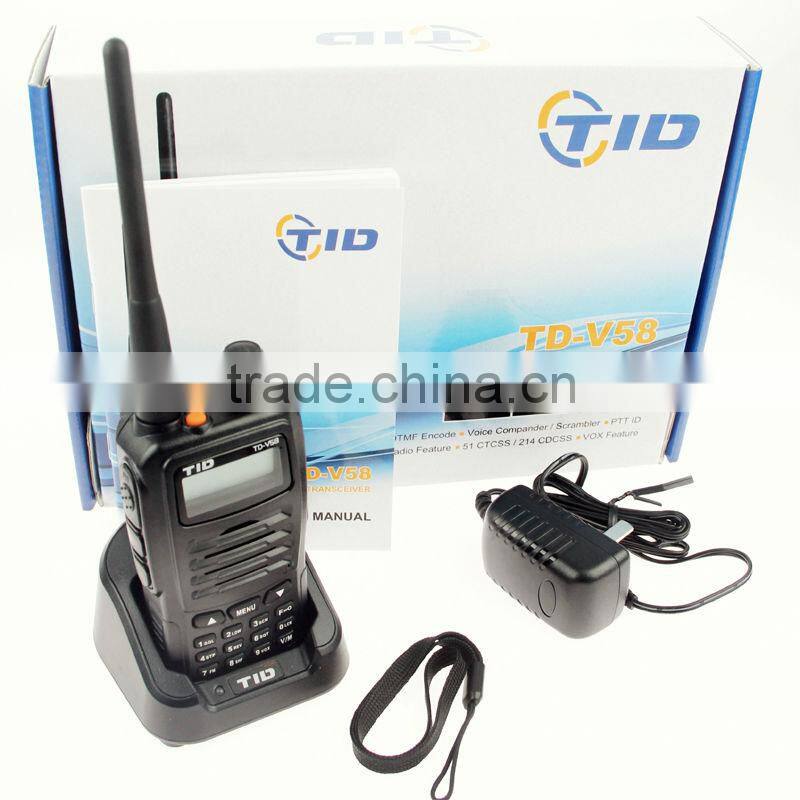

Unique packaging with durable ,environmental , beauty design character (plastic bag +color gift box).
We are manufacturer of two way radio with 13 years experience. We are concerned with the design, development and production of telecommunication equipment. We have branches in Fujian, Guangzhou and Dubai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our customers have cover more than 100 countries in the world.
Trail order is acceptable, all the products are best quality with 18 months warranty. We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment. We can support OEM/ODM.
