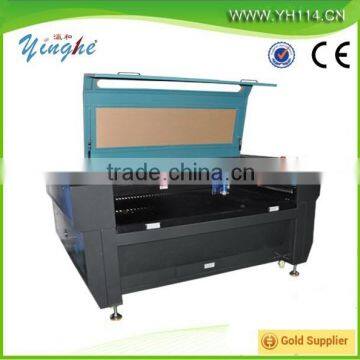

metal laser cutting machine

Model: YH-1390CS

Working range: 1300mm*1900mm    Focus Mode: Automatic focus

Cutting thinkness: 0.1-30mm(depends on the material)

Cutting speed: 0.1-3600(mm/min)

Engraving speed: 0.1-6400(mm/min)

Laser power: 150W

Resolution: 4000dpi

Location accuracy: <0.05mm

Mini words: Chinese:2×2mm Letter:1×1mm

Power: AC220V (10% more or less) 50HZ

Working Power: <1650w Working platform: Strip platform

Operating Temperature: 0-45 celius

Operating humidity: 5%-95%

Cooling type: Water cooling

File format: PLT,CDR,AI,DWG,DXF,DST,PCX,TGA ect...

Weight: 360kg 530kg

Size: 1930mm*1150mm*1220mm 2800mm*2100mm*1200mm

1. YH-1390G not only can cut Acrylic, density board, ABS, double color boards, bamboo and other non-metal materials,but also can cut Carbon steel, stainless steel and other metal materials.

2.Using DSP high speed controlling system and TFT screen,USB port for Data transmission.

3. Configuration the laser head can cut both metal and non metal in one head and special laser tube,import laser focus from USA.

4. Use autofocus system and blow system

5. Configuration the special water cooling tank

Applied materials:

Acrylic, density board, ABS, double color boards, bamboo and other non-metal materials,but also can cut Carbon steel, stainless steel and other metal materials.

Applied industry:

Professional applied in advertisement, decoration, furniture, lamp act the role ofing, blister, die cutting, light boxes, packaging and other industries.

We have many kinds of laser machine,welcome to visit our showroom
