Home > Products > inkjet printer > Stretch Digital Indoor Seiling Material Transparent Soft Film Printer

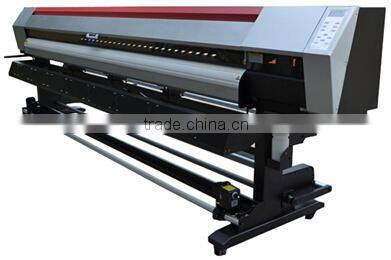

Stretch Digital Indoor Seiling Material Transparent Soft Film Printer

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Guangzhou haungpu
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Other, Roll printer
Place of Origin	Guangdong, China	Brand Name	Yinghe
Model Number	YH-3200R	Usage	Other, Roll soft film
Automatic Grade	Automatic	Voltage	110 220V
Dimensions(LWH)	H 1300mm X L 3560mm X W 850mm	Weight	360KG
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specification

*1. Adopt double DX5 printhead, which with 180 nozzles / roll 8 lines 2. With high output quality that up to 1440DPI.*
2. Staggered arrangement printing can imporve the productivity. The printing speed can be 36m2/h in 4 pass under the staggered arrangement printing mode.
3. Adopt New Variable Droplet Control Technology, which achieve the three grayscale to make the printing more delicate and accurate. It can output the perfect printing with VSD technology even in high speed or low resolution.
4. With separately front, middle and back heating system.
5. With automatic Media take-up system.
6. The height of printhead can be adjustable according to the thickness of media from 1.5mm to 8mm, to ensure the good spary quality.
7. Adopt the well-known HAVIN brand rails, to ensure the movement of carrier to be more stable, with longer life-time and be quieter.
8. Adopt Three Intelligent Eclosion Print Function, which can eliminate the broken picture and make the printing more perfect and delicate.
9. With Automatic Ink Maintenance station. The automatic self-designed absorbing device with simple operation is convenient for mantaining, And the automatic up / down sucking ink function can reduce to wast of ink.
10. Using Hight-power servo DC motor for X, Y axis to ensure accurate transmission.
11. Using High-speed USB interface, which can be up to 480m/s speed of maximum transmission.
12. Using Industrial Circuit Design to ensure the reliable and stable circuit. Good designs as high-capacity automatic ink supply system and so on, ensure the overall stability of the machine which make it become your right hand.

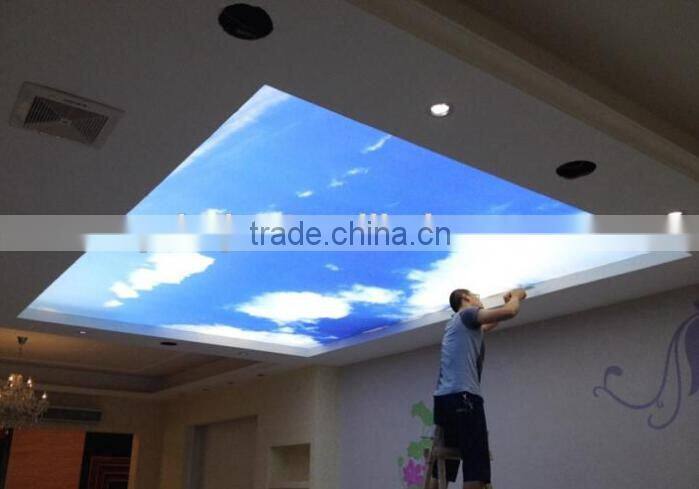

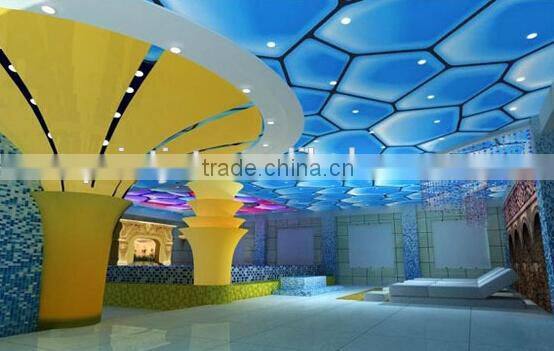

Application

Parameter

Model			YH-2600R
print head			DX5 head
Quantity of the printhead			2pcs
Maximum print			2600mm
print resolution/speed		2pass	60m²/h
		3pass	43m²/h
		4pass	35m²/h
Ink	Sort		water based ink / Eco solvent ink
	Capacity		Double 4 color, 220ml each
Media	Width		2600mm
	Sort		PP Sythentic Paper, Vinyl Sheet, Film, Coated Paper, Acid Proof Paper Banner, Canvas etc, Adhesive Vinly Sheet, Banner and so on.
Media Heater			Pre/Post Heater (can be controlled separately)
Media Take-up Device			Strong rolling take-up device with the automatic damper
Interface			USB 2.0
RIP Software			Maintop V5.3, Photoprint, Topaz, Seeget
Operation Environments			Temperature:20℃-35℃,Humidity:35%RH-65%RH
Dimensions of Printer			H 1300mm X L 3560mm X W 850mm
Dimensions of Packing			H 720mm X L 3720mm X W 750mm
Net Weight			360KG

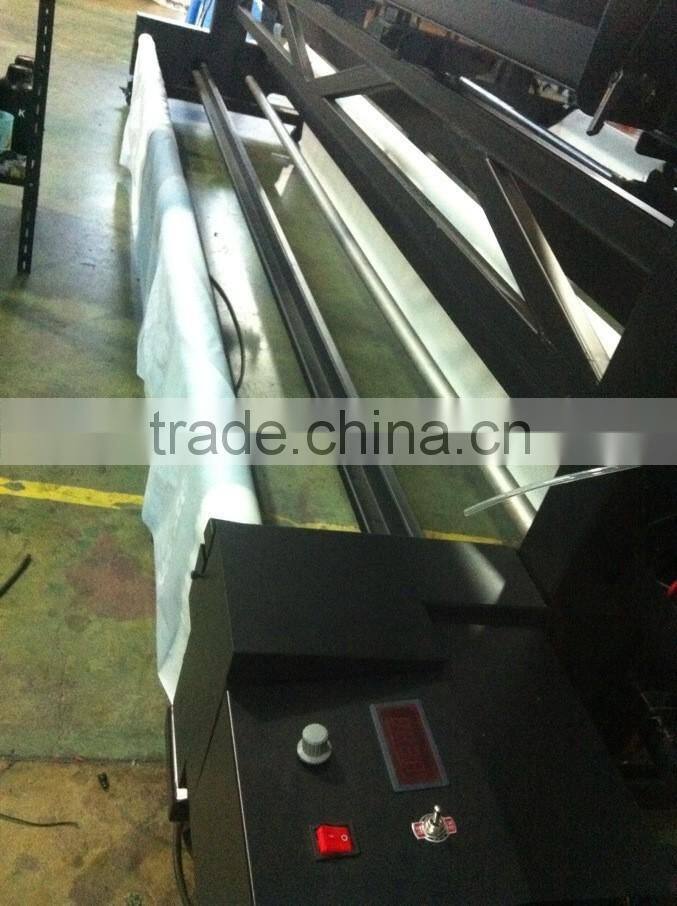

Photo Detail
