Xtool IOBD2 OBD Bluetooth Mitsubishi OBD2 Scanner

1Now you do not need to drive on with the MIL light on.

2 Now you do not need to wait to go to the garage with your car to know what is wrong.

3 Now you can prepare the garage staff in advance by knowing what is wrong with your car.

4 Now you can see what is wrong with your car on your holiday so that you know if you can drive on.

5 Now you can know what your fuel consumption, torque, or acceleration is, in real time.

6 Now ever wished you had your own customizable gauges, showing only the data you were interested in.

Please verify that your vehicle is OBD-II/EOBD compliant before purchasing!

Get the benefit of multiple gauges without the overwhelming clutter and the expense!

(Note: Not all OBD-II compliant vehicles will have support for all of these parameters)

Performance gauges:
- Engine speed
- Corrected vehicle speed
- Open/closed loop
- Boost/vacuum combo gauge
- Acceleration (and braking)
Fuel economy gauges:
- Inst. fuel economy
- Avg fuel economy
Engine gauges:
- Timing (spark advance)
- Engine coolant temp.
- Intake air temp.
- Ambient air temp.
- Manifold absolute pressure
- Mass air flow
- Fuel trims, short and long term
- Percent engine load
- Catalyst temp.
- Fuel pressure
- Lambda gauge
- Air/fuel ratio

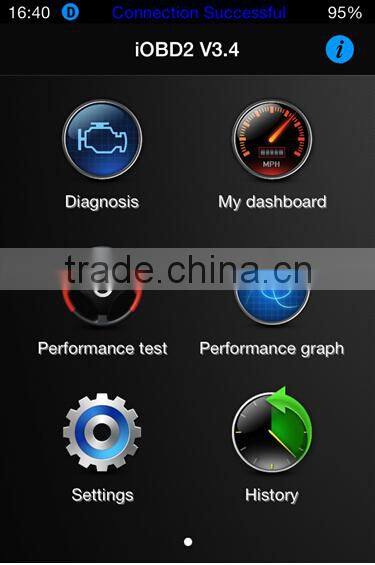

Function:

Diagnostic

The [Diagnostic] function includes:

[Read DTC]: Read the current DTC that engine has stored, and DTC info.

[Clear DTC]: Clear all the current DTC.

[Live data]: Read all the running parameters that related to the ECU.

[Freeze frame data]: OBD system will record the system running parameters related to the malfunction the moment when it occurred at the same time when it set the DTC. And this group of data is called freeze frame data.

[Readiness test]: Readiness reflects the status that all the valid diagnostic functions. The diagnostic functions are referring to the important monitoring functions in OBD system, e.g. sensor monitoring, sensor heater monitoring, and EGR system monitoring, etc. These diagnostic functions are closely related to the engine emission control.

[Read vehicle info]: Read vehicle info such as Vehicle Identification Number(VIN), Calibration IDs(CALID) and Calibration Verification Number (CVN).

[ Sensor test]: This service is to allow access to the on-board oxygen sensor monitoring test results. The same information may be obtained by the use of [Mode 6 test].

[Mode 6 test]: This service is to allow access to the results for on-board diagnostic monitoring tests of specific components/systems that are not continuously monitored. Examples are catalyst monitoring and the evaporative system monitoring.

[EVAP System Test]: The purpose of this service is to enable the external test equipment to control the operation of an on-board system, test or component.

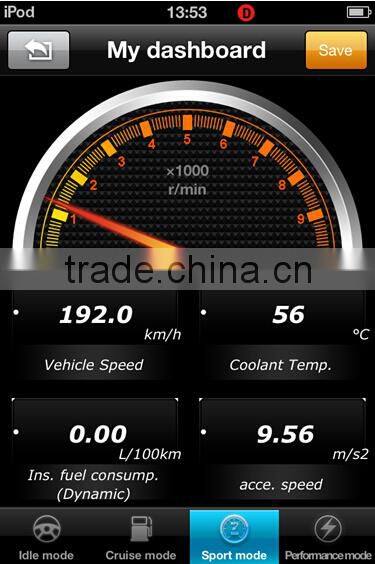

 My dashboard

The [My dashboard] function includes:

[Idle mode]: engine rotational speed ,water temperature,battery voltage,Air-intake temperature,Instant fuel consumption ( static),average fuel consuption ,Ever wished you had your own customizable gauges, showing only the data you were interested in

[Cruise mode]: vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption(dynamic),Ever wished you had your own customizable gauges, showing only the data you were interested in.

[Sport mode]: engine rotational speed, vehicle speed, water temperature

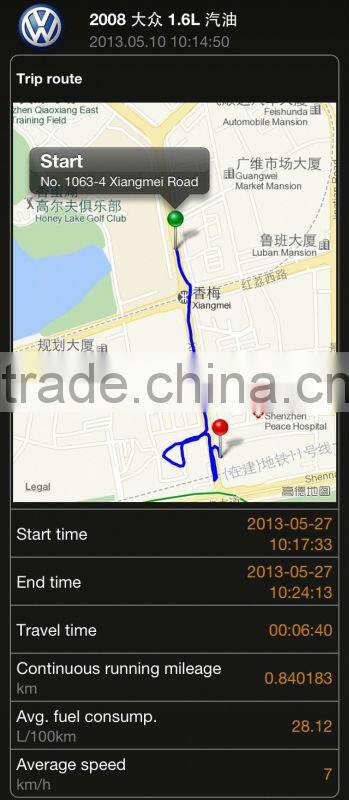

Driving Track (Racetrack mapping) – supports Apple iOS

It is to show the drive’s driving track of the vehicle to give data and foundationfor drive’s reference. Open the Location Services of the mobile, connect iobd2 to the vehicle and open iobd2 APP, choose “My Dashboard”, and it will record the track of the vehicle. Quit “My Dashboard” then it will stop recording the track of the vehicle.

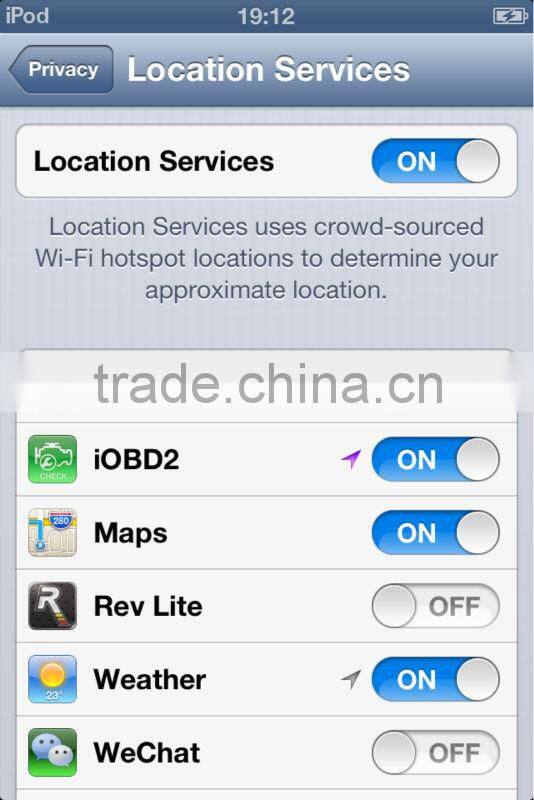

Open “Setting” of your mobile, Choose Privacy, let the Location Services ON, and let iOBD2 ON (Picture 34, Picture 35), go to iobd2 APP “My Dashboard”, and start driving the vehicle, then it will record the track of the vehicle. The route is saved in “History”.

 Performance test

The [Performance test] function includes:

[Accelerate/Decelerate test]: Test acceleration / deceleration process time and distance

[0 to 400m acceleration test]: test spend time from 0 to 400 meters.

 Diagnostic software updating

Users can find out the latest software release info, downloading and installing procedures info by logging on to app store.

Setting

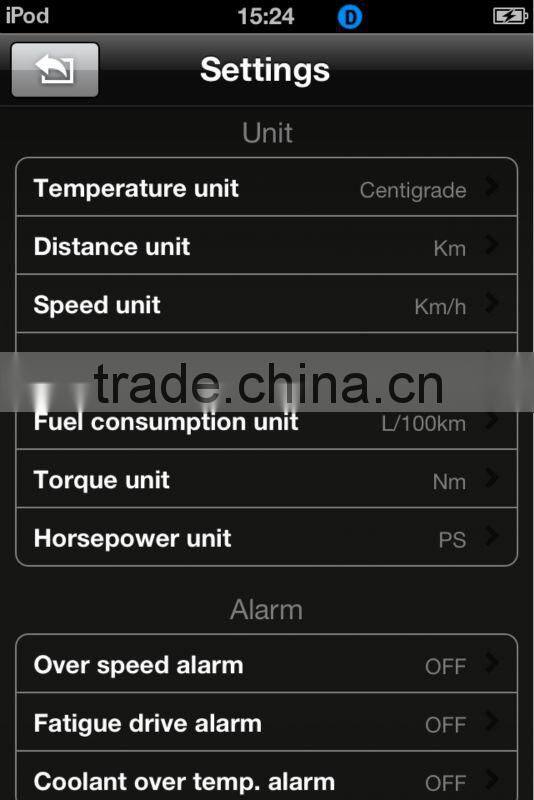

It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard]

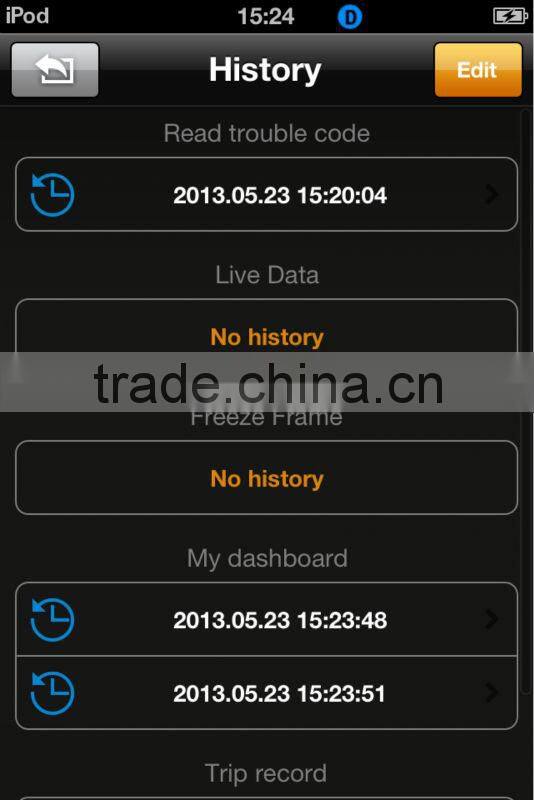

 History

Record DTC, live data, freeze frame data,my dashboard data. And you can share the record what you get from the car by IOBD2 on Twitter and Facebook.

Emissions Testing:
- Read and clear diagnostic trouble codes
- IM Readiness status

Components:

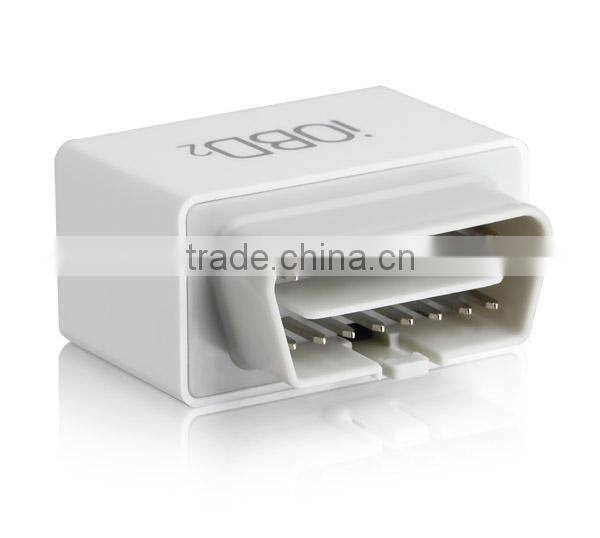

The hardware includes: iOBD2 unit

The software includes: iOBD2 client software,you can source iobd2 software and download it from apple store.
