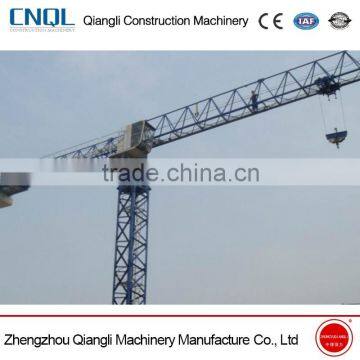

crane load indicator

FOB Price

US$ 28,500 - 32,800 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	small and medium construction
Rated Loading Capacity	4t	Rated Lifting Moment	500kn.m
Max. Lifting Load	4t	Max. Lifting Height	120
Span	48	Place of Origin	Henan, China
Brand Name	Yongmao	Model Number	QTZ50 4810
Certification	CE ISO	Warranty	15 months
After-sales Service Provided	Engineers available to service machinery overseas

crane load indicator

Product Description

Technical Parameters

parameters			QTZ 50 Series 4810
Maximum rated Torque(KN.m)			540
Maximum lifting load(t)			4.0
Maximum working amplitude (m)			48
Hoisting Height (m)	Independent		30
	Adhered		120
Lifting capacity at jib tip(t)			1.0
Hoisting Speed(m/min)		A=2 A=4	64/32/19
Radius changing Speed(m/min)			22/33
Swiveling speed(r/min)			0.6
Climbing speed(m/min)			0.4
Dead load (t)			36/22.5 42.7/21.5
Upper chord of lifting Beam			Φ89x4.5
Standard section dimension(mm			1618x1618x2500 1494x1494x2200
Matching motor			Winding motor, boost speed regulation ,eddy current branking
Materials of section mast			∠140x12 Q235B ∠160x12 Q235B ∠75x6
Parallel height of lifting beam (mm)			1040

Sketch

Loading diagram

Cab

Video On the Hook

Basic section

Front Jib

Slewing machine

Detachable climbing system

Main material

Packaging & Shipping
