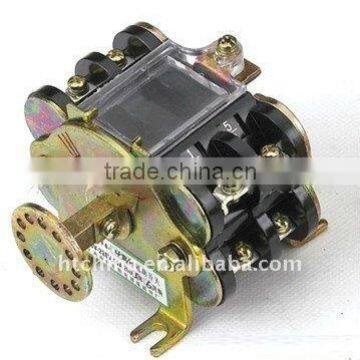

Auxiliary Switch F4-4II-W
Negotiable
/ Piece
50 Pieces(Min. Order)
- Ningbo Beilun Port
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Hengtong | |
| Model Number | F4-4II-W | Max. Current | 10A | |
| Max. Voltage | 220V |
Product Description
Specifications
1.F4 AC auxiliary contactor2.Various Types for Selection
3.High quality & Competitive price
Main Application
Being used as auxiliary device for High-voltage circuit-breaker, high-voltage isolator, low-voltage isolator, low-voltage air switch and low-voltage knife switch, series F switch controls the process of making and breaking signal.
Working Conditions
- Ambient Temperature (-40oC≤ t ≤40oC)
- Height above Sea Level (h≤3000m)
- t=+25, relative air humidity ≤ 90%
- Situation of no sharp pounding, no explosion risk, no inductive dust, no air destroying insulators or corroding metal and so on.
Structure
- According to different requirements, the turning angle of series F1 could be 60°~90°~120°.
- Series F4 is devided into straight type and horizontal type according to the assembling method. Its devided into horizontal structure and straight delay contact according to the way of construction.
References
| Rated Voltage | DC | 220V |
| AC | 380V | |
| Rated Current | 10A | |
| Rated Breaking Current | DC 220V, T=20ms | 4A |
| DC220V,cosφ=0.4 | 10A | |
