CNC Silicon Steel /Stainless Steel /cold Rolled/hot Rolled Slitting Line
- foshan guangzhou shenzhen shanghai ningbo qingdao tianjin xiamen dalian lianyun zhongshan
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | TX MACHINERY | Model Number | CNC Silicon Steel Slitting Line | |
| Voltage | 380V | Rated Power | 380kw | |
| Dimension(L*W*H) | 1700*900*1400mm | Weight | 1000KG | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

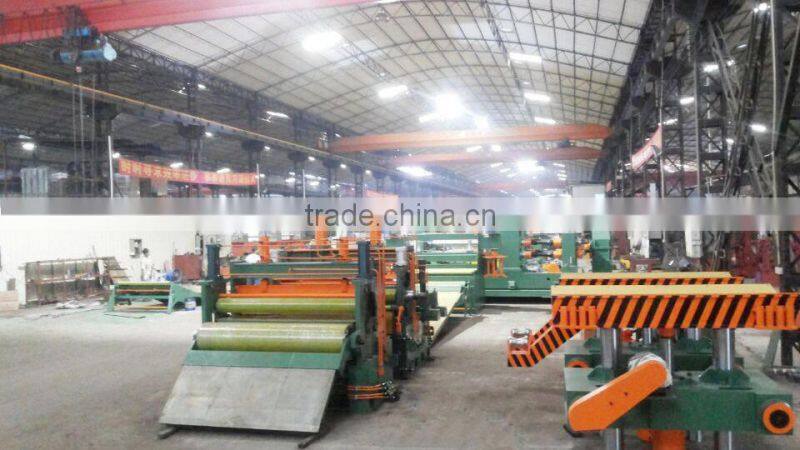

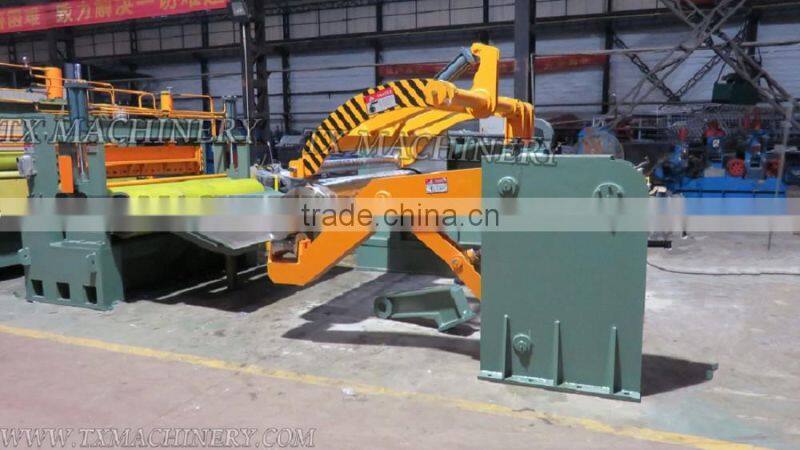

CNC Silicon Steel /Stainless Steel /cold rolled/hot rolled Slitting Line
..........................................................................................................................................
Function & Features:
l Composed of coil loading car, decoiler, pinch roll, slitter, tension station, recoiler, coil unloading car, control system.
l Function: slit the coil strips with big width longitudinally into some strips with required width.
l Prepare material for the next processing, like punching, roll forming and etc.
l By adjusting clearance between the upper and lower arbor, to suit the cutting for the strips with different thickness.
l By changing the combination of knife and spacer with different specifications, to slit the strips into different width as required.
Raw Material Parameters
..........................................................................................................................................
No. |
Description | Technical Parameters |
1 | Raw material | Silicon Steel |
2 | Thickness | 0.15~1.5mm |
3 | Width | 400~1600mm |
4 | Coil OD | ≤Φ1900mm |
5 | Coil ID | Φ480mm~Φ520mm |
6 | Coil Weight(Max) | 20T |
Finished Product Parameters
.........................................................................................................................................
No. |
Description | Technical Parameters |
1 | Coil ID | Φ508mm |
2 | Coil OD | ≤1900mm |
3 | Coil Weight(Max) | Max:20T |
4 | No. of Slit Strip | heavy sheet:1.5mm≤35strips; Thickness: 1.5m≤35 strips |
5 | Accuracy of Slit width | ±0.05m |
6 | Tolerance of Burr | ≤0.05mm |
7 | Minimum Slit Width | 25mm |
8 | Scraps width range | 2~5mm |
Parameters Of Other Configurations
.......................................................................................................................................
Model | TX 0.14-1.5 | TX 0.3-2.5 | TX 0.3-3.0 | TX 0.5-4.0 | TX 1.0-6.0 |
mm Thickness(mm) | 0.14-1.5 | 0.3-2.5 | 0.3-3.0 | 0.5-4.0 | 1.0-6.0 |
mm Width(mm) | 500-1850 | 500-1850 | 500-1850 | 500-2000 | 500-2000 |
m/min Line Speed(m/min) | 250 | 230 | 200 | 180 | 150 |
Coil Weight(ton) | 10,15,20 | 10,15,20 | 10,15,20 | 20,35 | 20,35 |
No. of Slit Strip | 35 | 30 | 20 | 15 | 10 |
Slitting Accuracy(mm/m) | <±0.10 | <±0.10 | <±0.10 | <±0.2 | <±0.2 |
Tolerance of Burr | <5% | <5% | <5% | <5% | <5% |
Recoiling Misalignment(mm) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Recoiling Looseness(mm) | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.

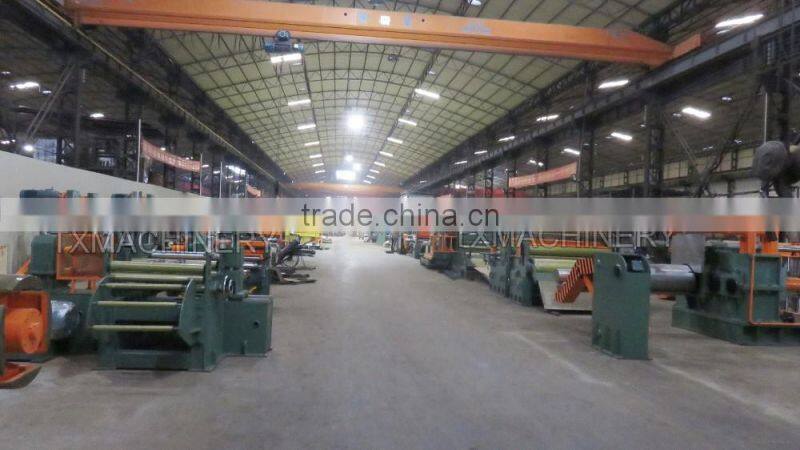

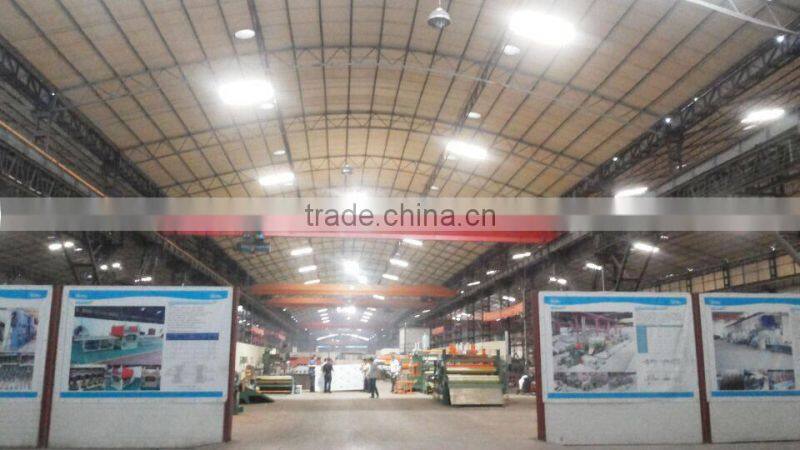

OUR FACTORY
CUSTOMER For more details ,contact me
Contact Us
- Foshan Te Xiang Machinery Co., Ltd.
- Contact nameGuanhong Mai Chat Now
- Phone86-133183-24348
- Addressnanzhuang, Foshan, Guangdong
