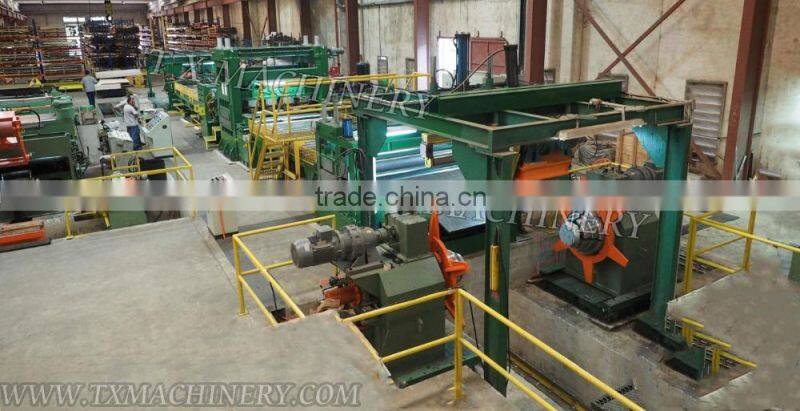

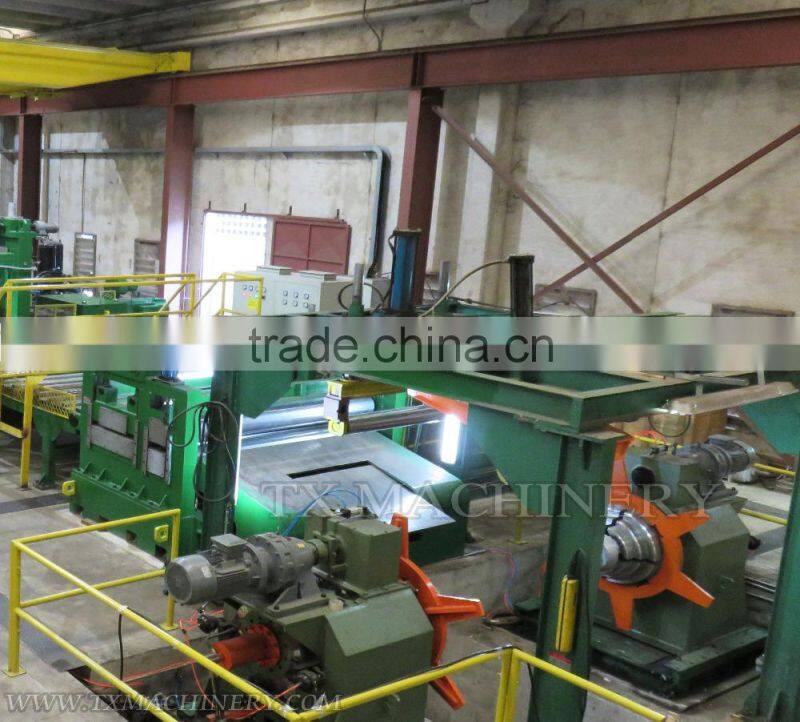

TX1800 High Quality Automatic /hot Rolled/cold Rolled/Medium-heavy Plate Steel Cut to Length Line

• Name:  TX1800   High Quality Automatic /hot rolled/cold rolled/Medium-heavy  plate steel cut to length line
• ........................................................................................................................


Features:

...............................................................................................................................

l Automatic detection on coil information, one button loading, one button decoiling, automatic steering/centering.

l Double stackers that are automatic interchanging. Automatic sensing and neatening for the stacking.

 l Accurate calculation. Safe and reliable.

 l Advanced technology of rotary flying shear to achieve high quality, high efficiency metal sheet processing.

 l All the bearing and slides on the flying shear are all brand product. Advanced lubrication system. Long working life.

 l All the electric components are high end brand product.

Equipment Capacity:

...............................................................................................................................

1. Material: stainless steel

2. Thickness: 3.0mm ~ 13mm

3. Width: 900mm~2000mm

4. Coil outer diameter: 1100mm~2200mm

5. Coil inner diameter: 500mm~780mm

6. Coil max weight: ≤35 tons

7. Range of fixed length: ≤6.1M

8. Line working speed: 18m/min max (adjustable)

  Decoiling speed: 25m/min max

  Cutting speed: 15 - 18m/min

  (actual cutting efficiency: 5pcs/min, based on length of 3000mm)

9. Cut length accuracy: ≤±1.0mm/2M

10. Diagonal accuracy: ≤±2mm/2M

11. Leveling accuracy: ≤2mm/M2

12. Total power: 350KW

13. Power supply: 220V / 3PH / 60Hz

Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.

1. Q:Where is your factory located? How can I visit there?

A: Our factory is located in Foshan City, Guangdong Province, China. It is about 55KM from Guangzhou Baiyun Airport, by car takes about one hour. We will pick you up at the airport.

2. Q:How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the end. Each part of the machine components are strictly processed by advanced machine tools and experienced staffs. Every machine element is checked and inspected by our QC. Each machine before delivery shall test run and be well checked.

3. Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

4. Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

5. Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand components

6. Q: Do you have a warranty on your machines?

A: we guarantee one year warranty. At the same time, we provide lifelong technical support.

7. Q: Once a machine arrives at our factory what happens then?

A: We will send you technician or engineer who will assist the commissioning and installation of your machine, with training for your staff.

8. Q: What kind of controls do you use on your machines?

A: Yaskawa, Omron, Delta, Schneider, Siemens, and Mitsubishi and etc.

9. Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
