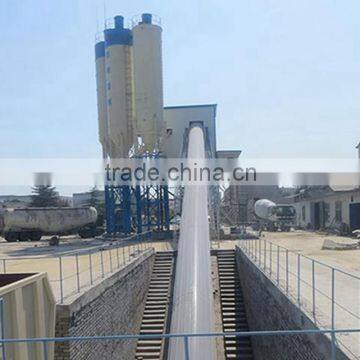

HZS120 ready mix concrete plant

Model

HZS120

Rated Productivity

120m3/h

Main Mixer

MAO3000/2000

Max. Aggregate Diameter

80mm

Capacity of Aggregate Bin

4X16m3

Aggregate Conveying Mode

Flat Belt Conveyor

Aggregate Weighing Precision

4X 4500Kg ±2%

Cement Weighing Precision

1500Kg ±1%

Fly Ash Weighing Precision

1500Kg ±1%

Water Weighing Precision

1000Kg ±1%

Additive Weighing Precision

100Kg ±1%

General Power

200Kw

Total Weight

72T

Outline dimension (L*W*H)

44m×18m×12.7m

Discharging Height

4.1m

Cement Silos (for customers choice)

2*100t

Screw Conveyors (for customers choice)

2*φ273mm

Item

MAO3000/2000 SICOMA Concrete Mixer

Feeding

3000L

Discharging

2000L

Mixing blade

16PC

Power

2*37Kw

Weight

7.5T

Type

PLD3200

Kinds of Aggregate

4

Weighing Hopper Capacity (L)

3200

Aggregate Bin Capacity (L)

4×15.6m³

Productivity ( m³ /h)

160

Feeding Height (mm)

4130

Batching Accuracy

± 2%

Power

4/5×5kw

Model

100T

Silo Diameter (A)

3,000mm

Silo Body Height (H1)

9,810mm

Silo Cone Height (H2)

2,579mm

Silo Height (H3)

19,789mm

Total Height (H4) (including handrails)

20,902mm

Discharging Height (H5)

7,400mm

Total Weight

8T

Material

Q235

Accessories

Dust Collector, Handrails, Inside& Outside Ladders,

Inlet Tube, Butterfly Valve, Support Legs, Broken arch.

Painting

 Anti-Rust Painting

Item

Spec

Qty

Unit

Strong Current Cabin

1

set(s)

Weak Current Cabin

1

set(s)

Operation Desk

HZS120

1

set(s)

Control Room

6000*2400*2600mm

1

set(s)

Control Computer

EVOC

1

set(s)

LCD

19"

1

set(s)

Contactor

Schneider

1

set(s)

Autoswitch

Schneider

1

set(s)

Mini-relay

1

set(s)

Thermo-relay

1

set(s)

PLC

OMRON

1

set(s)

Weighing Transmitter

1

set(s)

UPS

1

set(s)

Air Conditioner

1 pieces

1

set(s)

Electrical Control Accessories

Schneider

1

set(s)

Monitor

14"

1

set(s)

Camera

4

set(s)

Printer

Needle type

1

set(s)

Electric Cables and Accessories

1

set(s)
