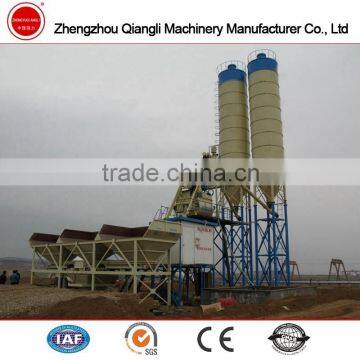

2015 New! HZS75 ready mix concrete plant for sale

Model

HZS75

Rated Productivity

75m3/h

Main Mixer

JS1500

Batching machine

PLD2400

Chemical Addictive

2

Max. Aggregate Diameter

80mm

Capacity of Aggregate Bin

3X12m3

Aggregate Conveying Mode

Lift Hopper

Aggregate Weighing Precision

4500Kg ±2%

Cement Weighing Precision

1500Kg ±1%

Fly Ash Weighing Precision

600Kg ±1%

Water Weighing Precision

600Kg ±1%

Additive Weighing Precision

50Kg ±1%

General Power

110Kw

Total Weight

50T

Outline dimension (L*W*H)

35.6m×18.3m×11.8m

Discharging Height

3.8 m

Cement Silos

  2*100T

Screw Conveyors

φ273 *11.5m

Type

JS1500

 Feeding Capacity

2400L

Discharge Capacity

1500L

 Productivity

70~90 m³/h

 Mixing Motor Power

2*22KW

Max Aggregate Size

80mm

 Water Pump Power

3KW

 Water Supply Accuracy

±2%

Type

PLD2400

Kinds of Aggregate

4

Weighing Hopper Capacity (L)

2400

Aggregate Bin Capacity (L)

3/4×8.38m³

Productivity ( m³ /h)

120

Feeding Height (mm)

3050

Batching Accuracy

± 2%

Power

4/5×5kw

Model

100T

Silo Diameter (A)

3,000mm

Silo Body Height (H1)

9,810mm

Silo Cone Height (H2)

2,579mm

Silo Height (H3)

19,789mm

Total Height (H4) (including handrails)

20,902mm

Discharging Height (H5)

7,400mm

Total Weight

8T

Material

Q235

Accessories

Dust Collector, Handrails, Inside& Outside Ladders,

Inlet Tube, Butterfly Valve, Support Legs, Broken arch.

Painting

 Anti-Rust Painting

Strong Current Cabin

1

set(s)

Weak Current Cabin

1

set(s)

Operation Desk

HZS75

1

set(s)

Control Room

3240*2320*2500mm

1

set(s)

Control Computer

EVOC

1

set(s)

LCD

19"

1

set(s)

Contactor

Schneider

1

set(s)

Autoswitch

Schneider

1

set(s)

Mini-relay

1

set(s)

Thermo-relay

1

set(s)

PLC

OMRON

1

set(s)

Weighing Transmitter

1

set(s)

UPS

1

set(s)

Air Conditioner

1.5 pieces

1

set(s)

Electrical Control Accessories

Schneider

1

set(s)

Monitor

14"

1

set(s)

Camera

2

set(s)

Printer

Needle type

1

set(s)

Electric Cables and Accessories

1

set(s)

model

Delivery angel to the ground

Delivery distance (m)

Max. Delivery capacity(T/H)

Pipe diameter(mm)

Motor power(kw)

LSY273

0-45°

4-15m

30T/H

273mm

7.5-18.5kw
