128x160 MCU 8 bit 1.8 inch TFT LCD display module
- Kaohsiung
- T/T
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | Palm Technology | |
| Model Number | PT0181216-B3 | Type | TFT |
Product Description
https://www.china.cn/product-detail/1-77-128x160-8-bit-MCU_60506081467.html

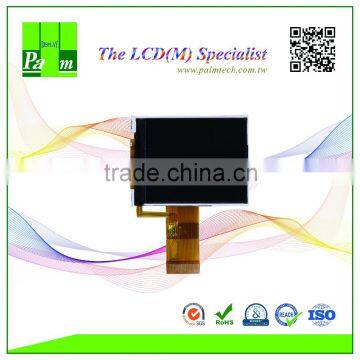

1.77" 128*160 TFT PT0181216-B30 LCD Module
Key Specifications/Special Features:
TFT Module
Outline dimensions: 34.00 x 45.83x 2.75mm
Polarizer mode: transmissive type
B/L: LED backlight, color white
Active area: 28.03 2x 35.040mm
Number of dots: 128 x 160 dots
Pixel size: 0.219 x 0.219mm
Viewing angle: 12:00
**To know more about performances and dimensions of the products, welcome to purchase our samples.
***Price can be discussed by real requirement.
TFT product list:
| Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm | Active Area W x H mm | Interface |
| 1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
| 1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
| 2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
| 2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 | 31.68 x 39.60 | MCU / SPI |
| 2.0" | PT0201722T-B606(RTP) | 176 * 220 | 38.5 x 51.15 x 4.1 | 31.68 x 39.60 | MCU / SPI |
| 2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | MCU |
| 2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 | 48.00 x 35.685 | RAW DATA / SERIAL RGB / CCIR |
| 2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
| 2.8" | PT0282432-E501 | 240 * 320 | 50.0 x 69.2 x 2.45 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-E501(RTP) | 240 * 320 | 50.0 x 69.2 x 3.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224T-C601(RTP) | 320 * 240 | 76.9 x 64.0 x 4.2 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-C701(RTP) | 320 * 240 | 76.9 x 63.9 x 4.4 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-D102(RTP) | 320 * 240 | 76.9 x 63.9 x 4.3 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E201 | 320 * 240 | 76.9 x 63.9 x 3.15 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-E201(RTP) | 320 * 240 | 76.9 x 63.9 x 4.25 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | MCU / RGB / SPI |
| 3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
| 3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
| 3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
| 4.0" | PT0404880-B001 | 480 * 800 | 57.14 x 96.85 x 2.05 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B701 | 480 * 800 | 58.94 x 97.80 x 2.0 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880T-B701(RTP) | 480 * 800 | 58.94 x 97.80 x 3.2 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B901 | 480 * 800 | 57.14 x 96.85 x 1.80 | 51.84 x 86.4 | SPI + RGB |
| 4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A413(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-A416 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A416(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.3" | PT0434880TC-B101(CTP) | 480 * 800 | 85 x 120 x 3.68 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.5" | PT0454885-A001 | 480 * 854 | 60.62 x 108.25 x 1.9 | 55.44 x 98.637 | MPU / RGB+SPI |
| 5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-A701(RTP) | 800 * 480 | 120.8 x 75.9 x 4.31 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048-B001 | 800 * 480 | 120.7 x 75.8 x 2.9 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-B001(RTP) | 800 * 480 | 120.7 x 75.8 x 4.1 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B001(CTP) | 800 * 480 | 120.8 x 76.0 x 4.13 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B301(CTP) | 800 * 480 | 128.8 x 88.3 x 4.45 | 108.0 x 64.8 | TTL Parallel RGB |
| 7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048T-A308(RTP) | 800 * 480 | 165 x 104.44 x 6.4 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048-A902 | 800 * 480 | 165 x 100 x 6.6 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-A902(RTP) | 800 * 480 | 165 x 100 x 6.6 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-C604(RTP) | 800 * 480 | 164.9 x 100.0 x 5.1 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048TC-C603(CTP) | 800 * 480 | 164.9 x 100.0 x 5.3 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D001 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D002 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-D201(RTP) | 800 * 480 | 164.9 x 100.0 x 7.3 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D204 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D204(RTP) | 800 * 480 | 164.9 x 100.0 x 4.6 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D205 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D205(RTP) | 800 * 480 | 164.9 x 100.0 x 4.7 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D301 | 800 * 480 | 165.0 x 104.4 x 5.2 | 154.08 x 85.92 | MPU |
| 7.0" | PT0708048TC-D202(CTP) | 800 * 480 | 195.60 x 130.00 x 7.95 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 3.5 | 153.6 x 90.0 | LVDS |
| 8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 | 162.0 x 121.5 | TTL Parallel RGB |
| 8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 | 170.40 x 127.80 | LVDS |
Graphic LCD Module product list:
| Display Format Dots x Dots | Model No. | Outline Dimension LCM W x H mm (COG LCD W x H mm) | Viewing Area W x H mm |
| 128 x 32 | PHG1203D1 | 42.0 x 17.66 | 39.0 x 8.66 |
| 128 x 64 | PHG1206A4 | 40.5 x 34.0 (38.3 x 33.0) | 33.8 x 22.2 |
| 128 x 64 | PHG1206E | 42.0 x 30.0 | 37.0 x 20.0 |
| 128 x 64 | PHG12061F2 | 65.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG12061G | 77.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG1206I | 46.1 x 33.0 (43.8 x 30.7) | 39.5 x 20.0 |
| 128 x 64 | PHG12062M | 35.2 x 29.0 (34.0 x 27.8) | 31.0 x 19.0 |
| 128 x 64 | PHG1206Q | 65.0 x 39.15 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG1206S1 | 47.4 x 44.4 (46.0 x 36.0) | 41.8 x 26.1 |
| 128 x 64 | PHG1206X2 | 80.5 x 45.0 (64.0 x 43.0) | 60.0 x 32.6 |
| 128 x 64 | PQG1206B | 93.0 x 70.0 | 70.7 x 38.8 |
| 128 x 80 | PHG1208A1 | 40.5 x 34.0 (38.3 x 33.0) | 35.3 x 24.34 |
| 128 x 128 | PHG1212CW6 | 36.6 x 44.5 (36.5 x 42.5) | 33.5 x 33.5 |
| 128 x 128 | PHG1212G | 46.0 * 54.4 (46.0 * 52.4) | 43.0 x 42.8 |
| 128 x 128 | PHG1212I | 36.6 x 39.3 (34.0 x 37.3) | 28.0 x 28.0 |
| 128 x 128 | PLG1212B | 92.0 x 106.0 | 73.0 x 73.0 |
| 132 x 64 | PHG1306H | 77.0 x 47.5 (75.0 x 45.5) | 72.0 x 36.5 |
Exhibition pictures:
Factory pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
