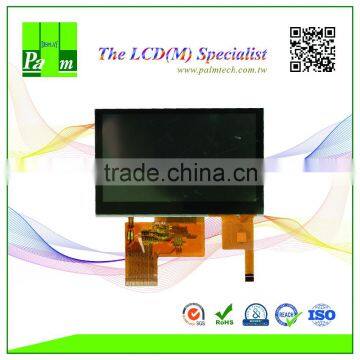

LCD module 480x272 4.3 tft Capacitive touch screen
- Kaohsiung
- T/T
You May Like
-
800x480 Capacitive Touch screen 5 inch tft LCD display module
-
TFT 4.3 inch 480x272 LCD Resistive Touch module
-
Capacitive customized 4.3 480*800 IPS tft LCD module
-
480X272 TTL Parallel RGB interface 4.3 tft lcd display module
-
Capacitive TOUCH customized 4.3 WVGA 480X800 IPS LCD
-
LCD display 4.3 inch Capacitive touch screen TFT 480x272
Product Details
| Place of Origin | Taiwan, China | Brand Name | Palm Technology | |
| Model Number | PT0434827TC-A413 | Type | TFT |
Product Description
https://www.china.cn/product-detail/4-3-TFT-LCD-module-480x272_60531176087.html
4.3 PT0434827TC-A413B TFT LCD module 480x272 with Capacitive touch screen
Key Specifications/Special Features:
TFT Module: 4.3"
Dimensions: 105.50 x 67.20 x 4.40 mm
Active area: 95.04 x 53.85 mm
Number of dots: 480 x 272 dots (RGB)
Dot pitch: 0.198 x 0.198 mm
Viewing angle: 6:00
Resistive or Capacitive touch panels are available
**The real dimensions of the product, welcome to purchase our samples.
*** Price can be discussed by real requirement.
Product List- TFT:
| Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm | Active Area W x H mm | Interface |
| 1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
| 1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
| 2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
| 2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 | 31.68 x 39.60 | MCU / SPI |
| 2.0" | PT0201722T-B606(RTP) | 176 * 220 | 38.5 x 51.15 x 4.1 | 31.68 x 39.60 | MCU / SPI |
| 2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | MCU |
| 2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 | 48.00 x 35.685 | RAW DATA / SERIAL RGB / CCIR |
| 2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
| 2.8" | PT0282432-E501 | 240 * 320 | 50.0 x 69.2 x 2.45 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-E501(RTP) | 240 * 320 | 50.0 x 69.2 x 3.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224T-C601(RTP) | 320 * 240 | 76.9 x 64.0 x 4.2 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-C701(RTP) | 320 * 240 | 76.9 x 63.9 x 4.4 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | MCU / RGB / SPI |
| 3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
| 3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
| 3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
| 4.0" | PT0404880-B001 | 480 * 800 | 57.14 x 96.85 x 2.05 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B701 | 480 * 800 | 58.94 x 97.80 x 2.0 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880T-B701(RTP) | 480 * 800 | 58.94 x 97.80 x 3.2 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B901 | 480 * 800 | 57.14 x 96.85 x 1.80 | 51.84 x 86.4 | SPI + RGB |
| 4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A413(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.3" | PT0434880TC-B101(CTP) | 480 * 800 | 85 x 120 x 3.68 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.5" | PT0454885-A001 | 480 * 854 | 60.62 x 108.25 x 1.9 | 55.44 x 98.637 | MPU / RGB+SPI |
| 5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-A701(RTP) | 800 * 480 | 120.8 x 75.9 x 4.31 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048-B001 | 800 * 480 | 120.7 x 75.8 x 2.9 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-B001(RTP) | 800 * 480 | 120.7 x 75.8 x 4.1 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B001(CTP) | 800 * 480 | 120.8 x 76.0 x 4.13 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B301(CTP) | 800 * 480 | 128.8 x 88.3 x 4.45 | 108.0 x 64.8 | TTL Parallel RGB |
| 7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048T-A308(RTP) | 800 * 480 | 165 x 104.44 x 6.4 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048-A902 | 800 * 480 | 165 x 100 x 6.6 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-A902(RTP) | 800 * 480 | 165 x 100 x 6.6 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-C604(RTP) | 800 * 480 | 164.9 x 100.0 x 5.1 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048TC-C603(CTP) | 800 * 480 | 164.9 x 100.0 x 5.3 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D001 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D002 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-D201(RTP) | 800 * 480 | 164.9 x 100.0 x 7.3 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D204 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D204(RTP) | 800 * 480 | 164.9 x 100.0 x 4.6 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D205 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D205(RTP) | 800 * 480 | 164.9 x 100.0 x 4.7 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D301 | 800 * 480 | 165.0 x 104.4 x 5.2 | 154.08 x 85.92 | MPU |
| 7.0" | PT0708048TC-D202(CTP) | 800 * 480 | 195.60 x 130.00 x 7.95 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 3.5 | 153.6 x 90.0 | LVDS |
| 8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 | 162.0 x 121.5 | TTL Parallel RGB |
| 8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 | 170.40 x 127.80 | LVDS |
| 10.1" | PT10110260-B101 | 1024 * 600 | 235.3 x 143.0 x 4.8 | 222.72 * 125.28 | LVDS |
| 10.1" | PT10110260TC-B101(CTP) | 1024 * 600 | 255.4 x 154.2 x 10.0 | 222.72 * 125.28 | LVDS |
| 10.1" | PT10110260-B201 | 1024 * 600 | 233.70 x 137.70 x 2.60 | 222.72 * 125.28 | LVDS |
| 10.1" | PT101WXGA-B201 | 1280 * 800 | 229.46 x 149.20 x 2.40 | 216.96 * 135.60 | LVDS |
| 10.1" | PT101WXGAT-B201(RTP) | 1280 * 800 | 229.46 x 149.20 x 4.3 max. | 216.96 * 135.60 | LVDS |
| 10.4" | PT104XGA-A001 | 1024 * 768 | 238.6 x 175.8 x 7.5 | 210.4 x 157.8 | LVDS |
| 10.4" | PT104XGATC-A001(CTP) | 1024 * 768 | 264.60 x 204.0 x 9.99 | 210.4 x 157.8 | LVDS |
| 12.1" | PT121XGA-A001 | 1024 * 768 | 260.5 x 240 x 7.2 | 245.76 x 184.32 | LVDS |
Exhibition pictures:
Factory pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
