FSTN STN 128x64 dot matrix graphic lcd display
- 100000 Piece / Pieces per Month
- Kaohsiung
- T/T
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | Palm Technology | |
| Model Number | PHG12061F2 | Type | Graphic |
Product Description
https://www.china.cn/product-detail/FSTN-STN-128x64-dot-matrix-graphic_60514034182.html

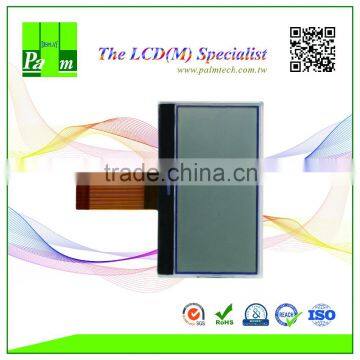

product: 128 x 64 FSTN positive Graphic LCD module PHG12061F2
Key Specifications/Special Features:
LCD type: FSTN, Transflective and Positive type.
Number of dots: 128 x 64 dots
Module dimensions: 65.0 x 39.2/ 63.0 x 37.7 mm
Viewing area: 60.0 x 29.0 mm
Dot size: 0.38 x 0.38 mm
Dot pitch: 0.41 x 0.41 mm
Power supply: +3V
**The real dimensions of the product, welcome to purchase our samples.
*** Price can be discussed by real requirement.
Product List- Graphic Type LCD Module:
| Display Format Dots x Dots | Model No. | Outline Dimension LCM W x H mm (COG LCD W x H mm) | Viewing Area W x H mm | Dot Size W x H mm | Dot Pitch W x H mm |
| 128 x 32 | PHG1203D1 | 42.0 x 17.66 | 39.0 x 8.66 | 0.22 x 0.22 | 0.24 x 0.24 |
| 128 x 64 | PHG1206A4 | 40.5 x 34.0 (38.3 x 33.0) | 33.8 x 22.2 | 0.225 x 0.285 | 0.24 x 0.30 |
| 128 x 64 | PHG1206E | 42.0 x 30.0 | 37.0 x 20.0 | 0.24 x 0.25 | 0.27 x 0.28 |
| 128 x 64 | PHG12061F2 | 65.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 | 0.38 x 0.38 | 0.41 x 0.41 |
| 128 x 64 | PHG12061G | 77.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 | 0.38 x 0.38 | 0.41 x 0.41 |
| 128 x 64 | PHG1206I | 46.1 x 33.0 (43.8 x 30.7) | 39.5 x 20.0 | 0.245 x 0.245 | 0.27 x 0.27 |
| 128 x 64 | PHG12062M | 35.2 x 29.0 (34.0 x 27.8) | 31.0 x 19.0 | 0.2 x 0.24 | 0.22 x 0.26 |
| 128 x 64 | PHG1206Q | 65.0 x 39.15 (63.0 x 37.7) | 60.0 x 29.0 | 0.38 x 0.38 | 0.41 x 0.41 |
| 128 x 64 | PHG1206S1 | 47.4 x 44.4 (46.0 x 36.0) | 41.8 x 26.1 | 0.29 x 0.34 | 0.307 x 0.357 |
| 128 x 64 | PHG1206X2 | 80.5 x 45.0 (64.0 x 43.0) | 60.0 x 32.6 | 0.40 x 0.40 | 0.43 x 0.43 |
| 128 x 64 | PHG12A06A | 74.8 x 54.5 (63.0 x 42.5) | 59.0 x 32.0 | 0.40 x 0.40 | 0.43 x 0.43 |
| 128 x 64 | PHG12A06B | 78.0 x 50.5 (68.0 x 47.0) | 63.84 x 35.68 | 0.44 x 0.46 | 0.46 x 0.48 |
| 128 x 64 | PHG12A06C | 38.2 x 27.13 (36.0 x 26.0) | 34.0 x 18.5 | 0.21 x 0.233 | 0.235 x 0.258 |
| 128 x 64 | PHG12A06D | 35.2 x 33.0 (33.0 x 31.0) | 30.0 x 24.0 | 0.1809 x 0.298 | 0.2109 x 0.328 |
| 128 x 64 | PQG1206B | 93.0 x 70.0 | 70.7 x 38.8 | 0.48 x 0.48 | 0.52 x 0.52 |
| 128 x 80 | PHG1208A1 | 40.5 x 34.0 (38.3 x 33.0) | 35.3 x 24.34 | 0.259 x 0.259 | 0.274 x 0.274 |
| 128 x 128 | PHG1212CW6 | 36.6 x 44.5 (36.5 x 42.5) | 33.5 x 33.5 | 0.20 x 0.215 | 0.22 x 0.235 |
| 128 x 128 | PHG1212G | 46.0 * 54.4 (46.0 * 52.4) | 43.0 x 42.8 | 0.275 x 0.285 | 0.29 x 0.30 |
| 128 x 128 | PHG1212I | 36.6 x 39.3 (34.0 x 37.3) | 28.0 x 28.0 | 0.182 x 0.182 | 0.202 x 0.202 |
| 128 x 128 | PLG1212B | 92.0 x 106.0 | 73.0 x 73.0 | 0.50 x 0.50 | 0.55 x 0.55 |
| 132 x 64 | PHG1306H | 77.0 x 47.5 (75.0 x 45.5) | 72.0 x 36.5 | 0.5 x 0.5 | 0.52 x 0.52 |
| 240 x 64 | PBG2406A | 125.0 x 60.0 | 111.6 x 37.0 | 0.41 x 0.47 | 0.44 x 0.50 |
| 240 x 64 | PQG2406A | 180.0 x 65.0 | 132.0 x 39.0 | 0.49 x 0.49 | 0.53 x 0.53 |
| 240 x 128 | PQG2412A | 144.0 x 104.0 | 114.0 x 64.0 | 0.40 x 0.40 | 0.45 x 0.45 |
| 240 x 160 | PHG2416A1 | 69.1 x 52.4 (69.1 x 51.4) | 60.6 x 41.4 | 0.22 x 0.22 | 0.24 x 0.24 |
| 240 x 160 | PQG2416A2 | 77.4 x 61.0 | 73.4 x 48.0 | 0.261 x 0.261 | 0.281 x 0.281 |
| 240 x 320 (Duty :1/320) | PMGG2432A | 83.3 x 92.1 | 60.6 x 79.8 | 0.225 x 0.225 | 0.24 x 0.24 |
| 320 x 240 | PFG3224A | 167.1 x 109.0 | 122.0 x 92.0 | 0.33 x 0.33 | 0.36 x 0.36 |
| 320 x 240 (Duty : 1/240) | PMGG2432B | 92.1 x 83.3 | 79.8 x 60.6 | 0.225 x 0.225 | 0.24 x 0.24 |
| 320 x 240 (Duty : 1/240) | PMGG2432C | 92.1 x 83.3 | 79.8 x 60.6 | 0.225 x 0.225 | 0.24 x 0.24 |
Product List- TFT:
| Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm |
| 1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 |
| 1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 |
| 2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 |
| 2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 |
| 2.0" | PT0201722T-B606(RTP) | 176 * 220 | 38.5 x 51.15 x 4.1 |
| 2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 |
| 2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 |
| 2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 |
| 2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 |
| 2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 |
| 2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 |
| 2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 |
| 2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 |
| 2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 |
| 2.8" | PT0282432-E501 | 240 * 320 | 50.0 x 69.2 x 2.45 |
| 2.8" | PT0282432T-E501(RTP) | 240 * 320 | 50.0 x 69.2 x 3.6 |
| 3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 |
| 3.5" | PT0353224T-C601(RTP) | 320 * 240 | 76.9 x 64.0 x 4.2 |
| 3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 |
| 3.5" | PT0353224T-C701(RTP) | 320 * 240 | 76.9 x 63.9 x 4.4 |
| 3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 |
| 3.5" | PT0353224T-D102(RTP) | 320 * 240 | 76.9 x 63.9 x 4.3 |
| 3.5" | PT0353224-E201 | 320 * 240 | 76.9 x 63.9 x 3.15 |
| 3.5" | PT0353224T-E201(RTP) | 320 * 240 | 76.9 x 63.9 x 4.25 |
| 3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 |
| 3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 |
| 3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 |
| 3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 |
| 3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 |
| 4.0" | PT0404880-B001 | 480 * 800 | 57.14 x 96.85 x 2.05 |
| 4.0" | PT0404880-B701 | 480 * 800 | 58.94 x 97.80 x 2.0 |
| 4.0" | PT0404880T-B701(RTP) | 480 * 800 | 58.94 x 97.80 x 3.2 |
| 4.0" | PT0404880-B901 | 480 * 800 | 57.14 x 96.85 x 1.80 |
| 4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 |
| 4.3" | PT0434827T-A413(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 |
| 4.3" | PT0434827-A416 | 480 * 272 | 105.5 x 67.2 x 2.9 |
| 4.3" | PT0434827T-A416(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 |
| 4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 |
| 4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 |
| 4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 |
| 4.3" | PT0434880TC-B101(CTP) | 480 * 800 | 85 x 120 x 3.68 |
| 4.5" | PT0454885-A001 | 480 * 854 | 60.62 x 108.25 x 1.9 |
| 5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 |
| 5.0" | PT0508048T-A701(RTP) | 800 * 480 | 120.8 x 75.9 x 4.31 |
| 5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 |
| 5.0" | PT0508048-B001 | 800 * 480 | 120.7 x 75.8 x 2.9 |
| 5.0" | PT0508048T-B001(RTP) | 800 * 480 | 120.7 x 75.8 x 4.1 |
| 5.0" | PT0508048TC-B001(CTP) | 800 * 480 | 120.8 x 76.0 x 4.13 |
| 5.0" | PT0508048TC-B301(CTP) | 800 * 480 | 128.8 x 88.3 x 4.45 |
| 7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 |
| 7.0" | PT0708048T-A308(RTP) | 800 * 480 | 165 x 104.44 x 6.4 |
| 7.0" | PT0708048-A902 | 800 * 480 | 165 x 100 x 6.6 max. |
| 7.0" | PT0708048T-A902(RTP) | 800 * 480 | 165 x 100 x 6.6 |
| 7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 |
| 7.0" | PT0708048T-C604(RTP) | 800 * 480 | 164.9 x 100.0 x 5.1 max. |
| 7.0" | PT0708048TC-C603(CTP) | 800 * 480 | 164.9 x 100.0 x 5.3 max. |
| 7.0" | PT0708048-D001 | 800 * 480 | 164.9 x 100.0 x 5.7 |
| 7.0" | PT0708048-D002 | 800 * 480 | 164.9 x 100.0 x 5.7 |
| 7.0" | PT0708048T-D201(RTP) | 800 * 480 | 164.9 x 100.0 x 7.3 |
| 7.0" | PT0708048-D204 | 800 * 480 | 164.9 x 100.0 x 3.5 |
| 7.0" | PT0708048T-D204(RTP) | 800 * 480 | 164.9 x 100.0 x 4.6 |
| 7.0" | PT0708048TC-D204(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 |
| 7.0" | PT0708048TC-D204T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 |
| 7.0" | PT0708048-D205 | 800 * 480 | 164.9 x 100.0 x 3.5 |
| 7.0" | PT0708048T-D205(RTP) | 800 * 480 | 164.9 x 100.0 x 4.7 |
| 7.0" | PT0708048TC-D205(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 |
| 7.0" | PT0708048TC-D205T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 |
| 7.0" | PT0708048-D301 | 800 * 480 | 165.0 x 104.4 x 5.2 |
| 7.0" | PT0708048TC-D202(CTP) | 800 * 480 | 195.60 x 130.00 x 7.95 |
| 7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 3.5 |
| 8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 |
| 8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 |
| 10.1" | PT10110260-B101 | 1024 * 600 | 235.3 x 143.0 x 4.8 |
| 10.1" | PT10110260TC-B101(CTP) | 1024 * 600 | 255.4 x 154.2 x 10.0 |
| 10.1" | PT10110260-B201 | 1024 * 600 | 233.70 x 137.70 x 2.60 |
| 10.1" | PT101WXGA-A301 | 1280 * 800 | 229.46 x 149.1 x 2.5 |
| 10.1" | PT101WXGA-B001 | 1280 * 800 | 229.46 x 149.2 x 2.8 |
| 10.1" | PT101WXGA-B201 | 1280 * 800 | 229.46 x 149.20 x 2.40 |
| 10.1" | PT101WXGAT-B201(RTP) | 1280 * 800 | 229.46 x 149.20 x 4.3 max. |
| 10.4" | PT104XGA-A001 | 1024 * 768 | 238.6 x 175.8 x 7.5 |
| 10.4" | PT104XGATC-A001(CTP) | 1024 * 768 | 264.60 x 204.0 x 9.99 |
| 12.1" | PT121XGA-A001 | 1024 * 768 | 260.5 x 240 x 7.2 |
** For more product details, please kindly feel free to contact with us!
Exhibition pictures:
Factory pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
