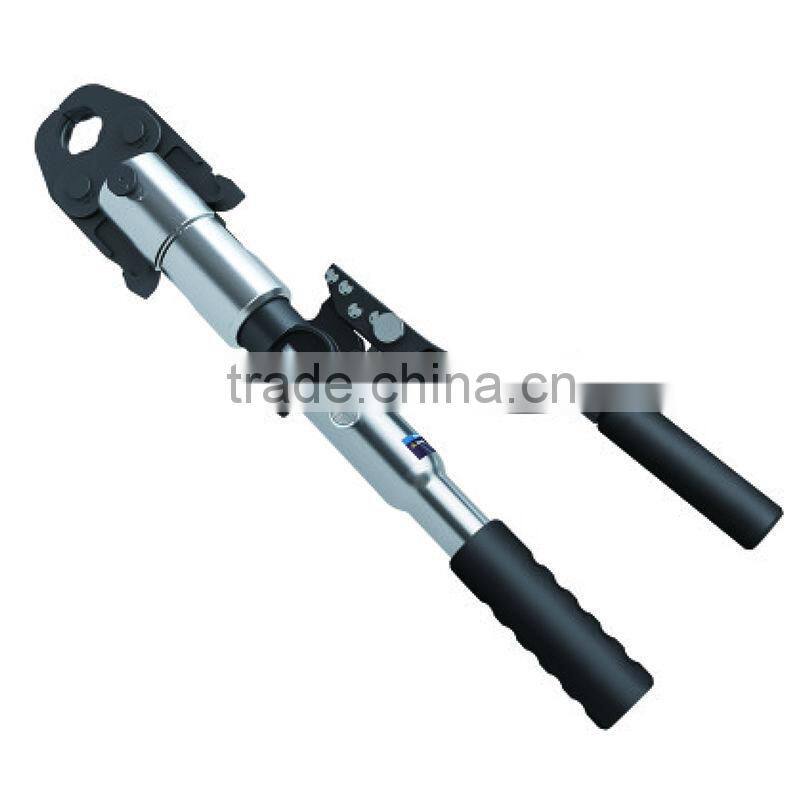

HZ-1550 Hydraulic Pressing Tool With Interchangeable Head and Crimp Die
- Ningbo Shanghai Wenzhou
- T/T Credit Card PayPal
You May Like
-
HT-1632 Hydraulic Pipe Crimping Tool for Conjoining Fittings With Pipes
-
WXW-40A Multi-function Electro-Hydraulic Pipe Bender
-
WXWQ Series Pneumatic Pipe Bender
-
WXW 12-16Q Pneumatic Hydraulic Pipe Bender
-
HZ-1632 Pipe Crimp Tools With Safety System Inside and 350 Angle Rotary Crimping Head
-
HT-1550 Pipe Pressing Tool With Piston Stroke of 40mm and Straight-insert Rotary Lock Type Clamp Head Pin
Product Details
| Place of Origin | Zhejiang, China | Brand Name | IWISS | |
| Model Number | HZ-1550 | Type | Hydraulic Crimping Tools |
Product Description
Specifications
HZ-1550 Hydraulic Pressing Tool with interchangeable head and crimp die,working pressure of 52Mpa,piston stroke of 40mmHZ-1550 Hydraulic Pressing Tool with interchangeable head and crimp die,working pressure of 52Mpa,piston stroke of 40mm
Technical Parameters: | |
Rated clamping force | 32KN |
Rated working pressure | 52Mpa |
Piston stroke | 40mm |
Working temperature | -20°C~40°C |
Accessories | |
Pressing jaws | See below sheet for selection |

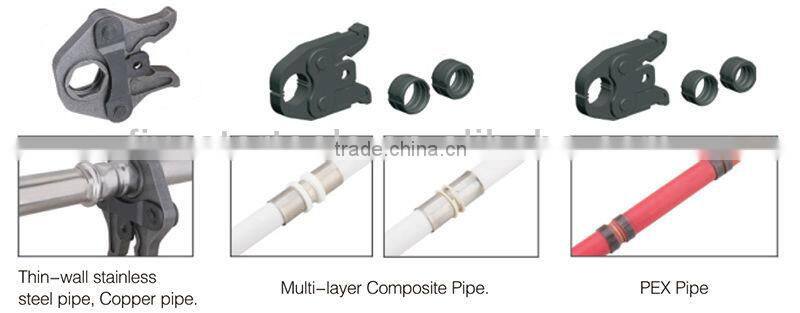

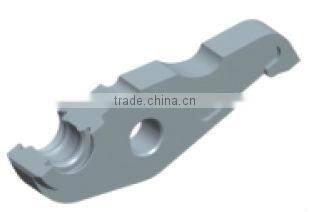

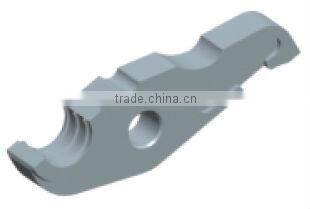

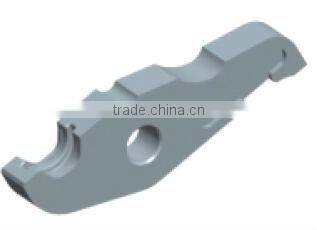

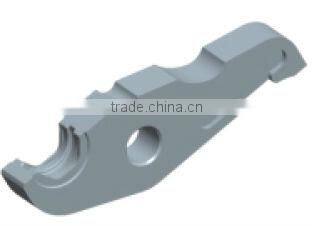

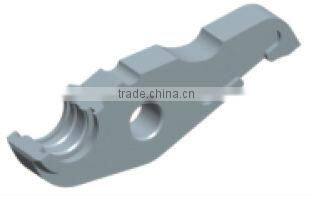

Pressing Jaw for selection
| TH Type | Jaw Size | Art No. |
Pressing Jaw | TH16 | 800010 | |
TH20 | 800020 | ||
Universal Jaw+ Interchangeable die | TH26 | 800030 | |
TH32 | 800040 | ||
| | U Type | Jaw Size | Art No. |
Pressing Jaw | U16 | 800050 | |
U20 | 800060 | ||
Universal Jaw+ Interchangeable die | U25 | 800070 | |
U32 | 800080 | ||
| | H Type | Jaw Size | Art No. |
Pressing Jaw | H16 | 800090 | |
H20 | 800100 | ||
Universal Jaw+ Interchangeable die | H25 | 800110 | |
H32 | 800120 | ||
| | B Type | Jaw Size | Art No. |
Pressing Jaw | B16 | 800130 | |
B20 | 800140 | ||
Universal Jaw+ Interchangeable die | B26 | 800150 | |
B32 | 800160 | ||
| | M Type | Jaw Size | Art No. |
Pressing Jaw | M12 | 800170 | |
M15 | 800180 | ||
M18 | 800190 | ||
M22 | 800200 | ||
Universal Jaw+ Interchangeable die | M28 | 800210 | |
M35 | 800220 | ||
M42 | 800230 | ||
M54 | 800240 | ||
| | V Type | Jaw Size | Art No. |
Pressing Jaw | V15 | 800250 | |
V18 | 800260 | ||
V22 | 800270 | ||
V28 | 800280 | ||
Universal Jaw+ Interchangeable die | V35 | 800290 | |
V42 | 800300 | ||
V54 | 800310 | ||
| | VP Type | Jaw Size | Art No. |
Pressing Jaw | VP16 | 800320 | |
VP20 | 800330 | ||
Universal Jaw+ Interchangeable die | VP25 | 800340 | |
VP32 | 800350 | ||
| | G Type | Jaw Size | Art No. |
Pressing Jaw | G16 | 800360 | |
G20 | 800370 | ||
Universal Jaw+ Interchangeable die | G26 | 800380 | |
G32 | 800390 | ||
| | RF Type | Jaw Size | Art No. |
Pressing Jaw | RF12 | 800400 | |
RF16 | 800410 | ||
Universal Jaw+ Interchangeable die | RF20 | 800420 | |
RF25 | 800430 | ||
| | SV Type | Jaw Size | Art No. |
Pressing Jaw | SV15 | 800440 | |
SV20 | 800450 | ||
Universal Jaw+ Interchangeable die | SV25 | 800460 | |
SV40 | 800470 | ||
SV50 | 800480 |
