Huachuan Large Flexibility Hanging Chain Shot Blasting Machine
- QingDao
- T/T
You May Like
-
Hanging Type Oxygen Bomb Shot Blasting Macine
-
Qingdao Vertical Shot Blasting Machine for Large Tank
-
Car Type Shot Blasting Cleaning Machine-Q3610 Made in China
-
Horizontial Movable Large Steel Deck Burnishing Machine
-
Tumble Belt Abrasive Blasting Machine / Rust Derusting Machine
-
Hooking Shot Blasting Machine Overhead Rail Spinner Hanger Details
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | qdhc | Model Number | Q5810 | |
| Voltage | 110V-440V | Power(W) | 160KW | |
| Dimension(L*W*H) | customized | Weight | customized | |
| Certification | CE,ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Huachuan large flexibility hanging chain shot blasting machine
1.Name: Q5810 pendant chain step-type cleaner for surface cleaning of castings and for pieces and structures in batch production
2. Use
Q485 type is used for surface cleaning, dust removing, and surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for different production scale, can be stand-alone use and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.
3. Feature
1. no-pit, no change of track, compact structure
2. High impeller blasting volume
3. High cleaning efficiency, large effective space
4. No-pit form, has no special demand on structure of work piece
5. Suitable for machinery manufacture and foundry industry
6. With dust-collection device and separation device, can be operated easily and also with good condition
7. Convenient maintainance.
4.Certification: CE,SGS,ISO9001
5. Technical Data
Serial number | NAME | Q483 | Q485 | Q4810 | Q583 | Q5810 | |
| 1 | Maximum weight of single piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Piece size | mm | Φ1000× 1400 | Φ1200×1700 | Φ700×2400 | Φ 1000*2150 | Φ 750*2400 |
| 3 | Abrasive flow rate | kg/min | 2×250 | 3×250 | 6×360 | 4*250 | 6*360 |
| 4 | Productivity | hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of pendant chain | m/min | 2.44 | 7.34 | 2.44 | frequency conversion | |
| 6 | lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | |
| 7 | Total ventilation capacity | m ³ /h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | power | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimensions | mm | 8450×5350Χ5003 | 12235Χ5410Χ9411 | 4500×5350×5003 | 18000*5960*6440 | 17700*9615*10000 |
| 10 | Gross weiht of machine | kg | 11150 | 18365 | 11300 | 32000 | 32500 |

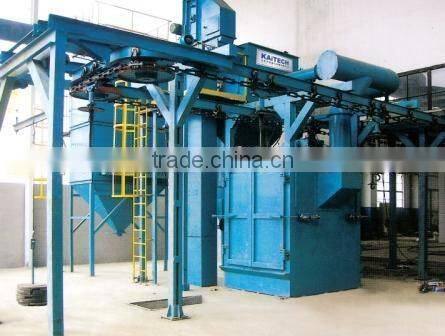

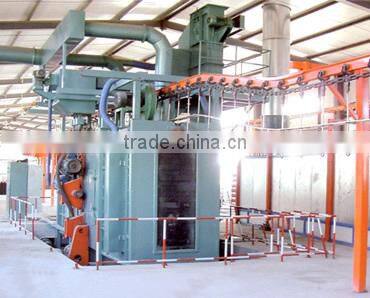

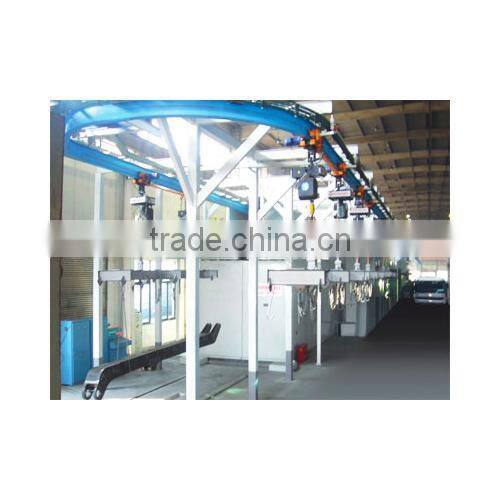

6. Picture presentation
7. Factory show figure
8. Shipment figure
If you are interested in this machine, Please let me know.cp
