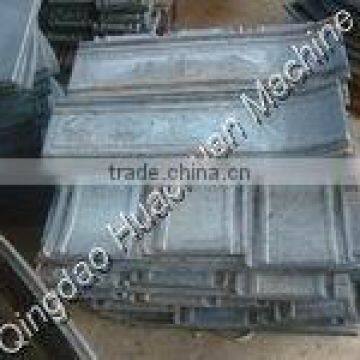

Side guard liner of shot blasting machine

Side guard liner of shot blasting machine

 Production Description

Working principle

Shot blasting machine, in the cleaning process ,the adjustable speed conveyor roller  is controlled by the electric,it will transport the steel workpieces or steel projectile body  to the blasting area of cleaning machine room , its whole body on each side is hit and friction by the strong intensive projectile from different coordinate orientation , so that the oxide scale, rust and dirt on the rapidly falling, get some roughness and smooth steel surface ,on both sides of the exits and entrances of outdoor ,roller loadand unload the workpieces. Projectiles falled above the steel and  dust and rust is purged by the venting device , scattered down the pill dust mixture is transported by screw conveyor into the chamber funnel, vertical and horizontal screw conveyor brings together   below the lelevator, then rise to separater on  the upper part , purity projectile after separation drops in the separator hopper for recycling shot blasting. the dust produced during the shot blast cleaning  is sent to the dust removal system by the exhaust pipe , treated air is discharge to atmosphere,the granular dust is collected .

Where is it used:

1. Steel plate surface cleaning.

2. Derusting  for the surface of steel structure.

3. Surface cleaning of steel pipe.

4. Stone floor surface treatment.

5. Cleaning up the beam steel or other metal structure workpieces .

6. Cleaning up the heat metal workpieces.

7. Mantenance and derusting of hull surface

8. Cleaning up the beam steel or other metal structure workpieces of highways.

9. Other surface treatment........

 Technical parameter

 Our factory

We are QINGDAO HUACHUAN MACHINERY CO., LTD.  Located in the machinery manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers such as: plate vulcanizing machine, Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc);

Our clients

Our Certificate

 Marketing Area

 Our Connection Ways

Our company has rich technical force ,advanced equipment ability ,complete quality testing means,and we have steady , long-term fixed cooperation relationship successively with who make trade in the whole country , casting , gear wheel , shipbuilding , car ,spring , tool , steel construction ,container-making . And our company has been favorably noticed unanimously by the masses of cooperation users and trusted.We , while developing ,the products are updated ,F

rom designing,feed ,manufacturing ,quality testing to sales ,have realized network management all in return.The main products are as follows : Q31 , Q32 , Q35 ,Q36,Q37,LQ s,QH ,QXY , series shot blasting machine.

If you are interested in our products,please let me know.
