Resin Sand Reclaiming and Molding Line for Sale

Production principle:

Lost foam foundry machinery is also called EPC production line.The first made of foam plastic model according to the requirement of process, coated with a special high temperature resistant coating,after drying, placed in a special sand box, and then according to the requirement of process filled with dry sand, using 3D vibration compaction, vacuum pumpingcasting metal liquid, this model for gasification disappears, the liquid metalreplacement model

replicate the same, and foam plastic model of casting.

Technological process

A. The production of plastic foam epc;

B. Combination of gating system;

C. Gasification die surface spray brush special refractory coating and drying;

D. The special layer sand box is arranged on the three-dimensional vibrationbench;

E. Fill in the bottom sand (dry quartz sand vibration compaction, scraping);

F. The gasification model drying is placed in the bottom sand, according to the requirement of process filled with dry sand vibration, numerical controlappropriate time, then scraping the box mouth;

G. Covered with plastic film opening box, placed on the pouring cup, starting the vacuum system, the dry sand fastening after molding, pouring, gasification modeldisappeared, replaced the position of liquid metal.H, release vacuum, at the same time casting condensation rear box, the casting is taken out from the loosein quartz sand.

Product advantages

The disappearance of sand casting casting compared with traditional has the following advantages:

1. Lost foam casting does not require typing and the lower core, so it is especially suitable for the complex geometry, the traditional casting difficult to complete thebox, shell castings, castings of bobbin.

2. EPC casting with dry sand buried model, can be used repeatedly, industrial waste less, the cost is obviously reduced.

3. Lost foam casting no burr, clean working hours can be reduced more than 80%.

4. Disappear can joint use casting, not only can make the cast iron, ductile iron,can also be cast steel, so Xiang Linghuo, wide scope of application.

5. The EPC is not only suitable for casting large batch, mechanize operation, also suitable for small batch product manual mosaic model.

6. The EPC if investment in place, can achieve the air clean, no sand ground, low labor intensity, working environment is good, will be the male dominated industrybecomes to women dominated industry.

7. The EPC has cancelled the molding procedures, there is a certain culture level,after a short training can become skilled workers, so the strength, especially forthe regions and enterprises lack of technology.

8. Disappeared for group casting casting, dry sand buried sand removal easier,in some castings can also be carried out according to the use of residual heat treatment.

9. The EPC is not only suitable for medium and small, more applicable to do large castings, such as: the machine bed, large diameter pipe, big cold die parts, large mine equipment fittings, because the model of short production cycle, low cost,the production cycle is short, so it was particularly well received.

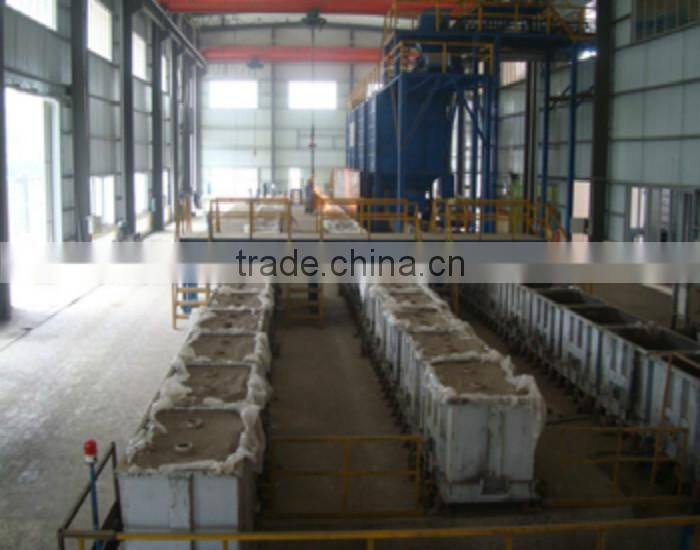

Product display

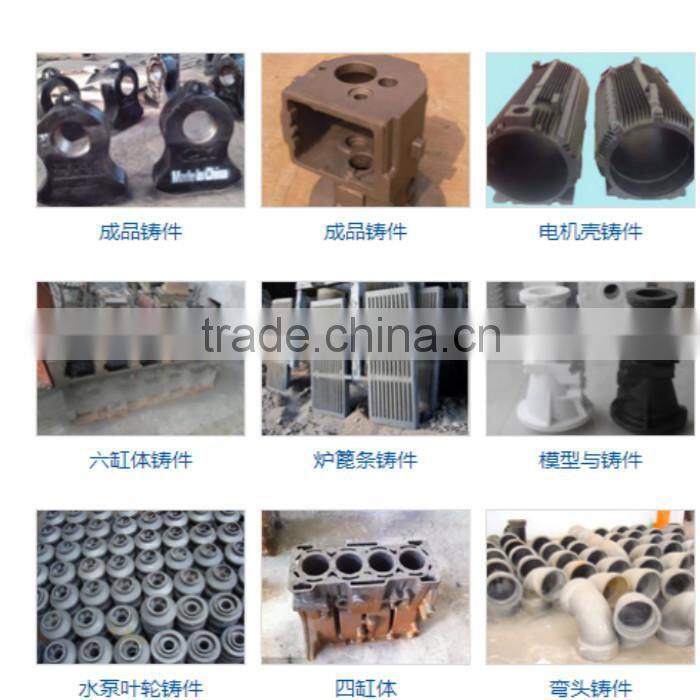

  Casting with the model

We are the biggest manufacturer of casting machinery with over ten years experiences in China.

All of our products have passed ISO and CE international standards.They have been exported tomore than 30 countries and regions and got good comments from domestic and abroad users.

1.Pre-sale services:

Provide the consultation of the equipment. According to the clients’ special requirement, offering the reasonable plan helping to select the equipment.Welcome to visit our factory.

2.Services during the sales:

Inspect the machine before leaving the factory.Oversea install and debug the equipment. Train the first-line operator.

3.After sale services:

provide technical exchanging and timely problem solving support.

1.Q:Are you a factory or trading company

   A:We are a factory

2.Q:Where is your factory located?How can I visit there.

   A:Our factory is located in Qingdao China.You are warmly welcome to visit us.

3.Q:How does your factory  do regarding quality control?

   A: Quality is priority.We always attach great importance to quality.Our factory has gained      CE/ISO certifications.

We promiss:

                    Same price ,with best quality,

                                         Same quality,with best price.

If you are interested in the lost foam foundry machinery,please let me know.
