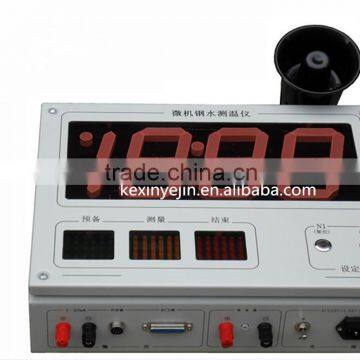

Hot sale hanging molten steel microcomputer digital thermometer 2.3 inches

This instrument can provide s / B / R / WRe3/25 of four kinds of indexing for the user to choose, can be equipped with fast thermocouple on the liquid metal fast and accurate temperature measurement, can also be equipped with continuous industrial thermocouple temperature measurement. Instrument with microprocessor as the core, the analog circuit for zero, full range, cold end temperature automatic calibration; using precision reference and software processing technology to ensure the accuracy and reliability of the instrument, the use of double integral A/D converter enhanced anti-interference ability. Can be in the field of industrial environment and high temperature conditions for long-term automatic reliable operation, is China's metallurgical, nonferrous metals, casting machinery and other industries the most ideal temperature measurement instrument.

1 The measurement range

2.Accuracy class:0.2
3 Digital display: uses four bits and half red high brightness LED digital tube, the word high 58mm;
4 Clock adjustment: N1, N2;
5 State display: uses  light emitting diode matrix ;
6 The alarm of temperature measuring end:12Cm round horn lounspeakers, AC bell (optional)
7 Working conditions     Working temperature: 0 ℃  -50 ℃ , relative humidity, 20%~ 90%
                                      Storage temperature: -20 ℃ ~ +60 ℃ ; relative humidity is not more than 90%
8 Power supply :AC 220V  ± 10%, 50Hz ± 5%; power consumption of about 30~100VA
9 Dimensions:350mm × 255mm × 105mm (width × height × depth)   Wall-mounted installation

The output interface and other functions (which are not in the instrument, customer requirements can be customized)
Match output interface: BCD code parallel output, 4-20mA analog output, etc.
Voice report number: temperature value display with human voice count off

We mainly produces temperature sensors,various composite probe and peripheral products used in steel making and casting.Our rich experience of producing,advanced technical equipments,scientific management and strong technology force ensure the leading edge in China.Our products are  sold to Russia,Pakistan,Vietnam,South Korea and many other countries.Kexin sincerely hope to work together with you

1. We can provide a variety of protective cap . (Fe,Al,or plastic)

2. Provided that matches the thermocouple plug .
