CYCLENPO Wholesale Small 3.7v 35C Li-ion Polymer Battery 1300mah 6020122 Slim Lipo Battery Cell

FOB Price

US$ 1 - 50 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Cyclen energy,Clean your life.

Conpany introduction

Quick Details

Place of Origin:	shenzhen China (Mainland)	Brand Name;	Cyclenpo	Model Number:	p0502030
Type:	Li-polymer	Nominal Voltage:	11.1v	Size:	according to customer requirement
Nominal Capacity:	1300mah	color:	BLACK ,Silver	battery cell:	li polymer
Material:	li-polymer battery	life cycle:	more than 500 times

1.Package Specification :

No	Item	Specifications
1.0	Combination method	3S1P
1.1	Combination standard	Capcity difference ≤ 40mAh
		Resistance different ≤ 0.5mΩ
		Voltage difference ≤ 10mV
1.2	Norminal capcity	1300mAh @ 0.5C Discharge
1.3	Minmum capcity	1250mAh@ 0.5C Discharge
1.4	Nominal Voltage	11.1V
1.5	Standard Charging Current	1C CC (constant current ) charged to 12.6V,then CV constant voltage 12.6V charge till charge current declinet ≤ 0.05C at 23 ℃
1.6	Max, Charging Current	2C CC(constant current ) charged to 12.6V, then CV (constant voltage 12.6V ) charge till charge current decline to ≤ 0.05C at 23 ℃
1.7	PACK voltage (As of shipment)	11.4- 11.7V ( cell 3.8 - 3.9V )
1.8	Internal impedance	≤ 55.0mΩ
1.9	Max dimensions	6.5 21.0 130.0 / 13.5 21.0 130.0 (TWH)
1.10	Pack weight	Max : 122.0g
1.11	Storage temperature	-10 ℃- 45 ℃
1.12

1.Specifications :

6020122 li po battery1300mah 11.1v
1.Battery manufacturer
2.Environment friendly
3.High working voltage

4.CYCLENPO wholesale small 3.7v 35C li-ion polymer battery 1300mah 6020122 slim lipo battery cell

2.Performance Date :

No	Item		Criterion	Test Method
2.1	C-rate characteristics	1C	≥97%	Test Temperature at 23 ±3℃ Charge :1C,CC /CV.12.6V,current ≤0.05C cut-off Discharge: Each rate,CC, 9.0V cut-off
		10C	≥95%
		15C	≥90%
		20C	≥85%
2.2	Temperature Dependence of capacity	60℃	≥95%	Charge:1C,CC/CV ,12.6V,current ≤0.05C cut-off,at 23±3℃ Discharge:0.2C,CC,9.0V cut-off at setting temperature Interval for temperature's charge is 2Hrs
		45℃	≥97%
		23℃	100%
		0℃	≥80%
		-20℃	≥80%
2.3	Cycle Life Characteristics		≥300	Capcity ≥ 840mAh Charge :1C CC/CV, 12.6v,0.03C cut-off Discharge :20C CC9.0V cut-off
2.4	Storage Characteristics Recovery Capcity	six months at 23℃	≥90%	On a storage Cell state is 40% - 60% charge (3.7 - 3.9V )
		three months at 45℃	≥80%
		one month at 60℃	≥80%

Certificate

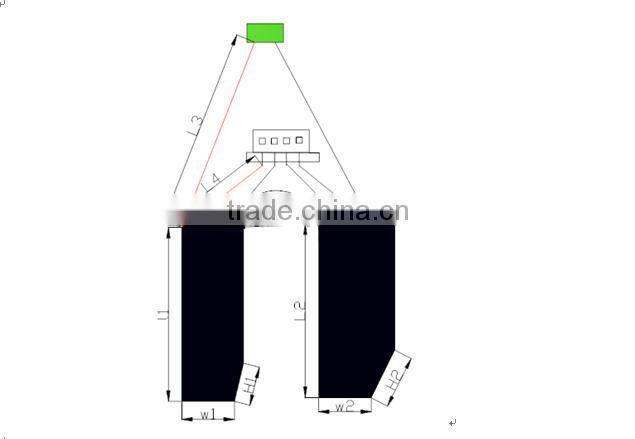

3.Pack drawing :

Exhibition

4.Safty Permformance :

No	Item	Criterion	Test method
4.1	Overcharge Test	No fire ,No explosion	0.5CmA,CC,3.0V/PCS Cut-off 3C,CC/CV,10V at 23±3℃;When the capacity reach 2.5C or time reach 60 min , end test.
4.2	Over discharge Test	No fire, No explosion	Full charge at 23±3℃ 0.5CmA,CC,0V Cut-off
4.3	Tack Through	No fire ,No explosion	Full charge at 23 ± 3℃ .The tack is thitted through the battery by hammer
4.4	Short circuiting Test	No fore ,No explosion and the temperature of battery ≤ 150℃	After standard charge, the battery shall be subjected to a short- sircuit conditions with a wire of resistance less than 50mΩ , the end of battery voltage less than 0.1V or superficical temperatue of battery is 25 ± 5℃

5. shipment :

Transport
