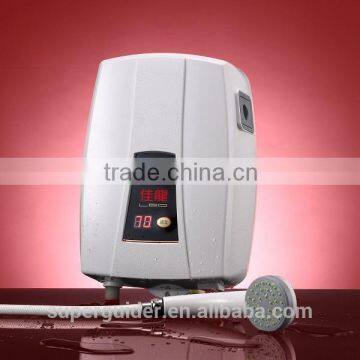

electric instant bathroom shower head water heater

electric instant bathroom shower head water heater

Super Guider is the first in the World to adopt Hall Effect Sensor IC in electric water heater; this revolutionary breakthrough technique enables long-life and enhanced water flow.

• 7 color flashing LED makes your shower more delightful.
• Power auto cuts off at 75°C, auto restarts heating at 40°C.
• Low startup water pressure, high water pressure endurable.
• Easy operation with single-button multistage temperature adjustment.
• Hall Effect Sensor IC technique implanted for long-life and enhanced water flow.
• Space saving size and light weight.
• Available for washing, showering and bathing.
• Splash proof design (IP24) isolates electricity from water.
• Fire retardant materials and high pressure tolerance design.
• Pressure relief system prevent harm incurred by excessive water pressure at 7 kgf/cm2 ± 0.5.
• Auto cut-off of power supply device averts damage caused by abnormally high temperature.
• Water overflow system equipped in heating element tank avoids malfunction when heating with short water supply.
• 2.2KW~9.9KW models.
• Optional:Super Guider electric leakage circuit breaker.

Installation

• Install the unit on the wall in an upright position; avoid lying down or upside down.
• There are 2 installation methods: single point usage and multipoint usage. Note: former option can lower the possibility of malfunction and extend the life span of unit.
• Install cold water valve and a swing check valve in the supply pipe work to prevent back flow.
• Link the shower head and the water heater with the hose provided.
• For first time use after installation, please allow water to flow into water heater so that the water heater contains water before electricity is connected, at the same time, it can help to clean impurities from pipe line.
• Install No Fuse Breaker (40A) in accordance with amperage required for the model to prevent electrical overloads.
• To comply with Electrical Regulation, it is highly recommended to install Super Guider’s leakage circuit breaker in switchboard or next to water heater.
• Power cord entry points are on the top and on the side of the base brim of water heater unit, which needs to be cut off to extend out the cord.
• Route the cords (8mm² standard cords according to model for safety purposes) into water heater and connect the earth cord to terminal “E”, neutral cord to terminal “N”, live cord to terminal to “L”.
• NOTE: the water heater must be earthed.
• Turn on electric supply at the isolating switch.

 Unit Installation Steps

•  Make sure it is flat on the wall surface that you want to install the water heater on. Install it using the install sticker and screws provided. Space for each side of the sticker must be at least 25cm.
• Make sure no cables or pipes hidden in the wall. Drill the wall for indicated holes. Be cautious when using power tools near water.
• Screw the bolts provided into the holes on the wall.
• Attach the bracket to the bolts with screws supplied.
• Hook up the water heater and nail on the fixing hole.

Super Guider is one of the leading brands of electric water heater in Taiwan since 1981, throughout the years, not only is well-known by domestic customers, but also has won warm praise from worldwide customers.

30 years of professional, Super Guider has been approved for ISO 9001 International Quality Assurance Certificate, CE from European Union, SASO from Saudi Arabia, KC from Korea, and CB from IECEE.In Taiwan, our storage electric water heaters have been approved for Energy-Saving Mark whereas instant electric water heaters are the First to pass the national standard of CNS as well as MIT Mark. Moreover, Super Guider also received several awards, such as "Great Achievement Award" for National Inventions, "Silver Medal" at the Far East Invention Exhibition and “Golden Reputation” from Taiwan and won "Taiwan Excellent Award  2013 "

Making shower time more comfortable is always what Super Guider is striving for; from the outstanding Research and Development team that always catching up with technology, to finding and purchasing high quality parts, to prominent design elite, to professional and proficient manufacturing team, to friendly and sincere sales, to lastly enthusiastic after-sales service. Every stage is given the utmost care with customer-oriented goal and non-stopping improvement concept.

Super Guider; being a guider, is always keeping up with the trend by developing trendy and functional water heaters. The brand new logo [SG] and CIS adopted in 2011 is to give the World a professional impression and trustworthiness, as well as shaping a prosperous future.

Super Guider, your superior guider for water heaters!
