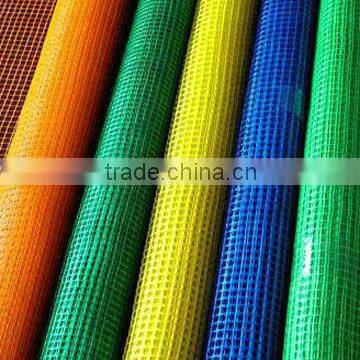

Green Color Leno Weave Insulation Roofing Fiberglass Mesh

Specifications

Insulation Fiberglass Mesh

1. Fiberglass mesh description:

Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.We can produce any size mesh according to requirements of customer like different mesh size and weight per square meter.

2.Main specifications for fiberglass mesh:

1. Opening:5mm x 5mm, 4mmx4mm, 3mmx3mm, 10mmx 10mm

2. Weight: 30-300g/m2

3.Width: 0.1-2m

4. Length: 10-300m

5. Color:  white, green, yellow, blue, red, or can do as customers' required

3. Fiberglass mesh main characteristics:

1.Good chemical stability: Alkali-resistant, acid-resistant, waterproof,cement erosion-resistant, and other chemicals' corrosion resistant; and strong resin bonding, soluble in styrene.

2.Outstanding craftsmanship include coating enough alkali-resist glue, our coating glue is produced by Germany BASF which can keep 60-80% strength after test in Naoh 28days later, so that guarantee high strength, high tensility, light weight.

3.Strength retention rate> 90%, elongation <1%, the durability of more than 50 years

4.Good dimensional stability, stiffness, smoothness an difficult to shrink and deformation, good positioning property

5.Good impact resistance and not easy to be teared.

6.Fire resistant, thermal insulation, sound insulation etc.

4. Application of fiberglass mesh:

1. Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen etc)

2. Reinforced cement products.

3. Used for Granite, mosaic, marble back mesh etc.

4. Fabric waterproof membrane, asphalt roofing.

5. Framework material for einforced plastics, rubber products,.

6. Fire board.

7. Grinding wheel base fabric.

8. Road surface with geogrid

9. Construction caulking tape etc.
