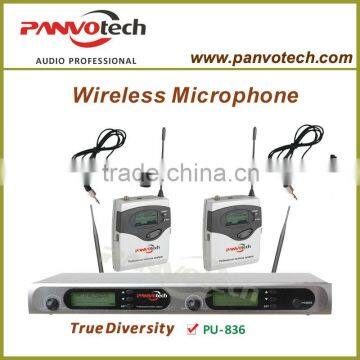

Panvotech Uhf Double Lavalier Mic

FOB Price

US$ 160 - 180 / Set

100 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Panvotech	Model Number	PU-836
Style	Other, lavalier mic	Communication	Wireless
Use	Other, Stage performance, speech, club, auditorium,Ballroom, karaoke,etc.	Place of Origin	Guangdong, China

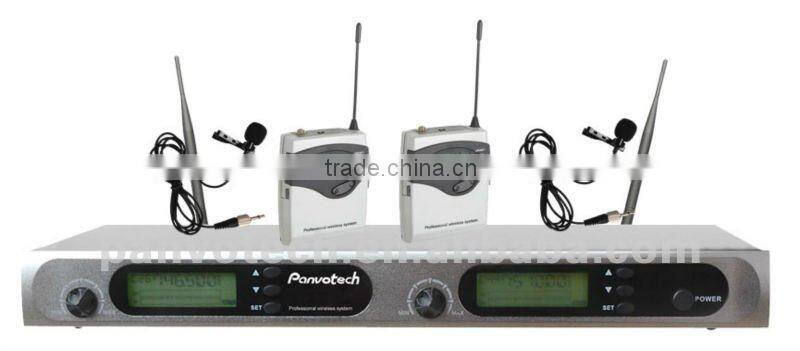

Panvotech uhf double lavalier mic

Key Features

UHF dual channel wireless tie clip microphone
Full metal receiver case & transmitter body.
True diversity technology offers superior reception quality.
PLL (phase-locked loop) ensures optimum performance.
Backlit LCD screens on receiver & transmitter display: Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc.
Total 200 selectable frequencies.
Dual "PiloTone & NoiseLock" circuits minimize interference.
All controls are intuitive and easily setup via buttons.
Reliable RF & transparent audio performance.
100 m (330 ft.) operating range.
100% SMT technics ensure high performance.

Specifications

Channel	Dual channel muti-frequency
Chassis	Full metal 180mm(W) * 45mm(H) * 420mm(D)
Receiving Mode	True Diversity
Frequency Range	UHF 500-870 MHz
Antenna	Rear Panel ( Detachable )
Preset Channels	200 selectable frequencies in each channel
Oscillation Mode	PLL synthesized
Stability	±0.005% (-10~60°C)
Sensitivity	10dBμV, at S/N>80dB
S/N Ratio	>75dB
T.H.D.	<1%
Frequency Response	50Hz~18KHz, with high pass filter.
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	2-level Switch: Line & Mic
Power Supply	External AC Adapter, 12-17VDC, 600 mA
Transmitter battery	AA 1.5V*2
