Home > Products > New Products > Panvotech Wireless Lapel Microphone System Quality Choice
Panvotech Wireless Lapel Microphone System Quality Choice
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Panvotech | |
| Model Number | PU-536 |
Product Description

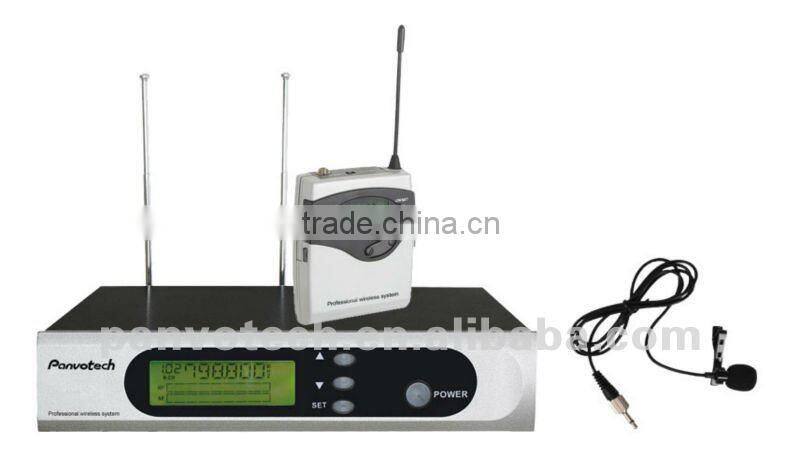

Panvotech wireless lapel microphone system
Key Features
- UHF PLL Wireless tie clip microphone
- Full metal receiver case & transmitter body.
- True diversity technology offers superior reception quality.
- PLL (phase-locked loop) ensures optimum performance.
- Backlit LCD screens on receiver & transmitter display: Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc.
- Total 100 selectable frequencies.
- Dual "PiloTone & NoiseLock" circuits minimize interference.
- All controls are intuitive and easily setup via buttons.
- Reliable RF & transparent audio performance.
- 100 m (330 ft.) operating range.
- 100% SMT technics ensure high performance.
Specifications
Channel | Single channel |
Chassis | Full metal 80mm(W) * 44mm(H) * 213mm(D) |
Receiving Mode | True Diversity |
Frequency Range | UHF 520MHz~952MHz |
Antenna | Rear Panel ( Detachable ) |
Preset Channels | 100 selectable frequencies in each channel |
Oscillation Mode | PLL synthesized |
Stability | ±0.005% (-10~60°C) |
Sensitivity | 10dBμV, at S/N>80dB |
S/N Ratio | >75dB |
T.H.D. | <1% |
Frequency Response | 50Hz~18KHz, with high pass filter. |
Squelch | "PiloTone & NoiseLock" dual-squelch circuit. |
Audio Output Adjustment | Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. |
Maximum Output Level | 2-level Switch: Line & Mic |
Power Supply | External AC Adapter, 12-17VDC, 600 mA |
Transmitter battery | AA 1.5V*2 |
