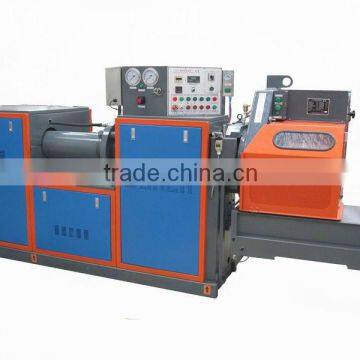

Rubber precision preformer JYZ150(JYZ200,JYZ250)
- 500 Set / Sets per Month
- Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Water Cooling Conveyer LSS650
-
Rubber machine Plate Vulcanizer/Pillar structure/press
-
Rubber machine Plate Vulcanizer/Frame structure/press
-
Rubber machine Automatic Mold Opening & Ejecting Plate Vulcanizer/press
-
Rubber machine Pocyform Planeheating/Pillar structure/press
-
Rubber machine Downward Plate Vulcanizer/Pillar structure/press
Product Details
| Place of Origin | Shanghai, China | Brand Name | Sunchemy | |
| Model Number | JYZ |
Product Description
Specifications
Rubber precision preformer1.JYZ150(JYZ200,JYZ250)
2.ISO certificate
3.CE certificate
4.Easy to operate and PLC controll
Rubber precision preformer JYZ150(JYZ200,JYZ250)
Introduction:
Precision Preformer is a kind of high-efficiency and high-precision device for manufacturing rubber blank before curing. It can be used in combination with a wide range of rubber material in extruding rubber blank of mid to high hardness and of intricate shapes such as circle and solid figures. Owing to its high precision volume and low air content, it is capable of producing products ranging from rubber sundries, sealing members, rubber tyre valves, tennis balls and shoe soles,etc. It integrates a variety of different functions such as vacuuming, filtrating, extruding, cutting, weighing, counting, etc.
Feature of JYZ Precision Preformer:
1. Adapt the PLC control system and touch screen operator interface. The color touch screen assists to input data and protect password.
2. 200 products technics database available to connect anytime.
3. Variable inverter controlled infinite speed regulation for cutter.
4. Weigh scale feedback close loop for blank weight adjustment.
5. Reliable safety performance. There are interlocks when close ram head, Cutter rotates and ram move forwards and retracts.
6. The graphic and text display demonstrates the failure point and causes
JYZ150 Precision Preformer:
Barrel Inside Diameter (mm) | Total Power (Kw) | Maximum pressure on Oil Cylinder (Mpa) | Maximum Temperature for Barrel (°C) | External Dimensions (cm)
|
150 | 15 | 36.8 | 95 | 80 |
Weight Limit of Rubber Blank (g) | Weight Accuracy of Product (%) | Single Feeding Volume (Kg) | Cutter Speed (r/min) | External Dimensions (cm) |
0.3~100 | ±1.0 | 8-10 | 35~300 | 360*115*164 |
JY200 Precision Preformer
Barrel Inside Diameter (mm) | Total Power (Kw) | Maximum pressure on Oil Cylinder (Mpa) | Maximum Temperature for Barrel (°C) | External Dimensions (cm)
|
200 | 15 | 20.7 | 95 | 125 |
Weight Limit of Rubber Blank (g) | Weight Accuracy of Product (%) | Single Feeding Volume (Kg) | Cutter Speed (r/min) | External Dimensions (cm) |
0.3~100 | ±1.0 | 20-25 | 35~300 | 360*115*164 |
JY250 Precision Preformer
Barrel Inside Diameter (mm) | Total Power (Kw) | Maximum pressure on Oil Cylinder (Mpa) | Maximum Temperature for Barrel (°C) | External Dimensions (cm)
|
250 | 22(19) | 17 | 95 | 190 |
Weight Limit of Rubber Blank (g) | Weight Accuracy of Product (%) | Single Feeding Volume (Kg) | Cutter Speed (r/min) | External Dimensions (cm) |
0.3~2000 | ±1.0 | 60-70 | 23~300 | 500*105*164 |
Rubber precision preformer JYZ150(JYZ200,JYZ250)
