Home > Products > SJ-D double colour film blowing machine > Double-Colour LDPE/HDPE Film Blowing/Blown Machine plastic film extruder line
Double-Colour LDPE/HDPE Film Blowing/Blown Machine plastic film extruder line
- xiamen
- T/T
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Fujian, China | |
| Brand Name | donghailong | Model Number | SJ40/40-FMJ650D, | |
| Voltage | 380kw | Power(W) | About52KW | |
| Dimension(L*W*H) | 5.2 m X2.5mX4.0m | Weight | 3200KG. | |
| Certification | CE,SGS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

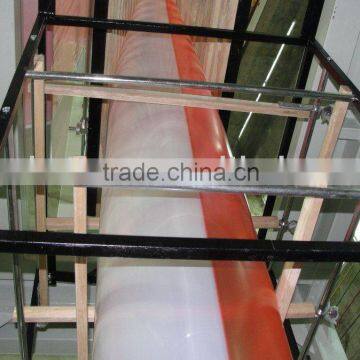

This kind of film blown machine is employed to produce double-color stripe film made of low density polyethylene (LDPE) and high density polyethylene (HDPE), which makes the product diversified. It is mainly used in the application of shopping and garment package.
Main Technology Parameters of
Model no. SJ45/45-FMS850D
1) LAYER NUMBER: one layer
MAX. FOLDED FILM WIDTH: 800mm
FILM THICKNESS: 0.008-0.15 mm
RAW MATERIAL: HDPE
Output: 45 kg/h
2) EXTRUDER:
SCREW DIAMETER: 2 X Φ45 mm
SCREW L/D: 28:1
HEATER CAPACITY: 2 X 10.5kw
DRIVING MOTOR: 18.5 kw
3) DIE:
DIE DIAMETER: HDPE Φ60mm Φ80 mm
HEATER CAPACITY 3.45 KW
COOLING AIR BLOWER: 3.0 KW
4) HAUL-OFF:
DRIVING MOTOR: 1.5 KW
TAKE-UP SPEED: 10-70 m/min
WINDER DRIVE MOTOR: 2.2kw
TEMPERATURE CONTROL: 9units
WHOLE POWER WITH TOTAL MACHINE: About52KW
SHAPE SIZE: (L x W x H) 5.2 m X2.5mX4.0m
WEIGHT: About 3200KG.
Contact Us
- Donglong Plastic Machinery Co., Ltd.
- Contact nameXiangQian Huang Chat Now
- Phone0086-595-22913787
- AddressCk-10, Donghai Bincheng Industrial Park, Quanzhou City, Fujian Province. China, Quanzhou, Fujian
