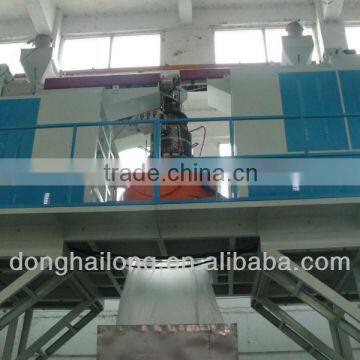

3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
Negotiable
/ Set
1 Set(Min. Order)
- Xiamen port
- T/T
You May Like
-
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
-
Three-layer co-extrusion down-ward water-cooled plastic pp blown film machine
-
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled Plastic PP Film Blowing Machine
-
Three-Layer Co-extrusion Down-ward water-cooled Plastic PP Film Extruder
-
latest three layer plastic blown pp film
-
3 layer PP plastic film machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Fujian, China | |
| Brand Name | Donghailong | Model Number | 3G-XSJ | |
| Certification | SGS,CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Combined machine head with three-layer extrusion,lower blowing water(rapid)cooling,rotating haul-off,good insulation,sealing.FEATURES:
- The machine employs some new technologies such as combined machine head with three-layer extrusion,lower blowing water(rapid)cooling,rotating haul-off.
- Good insulation,sealing,transparency,light sheltering,cooking,fresh-keeping,hot-sealing,and printing and other performance.
- Provides economical plastic packing film with multi-layer extrusion for the food,agricultural by-products,medical products,pesticide,chemical products,daily necessities and military products etc.
Main Technology Parameters:
Model
3G-XSJ45-FMJ1000
3G-XSJ55-FMJ1200
3G-XSJ65-FMJ1500
Max. Folded Film Width
800mm
1000mm
1300mm
Film Thickness
0.02~0.20mm
Output
80kg/h
110kg/h
150kg/h
Raw Material
PP, LDPE, LLDPE, EVA
Screw Diameter
3xΦ45mm
3xΦ55mm
3xΦ65mm
Screw L/D
28:1
Total Power of the Machine
~100kw
~120kw
~140kw
Shape Size(LxWxH)
6.5x3.0x6.0m
7.2x3.5x7.0m
8.2x4.0x7.5m
Weight
~7000kg
~8500kg
~10000kg
Correct specifications depend on the actual model all specifications are subject to change without prior notice.
