Home > Products > 3G-XSJ Co-extrusion PP Film Blowing Machine > Three Layer co-extrusion plastic pp film blowing machine

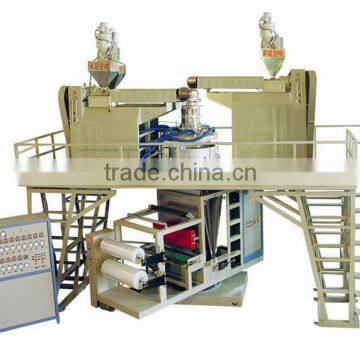

Three Layer co-extrusion plastic pp film blowing machine
- xiamen
- T/T
You May Like
-
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
-
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
-
Three-layer co-extrusion down-ward water-cooled plastic pp blown film machine
-
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled Plastic PP Film Blowing Machine
-
Three-Layer Co-extrusion Down-ward water-cooled Plastic PP Film Extruder
-
latest three layer plastic blown pp film
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Fujian, China | |
| Brand Name | donghailong | Model Number | 3G-XSJ45-FMJ1000, 3G-XSJ55-FMJ1200, 3G-XSJ65-FMJ1500 | |
| Certification | CE,SGS, ISO9001-2000, CE | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3G-XSJ Series Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
Features:
(1) The machine employs some new technologies such as combined machine head with three-layer extrusion, lower blowing water(rapid) cooling, rotating half-off.
(2) It is applicable to PP, MLLDPE, LLDPE, LDPE and terpolymer PP to produce the packing film and compound packing material with good insulation, sealing, transparency, light sheltering, cooking, fresh-keeping, hot-sealing, and printing and other performance.
(3) The film has taken the place of most of CPP and BOPP plastic films and provides economical plastic packing film with multi-layer extrusion for food, agricultural by-products, medical products, medical products, pesticide, chemical products, daily necessities and military products etc.
Main Technical Parameters:
Model | 3G-XSJ45-FMJ1000 | 3G-XSJ55-FMJ1200 | 3G-XSJ65-FMJ1500 |
Max. Folded Film Width | 800mm | 1000mm | 1300mm |
Film Thickness | 0.02~0.20mm | 0.02~0.20mm | 0.02~0.20mm |
Output | 80kg/h | 110kg/h | 150kg/h |
Raw Material | PP, LDPE, LLDPE, EVA | ||
Screw Diameter | 3*Φ45mm | 3*Φ55mm | 3*Φ65mm |
Screw L/D | 28:1 | 28:1 | 28:1 |
Total Power of the Machine | ~100kw | ~120kw | ~140kw |
Shape Size(L*W*H) | 6.5*3.0*6.0m | 7.2*3.5*7.0m | 8.2*4.0*7.5m |
Weight | ~7000kg | ~8500kg | ~10000kg |
