Three-layer co-extrusion PE film blowing machine
Negotiable
/ Set
1 Set(Min. Order)
- Xiamen
- T/T
You May Like
-
Three-layer Co-extrusion Plastic Pe Film Blowing Machine
-
Three-layer Co-extrusion Plasic Pe Film Blowing Machine
-
Three-layer Co-extrusion Pe Film Blowing Machine
-
Three-layer Co-extrusion Plastic Pe Film Blowing Machine
-
Three-layer Co-extrusion Plastic Pe Film Blowing Machine
-
3G-SJ SeriesThree-layer Co-extrusion plastic pe film extruding machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Fujian, China | |
| Brand Name | Donghailong | Model Number | 3G-SJ65/75/65-FMJ1700 | |
| Voltage | 220V/380V | Power(W) | ~190 KW | |
| Dimension(L*W*H) | 11.5*5.5*8.5m | Weight | ~8.5KG | |
| Certification | CE,TUV,SGS | Warranty | 1year., 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

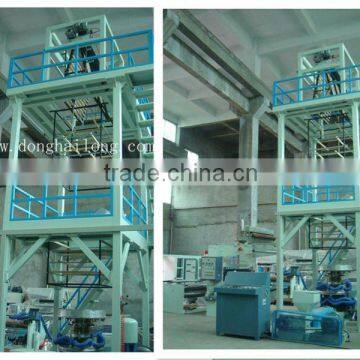

Three-layer co-extrusion PE film blown machine(plastic film extruder line)
3G-SJ65/75/65-FMJ1700
Features:
- The machine employs many technologies such as rotary traction, double wind gap & wind ring, air driving, speed regulation by frequency variation and fully-automotive double-tight friction winder.
- It is applicable to LLDPE, MLLDPE, LDPE, EVA, PA and adhesive etc to produce various kinds of packing film with multi-layer extrusion. The machine features with clear layering, good plasticization, excellent physic and mechanic performance, high output and low energy consumption.
- The successful use of the advanced rotary traction technology plays an important part in domestic equipment replacing the equipment with rotary machine head and improving the quality of the film. Therefore, it is the ideal machine to replace the old plastic machine.
Main Technology Parameters
1) LAYER NUMBER: 3layers
MAX. FILM WIDTH: 1600mm
FILM THICKNESS: 0.025-0.35 mm
RAW MATERIAL: HDPE/ LDPE/LLDPE/EVA
Output: 200kg/h
2) EXTRUDER:
SCREW DIAMETER: 2 x Φ65mm / 1 X Φ75mm
SCREW L/D: 30:1
HEATER CAPACITY: 2 x 16.5 kw / 1 X 20.7kw
DRIVING MOTOR: 2 x 30kw / 1 x 37kw
3) DIE:
DIE DIAMETER: Φ350mm, Φ400mm
HEATER CAPACITY175 kw
COOLING AIR BLOWER: 7.5 kw
4) HAUL-OFF:
DRIVING MOTOR: 2.2 KW
TAKE-UP SPEED: 10-55 m/min
WINDER DRIVE MOTOR: 2 x 3.7 KW
TEMPERATURE CONTROL: 15units
WHOLE POWER WITH TOTAL MACHINE: About 190 KW
SHAPE SIZE: (L x W x H) 11.5 X 5.5 X 8.5m
WEIGHT: About 8.5KG
