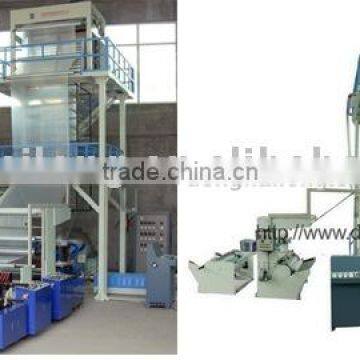

Three-layer Co-extrusion Plastic PE Film Blowing Machine
- Xiamen
- T/T
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Other, free choice | Place of Origin | Fujian, China | |
| Brand Name | donghailong | Model Number | 3G-SJ55/65/55-FMJ1500 | |
| Voltage | 220-380v | Power(W) | 152kw | |
| Dimension(L*W*H) | 10.0*5.0*7.5m | Weight | 7000kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
rotary traction, double wind gap & wind ring, air driving,and so onFeatures:
The Film Blowing Machine employs many technologies such as rotary traction, double wind gap & wind ring, air driving, speed regulation by frequency variation and fully-automatic double-tight friction winder. It is applicable to LLDPE, MLLDPE, LDPE, EVA, PA and adhesive etc to produce various kinds of packing film with multi-layer extrusion. The machine features with clear layering, good plasticization, excellent physic and mechanic performance, high output and low energy consumption.
Main Technical Parameters:
Model No.
| 3G-SJ45/50/45-FMJ1300 | 3G-SJ55/65/55-FMJ1500 | 3G-SJ65/75/65-FMJ1700 |
Layer Number | 3 layers | ||
Max. Film Width | 1200mm | 1400mm | 1600mm |
Film Thickness | 0 .025 ~ 0.35mm | ||
Output | 100kg/h | 160kg/h | 200kg/h |
Raw Material | LDPE, LLDPE, HDPE,EVA | ||
Screw Diameter | 2*Φ45mm/1*Φ50mm | 2 *Φ55mm/1*Φ65mm | 2 *Φ65mm/1*Φ75mm |
Screw L/D | 30:1 | ||
Die Diameter | Φ250, Φ300mm | Φ300, Φ350mm | Φ350, Φ400mm |
Whole Power of the Machine |
~ 110kw |
~ 152kw |
~ 190kw |
Shape Size(L*W*H) | 10.0* 4.5 * 6.5m | 10.0 * 5.0 * 7.5m | 11.5 * 5.5 *8.5m |
Weight | ~ 5.5t | ~ 7.0t | ~ 8.5t |
