300kW 500kW Wind Farm Plant by 100KW Wind Turbine Generator Set
- Shanghai
- T/T L/C
You May Like
-
Wind Generator CE/UL/ISO9001 Approved 20kw Wind Power Generator Windmill Wind Turbine
-
On Grid Wind Power Generator 50kW Wind Turbine Set
-
Permanent Magnet Generator Wind Turbine Alternator 10kW Power
-
Small Wind Turbine Generator 50kW for Utility Power
-
Low Rpm 100KW Wind Turbine Wind Generator for 500KW/MW Wind Farm
-
Permanent Magnetic Generator 20kW Free Energy
Product Details
| Place of Origin | Anhui, China | Brand Name | Hummer | |
| Model Number | H20.8-100kW | Type | Wind Power Generator |
Product Description
Specifications
1. Smart control system.2. Free maintenanced.
3. Multiple protection system
4. CE&UL&7 Patent
roduct Information
Main technical data of 100kW wind turbine generator set:
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | 20.8 m / 68.2 feet |
| Swept Area | 339.80 m2 / 3657.6 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 100KW @ 12.5m/s |
| Maximum Output Power | 112kW |
| Battery Bank Voltage | 400 Vdc |
| System Output Voltage | 380 Vac three phase |
| Cut-in Wind Speed | 2.5m/s |
| Rated rotating rate | 100 r/min |
| Working Wind Speed | 3-25 m/s |
| Survival Wind Speed | 55 m/s |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 4000 kgs |
| Generator Efficiency | >0.92 |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Pitch & Hydraulic Braking & Yaw |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 2 years |
Products Features of 100kW wind turbine generator set:
- SCF (Supercritical Generator Technology) generator technology as core, Feature is extremely light ,small,fasting,stable with higher power efficiency .
- Adopt NSK bearings, which have a 15 years life span without maintenance.
- Smart Intelligent yaw shaft system has designed with sensor to detect speed,Rpm,angle ,tempreture of generator, speed,direction of wind etc.

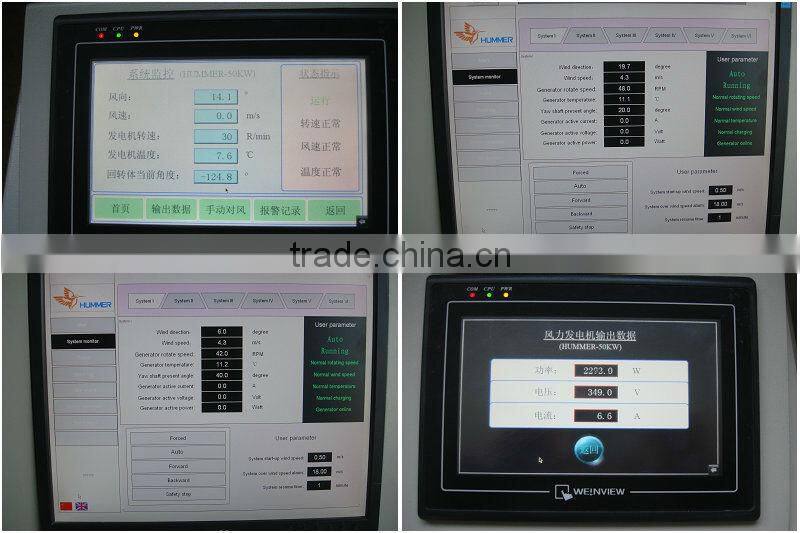

- PLC controller system (Smart and lntelligent) with touch screen, which can automatically seek wind direction, drifts off the blades from strong wind direction to protect the system and constantly monitor generator working status, Monitoring rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center and easy view control with the touch screen.
- One international patents, Six National patents and ensure the perfect performance.

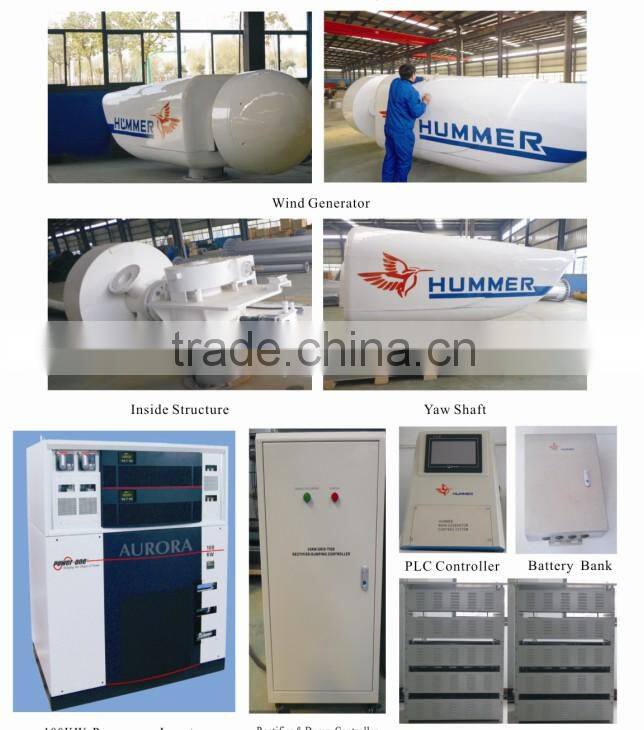

100KW Wind Turbine Generator Structure:

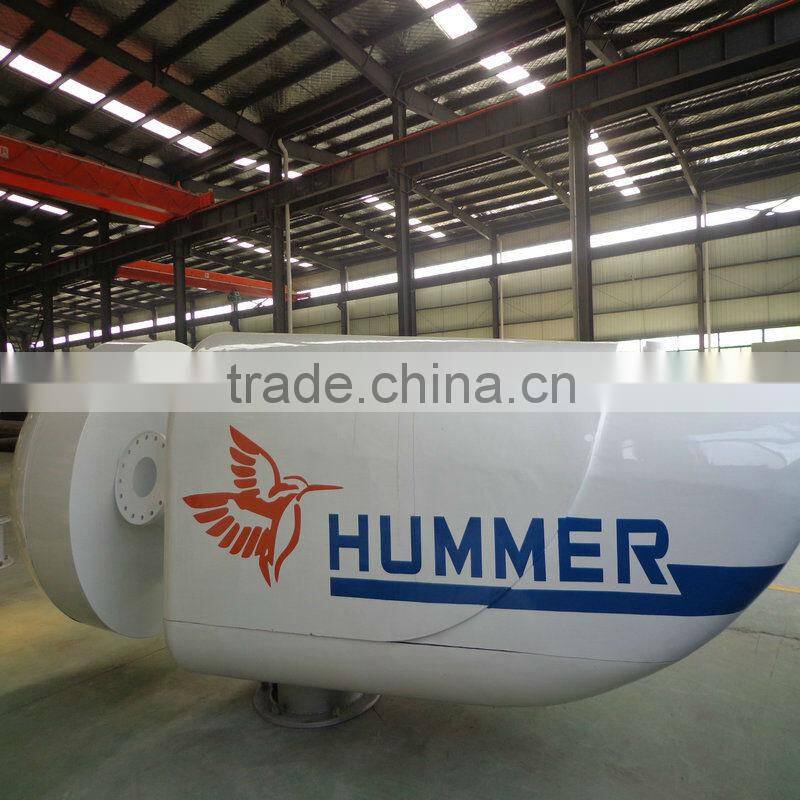

1.100kW wind turbine generator and nacelle
2. 100kW Wind Turbine Generator Tower made of galvanised steel , salt and acid proof, UV-proof.
3. 100kW wind turbine generator inverter adopting MPPT and IGBT technologies, with high power generating capacity, wide AC voltage range.

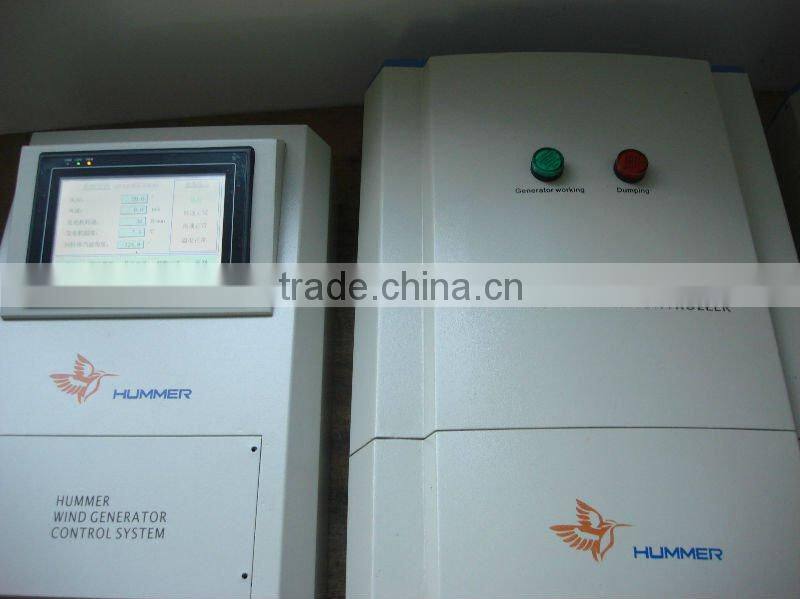

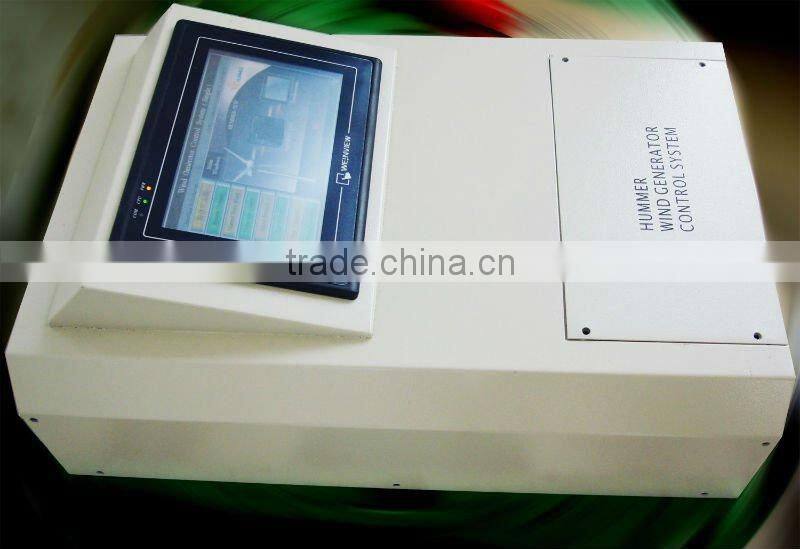

4. 100kW wind turbine generator used Siemens PLC controller receiving windsignal and operation signal, quick response and reaction, reliable and intelligent control.

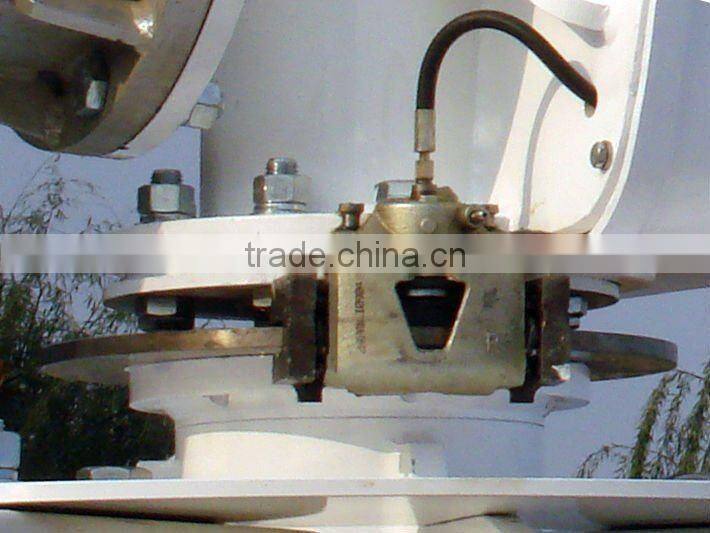

5. 100kW wind turbine generator hydraulic brake: brake block assembled in the flange of wind generator for hydraulic braking.
6. 100kW wind turbine generator's rectifier, dumping load, inverter seperately equipped.

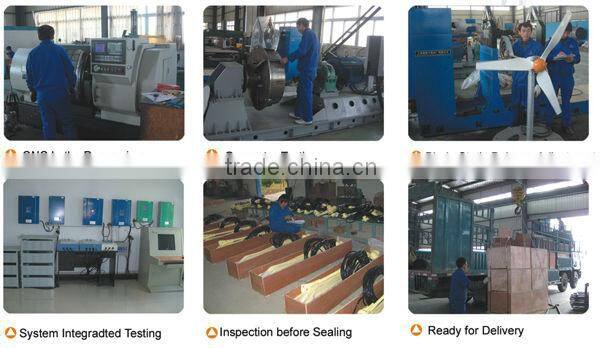

Hummer factory and exhibition
