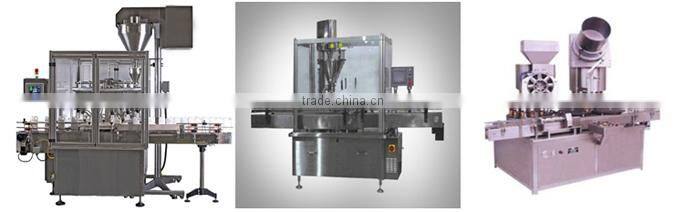

Rotary Dry Syrup Powder Filling Machine

Rotary Dry Syrup Powder Filling Machine

The Automatic High Speed Rotary Dry Syrup Powder Filling Machine Model SBPF-120R is suitable for Glass, Plastic, PET, HDPE, and LDPE Bottles with maximum speed of 100 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter.

Machine in Stainless Steel Finish with heavy duty frame structure with S.S, Clading. All parts coming in contact with Powders are made from SS316 Materials as well as HDPE Funnels.

The Machine works on proven time tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder.

Machine with complete synchronization of Bottle Infeed Star Wheel, Powder Wheel movement and outfeed Starwheel for smoother operation. Machine with Rotary Bottle Moving system ensures very high speed powder filing through independent moving funnel along with bottles for greater speed and performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.

Salient Features :

• No Bottle - No Fill System
• Rotary Bottle Movement System with Rotary Funnel System
• Funnel with Unique Vibratory system for filling semi free flow powder at higher speed
• All contact parts with easy removal system for Cleaning / Auto Claving / Sterilization
• Machine construction in SS304 material
• Filling Accuracy of +/- 1 to 2% depending on powder at controlled humidity below 30% Rh
• Automatic Infeed and Exit of Bottles through Star Wheel System
• No Bottle at infeed conveyor - Automatic Machine on/off system
• Low Air - Machine Stop System
• Low Vacuum - Machine Stop System
• Toughened Glass Safety Cabinet
• Blower for dust extraction

Technical Details:
