5 Kilowatt Horizontal Wind Driven Generator
US$ 8,000 - 10,000
/ Set
1 Set(Min. Order)
- Shanghai
- Credit Card
You May Like
-
5000W Wind Turbine 5kw Wind Power Generator Kit for Houses
-
5KW Wind Turbine Generator 5000W Wind Solar Hybrid Generator
-
5kw Wind Power Generator for Farm/heating/water Pump
-
Hot Sale 5kW Wind Turbine Wind Power Generator for Small Office, Company
-
Horizontal Axis 3kW/5kW/10kW Wind Turbine Generator Wind Mill Windkraftanlage
-
5KW Wind Turbine 5000W Wind Power Generator System for House/commercial Use
Product Details
| Place of Origin | Anhui, China | Brand Name | Hummer | |
| Model Number | H6.4-5kw wind generator | Type | Other, Wind Driven Generator |
Product Description
Specifications
Horizontal Wind Driven Generator1.CE proved+7 patents
2.lighter,smaller,higher
3.SKF bearings
fessional factor
5 Kilowatt Horizontal Wind Driven Generator
1.H6.4-5000w 5kw wind driven generator which features high efficiency and low rated wind speed introducing several patented technologies and some special materials.
All of the off grid horizontal wind generator are matched with wind-solar hybrid inverter controller, which can connect solar panel within 1500w simultaneously.
The off-grid wind driven generator is matched with 20pcs 12VDC batteries in series, and grid-tied system can connect to state grid with the help of hummer grid-tied inverter.
2.Application of Model H6.4-5000w off grid wind driven generator
It can drive air-condition (3-5 horsepower), pump or other electrical appliances (≤4.5KW).
Well used in:
Housing
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
3.Main technical datas of 5kw wind driven generator
Rated power(W) | 5000 |
Maximum output powerW | 7500 |
Charging voltage (V) | DC 240 |
Blade quantity | 3 |
Rotor blade material | GRP |
Rotor blade diameterm | 6.4 |
Start-up wind speed (m/s) | 2.5 |
Rated wind speed (m/s) | 10.0 |
Rated rotating rate (r/min) | 240 |
Wind energy utilizing ratio (Cp) | 0.4 |
Generator output | Single-phase frequency conversion AC |
Rated charging current (A) | 20 |
The maximum charging current (in a short time )(A) | 32 |
Output AC frequency (Hz) | 0~360 |
Generator efficiency | >0.8 |
Free standing tower diameter(mm) | 495*185*12000 (2pcs) |
Guy tower diameter(mm) | 220*3000*6 (4pcs) |
Tower height(m) | 12 |
The weight of generator(kg) | 147 |
Battery 12V 150Ah/200Ah | 20pcs |
4. 5kw horizontal wind power curve

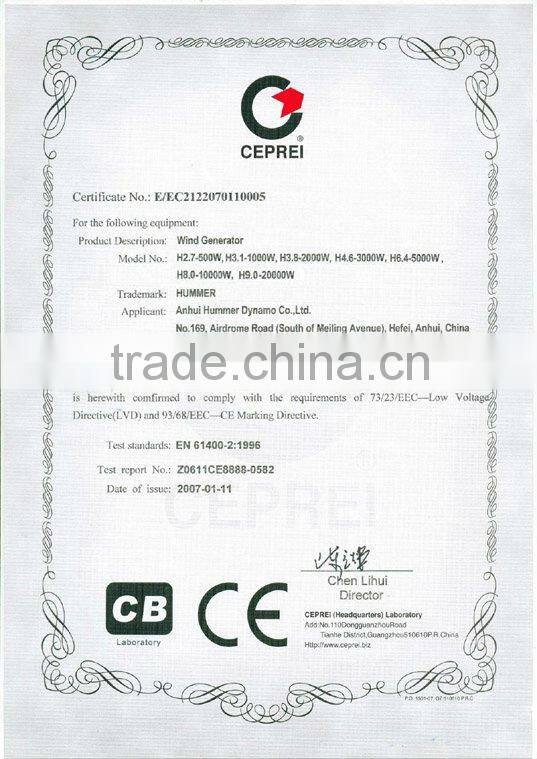

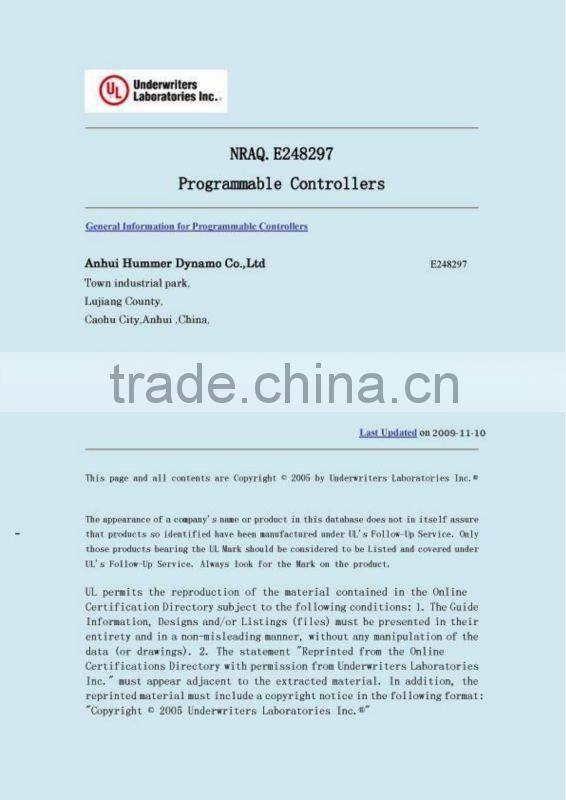

5. Certifications
