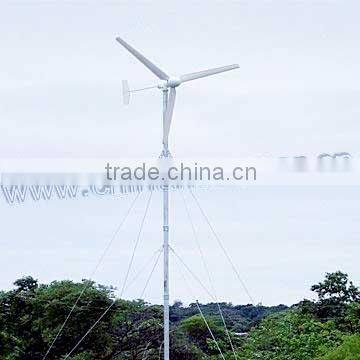

China Hummer permanent magnet alternator 2000W wind turbine generator

FOB Price

USD $100 - $2,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Hummer
Model Number	H3.8-2KW Wind Generator		Type	Other, wind generator

China Hummer permanent magnet alternator 2000W wind turbine

wind turbine generator

Application of Model H3.8-2000W wind turbine

It can drive air-condition (2 horsepower), 800W water pump or other electrical appliances (≤2KW).

We'll used in:

Housing

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

Main technical data

Rated power (W)	2000
Maximum output power (W)	3200
Charging voltage (V)	DC 120
Blade quantity	3
Rotor blade material	GRP
Rotor blade diameter (ft.)	12 (3.8m)
Start-up wind speed (mph)	7 (3.0m/s)
Rated wind speed (mph)	20 (9.0m/s)
Rated rotating rate (r/min)	450
Wind energy utilizing ratio (Cp)	0.45
Generator output	Frequency conversion AC
Rated charging current (A)	16.7
The maximum charging current (in a short time )(A)	28
Output AC frequency (Hz)	0~370
Generator efficiency	>0.8
Tower diameter (in.)	ø4.578.70.2 (ø11420004 mm) (5pcs)
Tower height (ft.)	33 (10m)
The weight of generator (lb)	55 (25kg)
Suggested Battery (Ah)	150/200
