Residential Wind Turbine Windmill 2000w/2kw Wind Generator

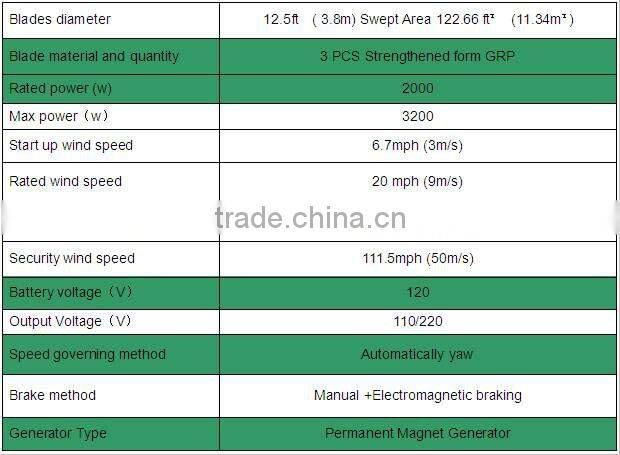

  Residential wind turbine windmill 2000w/2kw wind generator description

Key  Features

1Light,smart, high efficiency with 7 National Patents

2Lowe noise with 2 SCF bearings,long service life and easy maintenance

3The generator locating in nose cone,easy to radiate heat and reduce wind resistance

5Multiple protection: mechanical furling,manual and electromagnetic braking ,Optional hydraulic braking

6Equipped with a closed transmission slip ring to prevent cable from being wrapped

7The blades with airfoil design ,aerodynamically optimized based on the wind tunnel test,efficient and practical

8The anticorrosive processing ,like hot gavanizing and spray paining,being efficient to prevent the turbine from atmospheric,salt spray and aeolianerosion

Application

2kw wind turbine generator can load TV,lighting,fan,washing machine,refrigerator,water pump.

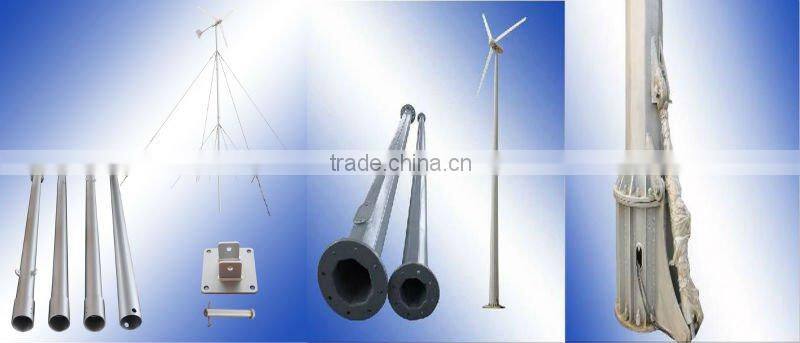

Suggestion guy tower /free standing tower  is 33ft (10m)

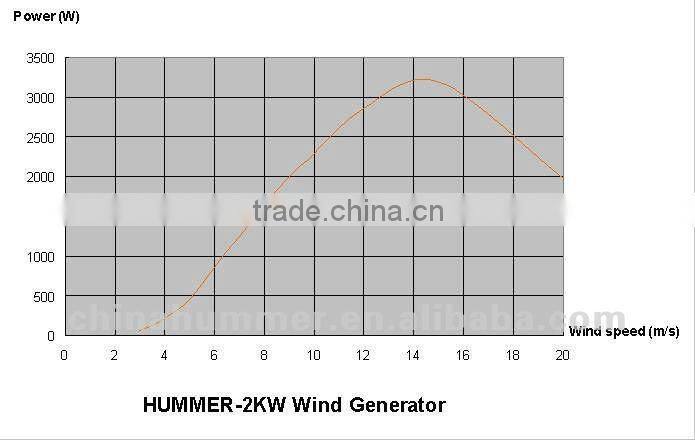

H3.8-2KW Power curve

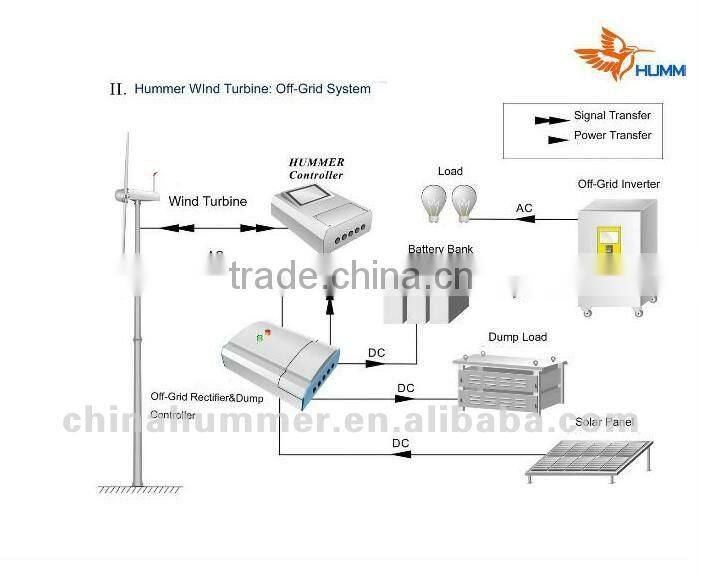

Off-grid application:An off-grid application is any dwelling or outbuilding that is powered by a battery system and is not connected to the utility, such as a remote home, cabin or shed

Battery Suggestion:12V200AH/150AH/10pcs

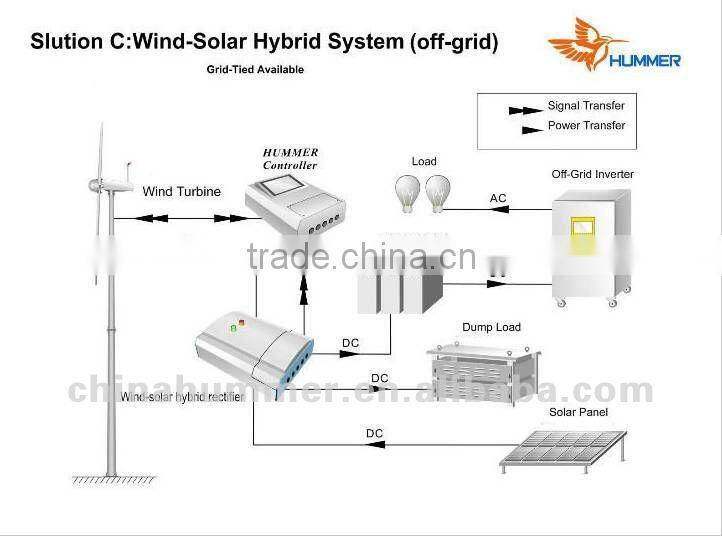

 Off-grid with solar panel hybrid power system application -wind and solar will charge battery complementally ,solar panel suggestion within 1kw

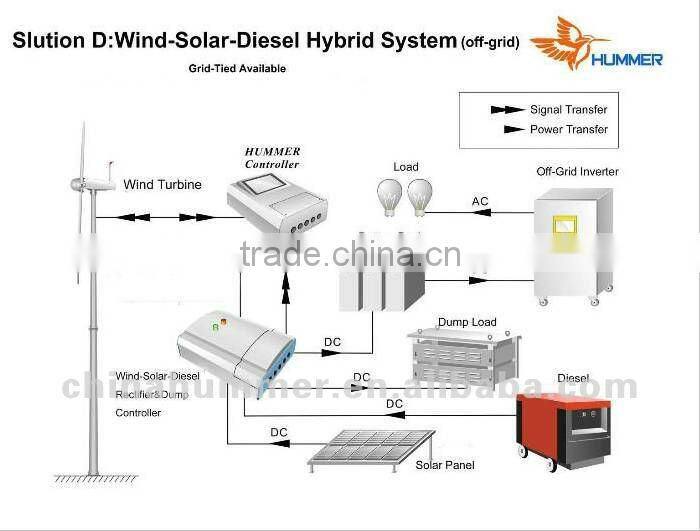

Off-grid with solar panel and diesel generator for back up application- ensure constantly supply power , solar panel suggestion within 1kw

FAQ

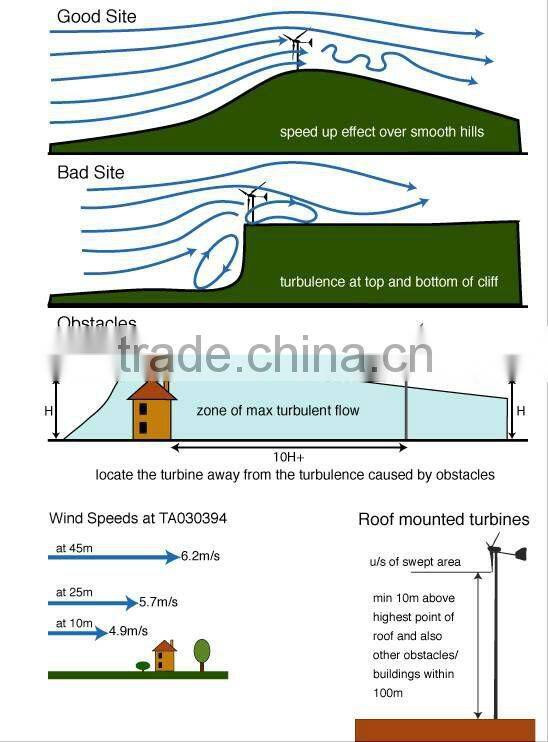

Sitting choose

Package

 Certification
