Mini Wind Turbine Mini Wind Generator 2KW Horizontal Wind Turbine

FOB Price

US$ 1,273 - 3,917 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Hummer Mini Wind Turbine
Model Number	H3.8-2kw		Type	Wind Power Generator

Mini Wind Turbine Mini Wind Generator 2KW
1.SCF technology
2.SKF bearings for 15 years
3.Machinery yaw shaft
4.15-20 life

Mini Wind Turbine Mini Wind Generator 2KW horizontal wind turbine

Trust the strength of corporation brand---It is your best choise!

Hummer Mini Wind Turbine Mini Wind Generator 2KW which features high efficiency and low rated

wind speed introducing several patented technologies and some special materials.

Application of Model H3.8-2000W Mini Wind Turbine Mini Wind Generator

It can drive air-condition (2 horsepower), pump or other electrical appliances (≤2KW).

Well used in:

Housing

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

Main technical data

Configuration	3 Blades, Horizontal axis, Upwind
Rotor Diameter	3.8 m / 12.5 ft
Swept Area	11.35 m²/122.2 ft²
Direction of Rotation	Clockwise looking upwind
Blade Material	Fiberglass reinforced composite

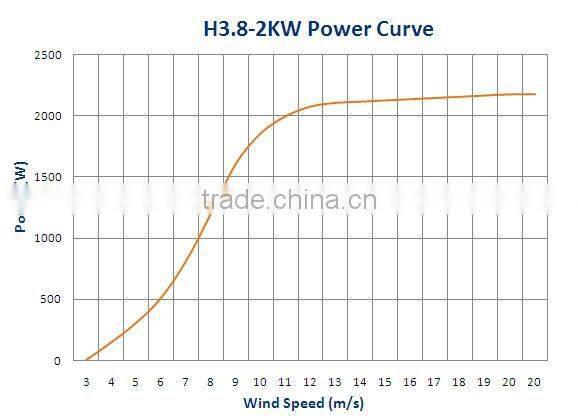

Rated Power	2 kW @ 11m/s / 24.6 mph
Maximum Output Power	2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage	120 Vdc
System Output Voltage	110/220 Vac
Cut-in Wind Speed	3 m/s / 6.7 mph
Rated rotating rate	450 r/min
Working Wind Speed	3-25 m/s / 6.7-82.2 mph
Survival Wind Speed	50 m/s / 164 mph
Alternator	Permanent magnet alternator, SCF technology
Alternator Weight	25 kg / 55.1 lbs
Generator Efficiency	>0.80
Wind Energy Utilizing Ratio	0.45 Cp
Energy monitoring & User control	None
Gearbox	None, Direct drive with front generator design
Over Speed Regulation	Passive furling tail design
Shutting Down Method	Manual & Automatic electromagnetism Braking
Warranty	2 years for generator and 1 year for other parts
