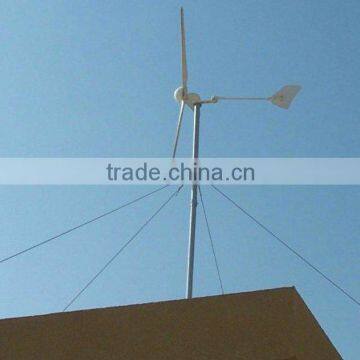

1kw Horizontal Axis Wind Turbine better than Vertical Axis Wind Turbine with CE and UL hot sale

FOB Price

USD $722 - $3,573 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Hummer
Model Number	H3.1-1kw		Type	Wind Power Generator

1kw Horizontal Axis Wind Turbine better than Vertical Axis Wind Turbine with CE and UL hot sale

Products Features

SCF (Supercritical generator technology) as core
Feature is extremely light ,small,fasting,stable with higher power efficiency .
Adopt SKF bearings, 15 years life span without maintenance
Special machinery yaw shaft base on folding-up tail design with patents for against strong wind to protect itself and keep balance.
National patents and international patent ensure the perfect performance.

Application to:

Housing, office, farm and factory

Telecommunications Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

The specification for Hummer H3.1-1000w wind generator :

Rated power(W)	1000
Maximum output powerW	2000
Charging voltage(V)	DC 60
Blade quantity	3
Rotor blade material	GRP
Rotor blade diameterm	3.1
Start-up wind speed (m/s)	3.0
Rated wind speed (m/s)	9.0
Rated rotating rate (r/min)	500
Wind energy utilizing ratio (Cp)	0.45
Generator output	Single-phase frequency conversion AC
Output AC frequency (Hz)	0~400
Rated charging current (A)	15
The maximum charging current (in a short time )(A)	30
Generator efficiency	>0.8
Tower diameter(mm)	8920003.5 (4pcs)
Tower height(m)	8
Weight of generator (kg)	15
Battery 12V 150Ah/ 200Ah	5pcs
