50KW/100kW Small Wind Generator for Home
- Shanghai for Small Wind Generator
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
50KW PMG wind generator wind turbine windkraftanlage for wind farm
-
high efficiency 50KW wind power generator wind solar hybrid system for farm/power plant/village
-
50kW permanent magnet alternator wind turbine generator to supply
-
guyed tower wind turbine kits 500w
-
hot sale wind solar power system 500W wind generator
-
500w micro wind turbine windmills generator
Product Details
| Place of Origin | Anhui, China | Brand Name | Hummer | |
| Model Number | H16.5-50KW Small Wind Generator | Type | Wind Power Generator |
Product Description

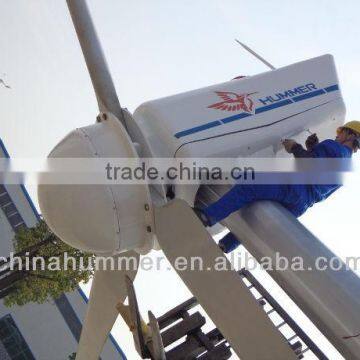

50KW/100kW Small Wind Generator for Home
Small wind turbine
1. lighter, smaller and more efficient than traditional wind energy tubine ;
2. Own SCF supercritical generator technology ;
3. Adopt SKF Bearings;
4. CE,UL,ISO certificate .
Application to:
1. House, factory and hospital;
2. Telecommunication Station;
3. Monitoring Station (military, hydrology, observatory);
4. Wind farm station;
5. Water-pumping Station .
Production Range:
1)500W-100kw wind turbine Off-grid /Grid-tied;
2)400W-600W Wind-Solar LED street light and traffic light;
3)Wind-Solar hybrid generating system;
4)Wind-Solar-Diesel hybrid generating system.
Specification
Rated power (W) | 50000 |
Maximum output power (W) | 50000 |
Battery bank voltage (VDC) | 400 |
Cut-in wind speed (m/s) | 3 |
Rated wind speed (m/s) | 11 |
Working wind speed (m/s) | 3-25 |
Survival wind speed (m/s) | 50 |
Generator efficiency | >0.92 |
Wind energy utilize ratio | 0.42 |
Generator type | Permanent Magnet Alternator |
Generator weight (kg) | 2000 |
Blade material/quantity | GRP/3 |
Blade diameter (m) | 16.5 |
Over speed control | Yaw + Pitch control+ Hydraulic brake |
Shutting down method | Manual + Automatic |
| 50KW | ||||||||
| Item No | Parts | Package | Dimension (M) | Volume(CBM) | Weight(KG) | |||
| N.W | G.W | |||||||
| 1 | Generator box | Plywood Crate | 1.27 | 1.27 | 0.81 | 1.306 | 1257 | 1304 |
| 2 | Nose cone box | 1.08 | 1.08 | 0.495 | 0.577 | 65 | 72 | |
| 3 | Power box | 0.6 | 0.4 | 0.21 | 0.050 | 8 | 13 | |
| 4 | Controller box | 0.5 | 0.377 | 0.215 | 0.041 | 10 | 16 | |
| 5 | Rectifier box | 0.605 | 0.56 | 1.12 | 0.379 | 98 | 107 | |
| 6 | Dumping load box | 1.02 | 0.57 | 1.13 | 0.657 | 136 | 154 | |
| 1.02 | 0.57 | 1.37 | 0.797 | 179 | 198 | |||
| 7 | Inverter box | 0.9 | 0.7 | 2.1 | 1.323 | 600 | 650 | |
| 8 | Blades box | 6.65 | 0.605 | 0.47 | 1.891 | 310 | 330 | |
| 9 | Yaw shaft box | 2.2 | 1.1 | 1.1 | 2.662 | 1200 | 1390 | |
| 10 | Free standing tower | Nylon Bag | 9 | 1.35 | 1.35 | 16.403 | 4116 | 4116 |
| Total | On grid set | Match with free standing tower | 26.036 | 7971 | 8337 | |||
| without tower | 9.633 | 3855 | 4221 | |||||
