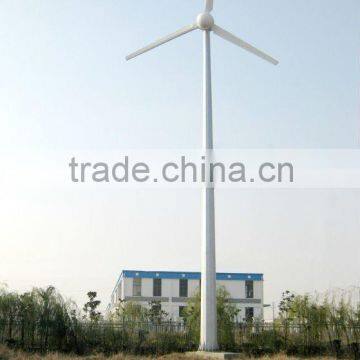

mid-size 30kw wind turbine wind power generator windmill windkraftanlage eolico 30kW

mid-size 30kw wind turbine wind power generator windmill windkraftanlage eolico 30kW Specifications

POWER CURVE

Key Features

1high efficiency due to patened SCF Supercritical generator technology

2Lowe noise and long service life with 2SKF bearings - lower sounds under 45dbs

4Airfoil designed blades with balance and wind tunnel tested

5Hot galvanizing and spray paining, efficient to prevent from atmospheric,salt spray , aeolian erosion

6. yaw shaft with the slip ring to ensure the rotation at 360 degree.

7. wind vane and anemometer indicating wind direction and measuring wind speed, transmitting wind signal to PLC controller.

8. Siemens PLC controller receiving wind signal and operation signal , quick reaction and intelligent control.

9. brake block assembled in the flange of wind generator for hydraulic braking.

Off-grid inverter

Adopting SPWM technology, it will inverter with high converting efficiency, output stable frequency and stable voltage, filter out noise. It is used in the off grid system and power the electric loads. Output pure sine wave .

Grid tied inverter

Adopting MPPT and IGBT technologies, It inverters with high power generating capacity and wide AC voltage range.  It connect with state grid and the energy storing device isn't needed.Output pure sine wave .

Simens PLC control system with touch screen

As adopting Siemens CPU the technology of touch screen, it will alarm automatically and regulate theoperation situation of wind generator. Users can also set the parameters according to actual needs.

yaw shaft system has the direction-regulating function,and consists of gearbox ,direction-regulating DC motor and dogvane,etc.

On-grid application - wind turbine connected with utility power,the superfluous power will supply to utility to reduce your electric bill,no need battery bank storage ,if the wind power is not good,utility will supply the power as common,but usually the grid tied application need the local govement permitting depends each country.

Off-grid application with battery bank storage for remote place , base station , irrigation etc

Off-grid application with solar hybrid system

Free standing tower 59ft (18m)-made of galvanised steel tube anti acid, salt proof, UV- proof

 Hydraulic tower  -easy for installation and mantainance ,no need crane ( The whole system include tower ,tower base,revering lever,pipeline,ram,hydraulic pump )

FAQ-suggestion on how to choose wind turbine
