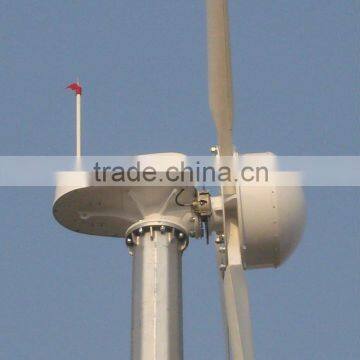

Hummer 30 KW Wind magnet generator
- Shanghai
- Credit Card
You May Like
-
Hummer 30kw Horizontal Axis Wind Turbine--On grid application/Windkraftanlage/Windrad
-
Grid wind turbine 30kW for industrial power
-
small power 30kW wind turbine generator for business
-
Hummer 30kW wind turbine system horizontal axis windkraftanlage eolico
-
Reliable Hummer wind turbine 30KW wind generator for power supply/Windkaftanlage/Windrad
-
wind turbine 30kW power system maglev generator
Product Details
| Place of Origin | Anhui, China | Brand Name | Hummer 30KW Wind magnet generator | |
| Model Number | H10.0-30KW Wind magnet generator | Type | Wind Power Generator |
Product Description
Specifications
30KW Wind magnet generatorrated power 30kw wind generator
type magnet generator
wind powered 30KW Wind magnet generator
Hummer 30KW Wind magnet generator
Main technical parameter
| Rated power (W) | 30000 |
| Maximum output power (W) | 45000 |
| Charging voltage (V) | DC 360 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter (ft.) | 33 (10.0m) |
| Start-up wind speed (mph) | 6 (2.5m/s) |
| Rated wind speed (mph) | 25 (11.0m/s) |
| Rated rotating rate (r/min) | 160 |
| Wind energy utilizing ratio (Cp) | 0.42 |
| Generator output | Frequency conversion AC |
| Rated charging current (A) | 83 |
| The maximum charging current (in a short time ) (A) | 125 |
| Output AC frequency (Hz) | 0~400 |
| Generator efficiency | >0.92 |
| Free standing tower diameter (in.) | Φ47.2*Ø18.7 (Ø1200*Φ475mm) |
| Tower height (ft.) | 59 (18m) |
| The weight of generator (lb) | 1764 (800kg) |
| Suggested Battery (Ah) | 600/1000 |
Smart Control
H10.0-30000W home wind turbine is controlled by a comprehensive smart system.
Through our years of monitoring on wind turbine operation ,we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor :generator working status,rotation speed,generator temperature ,wind speed and direction etc .All data will be transmitted to control center .
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction .After problem is released wind turbinewill turn to face the wind direction again and resume generation .
H10.0-30000W home wind generator, both off grid and grid tied are available.
Application of 30000W home wind generator
It can drive air condition ( ≤30 horsepower), 10kw water pump or other resistive appliances (≤30KW).
Well used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
