Hot gas welding gun

Specifications

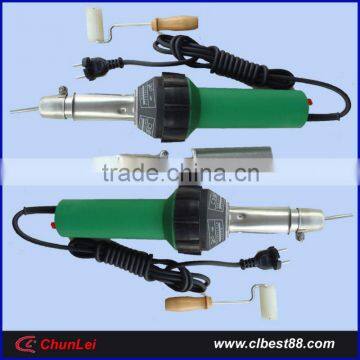

Hot gas welding gun (Chunlei Factory Machine)

The welding gun can be used for welding all different types of thermoplastic materials , such as for roofing , flooring , tarps, plastic . fabrication , etc

Feature

1.Choice of terminal block/connection

2.Available for horizontal or vertical mounting

3.Any length,voltage or wattage (within design limitations) to match customers existing installations

4.Custom built units available to suit particular applications

5.Varying styles of terminal block can be offered

6.Sheathswith / without mounting flanges/bosses in Mild Steel,StainlessSteel, Brass/Copper construction can be supplied if required

Basic Parameter

Mainly Structure chart

1. Power thread                    4. The outer cover             7. Generating heat machine

2. The switch                        5. Filter the network          8. Protect and cover
3. Temperature control          6. The rubber is enclosed    9. Jet-propelled mouth
10. Regular screw

Maintenance

1. Clean dirty air filter network or changed the filter screen with little brushes.
2. brushes and cleans and weld the spray nozzle with the steel.
3. When the carbon brush is consumed to the minimum length, electrical machinery switches will be closed automatically. This machines must be checked by your service centre. The service life of the carbon brush welded on the electrical machinery of the tool is 1600 job hours probably

package including

1.One plastic welder gun

2.One heat element

3.One pressure roller

4.40mm Flat nozzle

5.One pencil nozzle

6. English manual book

Cautions

1.The voltage rating stated on the tool must correspond to line/mains voltage.

2.Protect tools from damp and wet

3.The tool much be operated with supervision, heat can reach combustible materials which are out of sight

If you interesting our machine , please free to contact us .
