Home > Products > Slitting Rewinding Machine > Bopp Self Adhesive Tape Plant

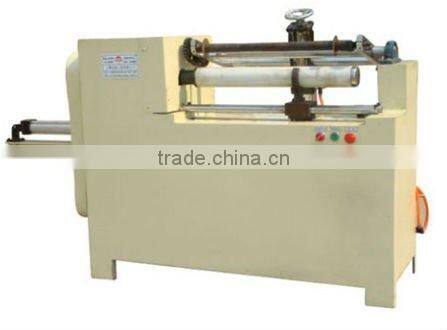

Bopp Self Adhesive Tape Plant
- shanghai
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Other, wooden case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 5.5KW | Place of Origin | Jiangsu, China | |
| Brand Name | yuerte | Model Number | YET04-02 |
Product Description
Specifications
1.slitting width:12mm.2.max. diameter of rewinding:120mm.
3.max. diameter of unwinding:600mm.
4.slitting speed:0-180m/min.
(we are the associated equipments of the slitter rewinder )
1.application:
Suitable for the slitting of BOPP tape and stationery tape.
2.feature:
(1)bopp self adhesive tape plant----centralized control of all buttons,easy operation.
(2)bopp self adhesive tape plant-After the completion of the rewinding , the two shafts automatically switching,simple operation and high efficiency.
(3The arch unwinding wheel,the unwinding wheel is arch design,and wipes out the wrinkling of adhesive tape in the process of feeding.
nical parameters:
Valid width | 1350(1650)mm | 1000mm |
Max. Dia. Of rewinding | 120mm | |
Max. Dia. Of unwinding | 600mm | |
Min. slitting width | 12mm | |
Inside dia. Of paper core | 76.2mm | 25.4-76.2mm |
Slitting speed | 0-180m/min | |
Main motor | 5HP | |
4.equipment allocation:
item | specification | quantity |
rewinding shaft | 3*1400mm slip-shaft | 4 set |
unwinding shaft | 3*1400mm inflatable shaft | 1 set |
rewinding motor | 5HP AC motor+inverter | 1 set |
unwinding motor | 1 HP AC motor+reducer | 1 set |
rewinding mechanism |
| 2 set |
rolling mechanism |
| 2 set |
arch wheel | 100*1400 | 1 set |
unwinding and press pulley mechanism |
| 1 set |
5.warranty:
The Warranty Period for the contract equipment shall be 12 months from the next day after the end of commissioning. If the supplied equipment is found to be defective as a result of faulty materials or workmanship within the Warranty Period, the Seller shall, at its own expenses, rectify or replace defected part of the equipment,the transportation fee for the replace components from the Seller's factory to the buyer's country shall be borne by the seller, the transportation fee for the replaced components from the buyer's country to the Seller's country shall be the Buyer. Wearing parts and damages due to incorrect operation are not included in the Warranty scope.
