Home > Products > cutting machine > Semi-automatic Rotary Blade Kraft Paper Cutting Mahcine
Semi-automatic Rotary Blade Kraft Paper Cutting Mahcine
- shanghai
You May Like
-
Semi-automatic Rotary Blade Cloth Cutting Mahcine
-
Semi-automatic Rotary Knife Masking Paper Cutting Mahcine
-
Semi-automatic Rotary Knife Cloth Tape Cutting Mahcine
-
Semi-automatic Circular Blade Foam Tape Cutting Mahcine
-
Semi-automatic Circular Knife Double-side Tape Cutting Mahcine
-
Semi-automatic Circular Knife Pvc Cutting Mahcine
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Other, wooden case | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Power | 3.7KW | Place of Origin | Jiangsu, China | |
| Brand Name | yuerte | Model Number | YET03-05 |
Product Description
Specifications
1.cutting all kinds of tapes.2.min.cutting width:3mm.
3.max.cutting dia.:300mm .
4.valid width:1300mm .
re ID.:1-3"
Video:
/v_show/id_XMjUyNjQwMzc2.html

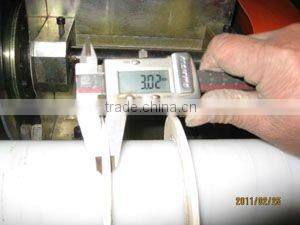

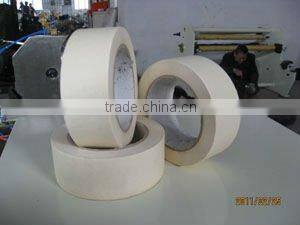

Finished product:
1.Application:
Suitable for cutting of double-side tape,kraft paper tape,masking paper,pvc,cloth tape,foam tape etc.
2.Feature:
(1)cutting width measurement adopt the hexagonal position,scale with widely range,rapid and
reliable fix position.semi-automatic ,round blade cutting and with smooth end surface.
(2)Small volume,easy for maintenance,economy and high efficiency.
(3)cutting with round blade,pneumatic cutting.
(4)Motor of main shaft transmit,cutting width with high precision,fix with cutter shaft.
(5)Cooling system adopts spray type.
(6)Cutter frame guide rail adopts linear guide rail.
(7)The structure is easy operation,easy and safe maintenance.
3.Technical parameters:
Model | YET0305-1.3m |
Valid width | 1300mm |
Cutting width | 3-1300mm |
Inside diameter of paper core | 25.4-76.2mm |
Max. cutting diameter | 300mm |
Main motor | 2HP |
machine dimension | 2.3M.*1.25M.*1.3M |
4.Equipment allocations:
item | specification | quantity |
assembly cabinet type | made with itakane | 1 set |
main shaft | 3'' | 1 set |
main motor | 2.2kw | 1 piece |
round balde transit motor | 0.75kw | 1 piece |
round blade | diameter:250mm | 1 piece |
air pressure | cylinder | 1 set |
cutter frame group |
| 1 set |
standard unit |
| 1 type |
linear slide |
| 1 group |
accessories |
| 1 set |
spray paint |
| 1 piece |
electric control |
| 1 type |
round blade transmit group |
| 1 group |
high precision fix shaft |
| 1 piece |
5.Warranty:
one year when you receive the machine.
