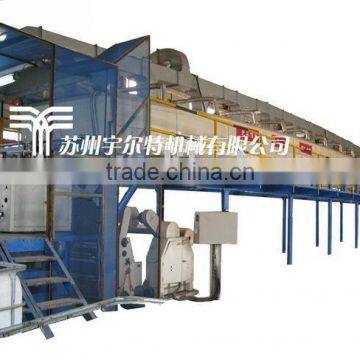

high-speed bopp coating machine

FOB Price

USD $40,000 - $250,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	YUERTE
Model Number	YET0101-01

1.suitable for bopp adhesive tape.
2.equipment stability.
3.high efficiency.
4.easy operation.
5.simple maintenance.

1.Application-

suitable for the bopp adhesive tape

2.feature:

1) straight-scraping transfer-printing type gluing,stablility in performance,even gluing.

2) high-speed production of 90-180M/MIN

3) lifting unwinding,double rewinding.

4) high-speed automatic cutting cloth and connecting film.

5) tension controlling by segmentation.

6) the temperature could be controlled by segmentation and adjusted according to the technical process.

7) slit nozzle blasting dry syetem for bake oven,hign in drying efficiency.
3.Technical parameters:

Model	YET-500	YET-1000	YET-1300	YET-1600
Valid width	500mm	1000mm	1300mm	1600mm
Mechanical speed	5-30m/min	5-150m/min	5-180m/min	5-180m/min
Coating average degree	±0.015mm
Rewinding edge smooth	±2mm
Total mechanical speed	5-25HP	20-45HP	30-80HP	40-100HP
Oven length	design upon the request of the customer
Heating	tea/hot blast/thermal oil/electic
Power supply/voltage	380v 50HZ
