Factory direct Surface Mount Package Type sk6812-WWA 5050 SMD LED with IC Inside
- 800000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Black Version WS2811 SK6812 Full Color Diode 5050 RGB SMD IC WS2812B LED Chip
-
Built-in IC chip SK6812 MINI Full Color SMD 3535 RGB led
-
High Quality Full Color Diode IC APA102C 5050 RGB SMD LED CHIP
-
200lm/w 34-36lm 0.2W Specifications High CRI LED Seoul / Epistar Chip 2835 SMD LED Datasheet
Supplier's Choice
-
0.2W 2835 SMD LED Epistar Chip
-
0.2W 60mA 2835 SMD LED Epistar Chip
Product Details
| Model Number | SK6812-WWA | Chip Material | InGaN | |
| Emitting Color | Other, WWA | Luminous Intensity | . | |
| Luminous Flux(lm) | high lumen | Optical Attenuation(%) | 0.3 | |
| Power | Other, 0.2W | Power Dissipation | 200 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | WWA | |
| Operating Temperature(℃) | -30, +85 | Storage Temperature(℃) | -40, +100 | |
| Place of Origin | Guangdong, China | Brand Name | SHINING | |
| Certification | CE |

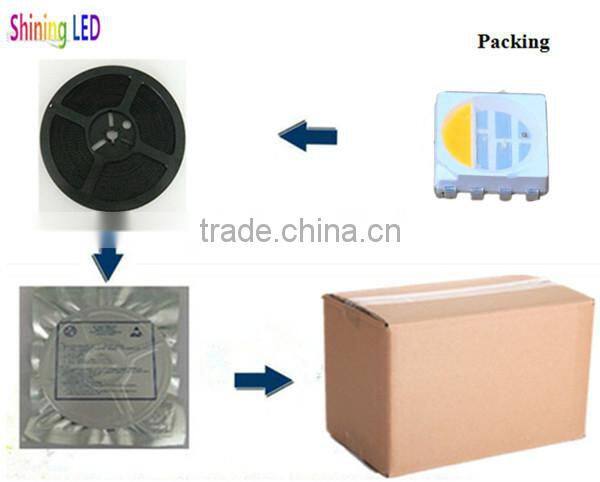

1000 pcs/reel.
Product Description

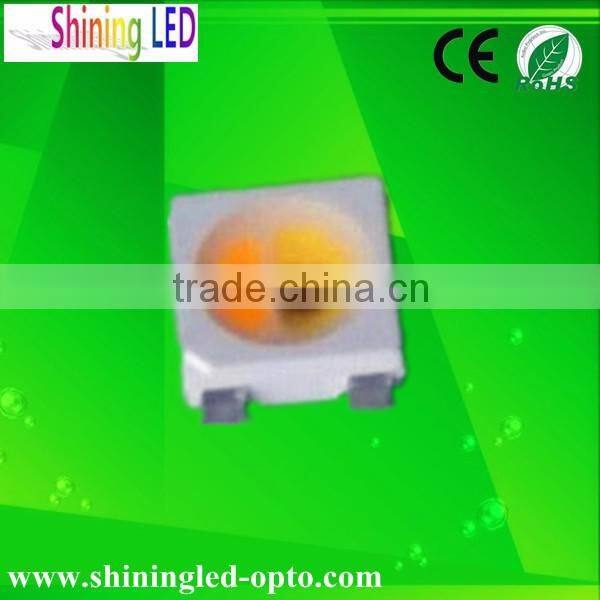

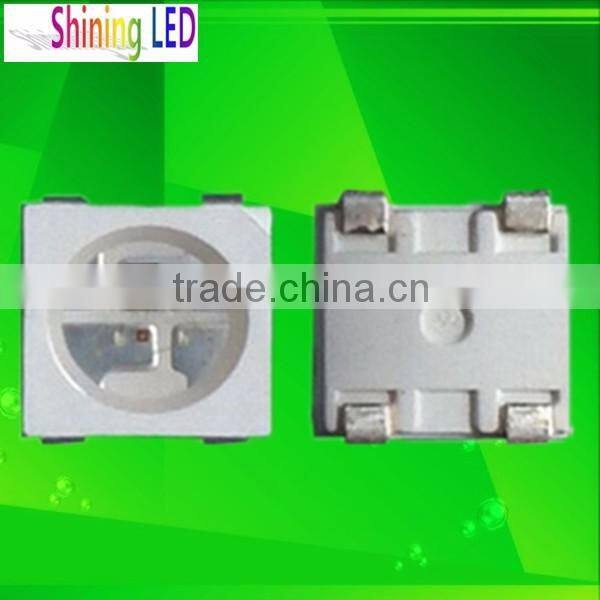

Factory direct Surface Mount Package Type sk6812-WWA 5050 SMD LED with IC Inside
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
0603 | Red | 63-210mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-210mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-260mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-820mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-210mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
0805 | Red | 63-200mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-200mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-250mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-810mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-250mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
1206 | Red | 63-200mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-200mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-250mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-810mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-200mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
5630/5730 | Red | 20-25lm | 120° | 625-630nm | 1.8-2.4V | 150mA |
Yellow | 22-27lm | 568-575nm | 2.0-2.5V | |||
Amber (Orange) | 22-27lm | 600-610nm | 2.0-2.5V | |||
Blue | 11-20lm | 460-475nm | 3.0-3.4V | |||
Green | 10-50lm | 505-530nm | 3.0-3.4V | |||
White | 50-70lm | 3500-25000K | 3.0-3.6V | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
3528 | Red | 100-750mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Green | 20-850mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-300mcd | 460-476m | 3.0-3.4 | |||
White | 6-9lm | 3500-25000K | 3.0-3.4 | |||
3528 RGB | Red | 100-750mcd | 625-630nm | 1.8-2.4V | ||
Green | 20-850mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-300mcd | 460-476m | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength /CCT | Voltage | Current |
5050 | Red | 500-2000mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
yellow | 400-2000mcd | 568-575nm | 2.0-2.5V | |||
Amber (Orange) | 500-2000mcd | 600-610nm | 2.0-2.5V | |||
Blue | 800-2500mcd | 460-475nm | 3.0-3.4V | |||
Green | 400-4500mcd | 505-530nm | 3.0-3.4V | |||
white | 18-30lm | 3500-25000K | 3.0-3.4V | |||
5050RGB | R: 500-2000mcd | 625-630nm | 1.8-2.4V | |||
G: 1500-4500mcd | 505-530nm | 3.0-3.4V | ||||
B: 800-2500mcd | 460-475nm | 3.0-3.4V |
Competitive Advantages of our LEDs:
- Good quality guarantee, 50000 hours lifespan, 2 years warranty.
- Professional engineers and experienced workers.
- Short delivery time, normally only 2-6 working days.
- Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
- Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
Our Services:
- Reply your inquiry in 24 working hours
- Well-trained and experienced staffs to answer all your inquiries in fluent English.
- Strict quality control procedures before shipment.
- Customized design is available.OME and ODM are welcomed
- Delivery the goods to our customer all over the world with speed and precision.
Note:
All the listed price is only for reference, for latest price please contact us directly:
Contact Us:
- Name: Alice Qin
- Email: alice.qin88 (at)
- Mobile: +86 13378401907
- Skype: live:alice_qin88
- Whatsapp: +0086 13378401907
- QQ: 3038753601
Company Profile
Competitive quality LED products with best price. Strong R&D and production capability. Shining LED promises to offer best service for customers.
